Branson 3515H

The Branson 3515H is a tractor produced by Branson. It is equipped with a 104.6 ci 1.7 L engine. The listed engine power is Diesel (listed): 35 hp / 26.1 kW. Transmission: infinite forward and reverse. Operating weight: 3014 lbs 1367 kg.

Overview

	2016 - 2023 15 SeriesCompact Utility tractor
2016 - 2023
15 Series
Compact Utility tractor

Production
Manufacturer	Branson (a part of Kukje)
Compact Utility tractor
Built in South Korea

Variants
3515R	shuttle
3515H	hydrostatic
3515C	cab

Branson 3515H Engine
Kukje 1.7L 3-cyl diesel
Fuel tank	7 gal 26.5 L
Engine details ...

Branson 3515H Transmission
hydrostatic
Transmission details ...

Branson 3515H Power
Engine	35 hp 26.1 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS.

Hydraulics
Pump flow	8.7 gpm 32.9 lpm
Steering flow	4.7 gpm 17.8 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	3306 lbs 1499 kg
Rear lift (at 24"/610mm)	2420 lbs 1097 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E

Dimensions & Tires
Wheelbase	65.8 inches 167 cm
Weight	3014 lbs 1367 kg
Front tire	7x16
Rear tire	12.4x24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
15 Series published in 2019, by Branson

Engine

Engine Detail — 104.6 ci / 1.7 L Diesel

Manufacturer	Kukje A1700N4
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	104.6 ci 1.7 L
Bore/Stroke	3.46x3.70 inches 88 x 94 mm
Emissions	Tier 4
Power	35 hp 26.1 kW
Air cleaner	dry
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Branson 3515H Tires
Ag front	7x16
Ag rear	12.4x24
Industrial front	28x8.50-15
Industrial rear	43x16-20

Dimensions
Wheelbase	65.8 inches 167 cm
Length	118 inches 299 cm
Width	57 inches 144 cm
Height (ROPS)	94 inches 238 cm
Height (Folded ROPS)	60 inches 152 cm
Weight	3014 lbs 1367 kg
Ground clearance	12 inches 30 cm

Photos

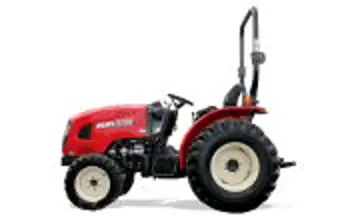

Branson 3515H tractor photo
