Branson 4720CH

The Branson 4720CH is a tractor produced by Branson. It is equipped with a 139.5 ci 2.3 L engine. The listed engine power is Diesel (listed): 47 hp / 35.0 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1230 lbs*Without bucket 557 kg.

Overview

	2016 - 2020 20 SeriesCompact Utility tractor
2016 - 2020
20 Series
Compact Utility tractor

Production
Manufacturer	Branson (a part of Kukje)
Compact Utility tractor
Built in South Korea

Branson 4720CH Engine
Kukje 2.3L 4-cyl diesel
Fuel tank	9.3 gal 35.2 L
Engine details ...

Branson 4720CH Transmission
hydrostatic
Transmission details ...

Branson 4720CH Power
Engine	47 hp 35.0 kW
PTO (claimed)	42 hp 31.3 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Pump flow	10.4 gpm 39.4 lpm
Steering flow	5 gpm 18.9 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift	3306 lbs 1499 kg
Rear Arms	telescopic lower links

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E

Dimensions & Tires
Wheelbase	70.9 inches 180 cm
Weight	4442 lbs 2014 kg
Front tire	7x16
Rear tire	12.4x24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	70
Battery volts	12

References
20 Series Tractors published in 2015, by Branson
20 Series Tractors published in 2018, by Branson

Engine

Engine Detail — 139.5 ci / 2.3 L Diesel

Manufacturer	Kukje A2300N2
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	139.5 ci 2.3 L
Bore/Stroke	3.46x3.70 inches 88 x 94 mm
Power	47 hp 35.0 kW
Air cleaner	dry dual element
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

Branson 4720CH Tires
Standard tires (ag)	Front: 7x16. Rear: 12.4x24
	Front: 9.5x16. Rear: 12.4x28
	Front: 9.5x16. Rear: 14.9x24
Lawn/turf front	27x8.5x15
	29x12.5x15
Lawn/turf rear	41x14x20
	44x18x20
Industrial front	28x8.50-15
	10x16.5
	12x16.5
Industrial rear	43x16-20
	420/70x24
	16.9x24

Dimensions
Wheelbase	70.9 inches 180 cm
Length	130.6 inches 331 cm
Height (cab)	93 inches 236 cm
Weight	4442 lbs 2014 kg
Ground clearance	13.1 inches 33 cm
Front tread	50.5 inches 128 cm
Rear tread	43.6 to 60 inches 110 to 152 cm

Attachments

Attachment overview
Front-end loader
Backhoe

Branson BH860 Backhoe
Backhoe type	Branson BH860 Backhoe
Weight	1500 lbs*Without bucket 680 kg
Transport height	91.2 inches 231 cm
Bucket width	16 inches 40 cm
Digging depth	103.2 inches 262 cm
Reach from pivot	134.4 inches 341 cm
Loading height	92.4 inches 234 cm
Bucket Rotation	151°
Swing Arc	180°
Bucket force	4435 lbs 2011 kg
Dipperstick force	2694 lbs 1221 kg

Branson K710 Backhoe
Backhoe type	Branson K710 Backhoe
Weight	1230 lbs*Without bucket 557 kg
Transport height	119 inches 302 cm
Bucket width	16 inches 40 cm
Digging depth	94 inches 238 cm
Reach from pivot	127 inches 322 cm
Loading height	51 inches 129 cm
Bucket Rotation	175°
Swing Arc	180°
Bucket force	3190 lbs 1446 kg
Dipperstick force	1980 lbs 898 kg

Photos

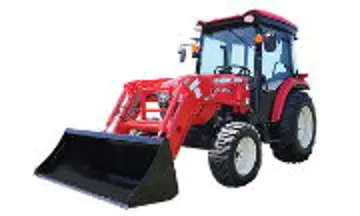

Branson 4720CH tractor photo
