CaseIH 1255 XL

The CaseIH 1255 XL is a tractor produced by Caseih. It is equipped with a 358 ci 5.9 L engine. The rated power output is 125 hp 93.2 kW. Transmission: 20 forward and 9 reverse. Operating weight: 11155 to 12521 pounds.

Overview

	1985 - 1994 55 SeriesRow-Crop tractor
1985 - 1994
55 Series
Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Neuss, Germany

CaseIH 1255 XL Engine
International Harvester 5.9L 6-cyl diesel
Engine details ...

CaseIH 1255 XL Power
Engine	125 hp 93.2 kW

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power

Capacity
Fuel	52.8 gal 199.8 L
Front axle	9.5 qts 9.0 L

Hydraulics
Pressure	2488 psi 171.5 bar
Valves	up to 2
Pump flow	11 gpm 41.6 lpm

Tractor hitch
Rear Type	III/II
Control	position and draft control
Rear lift	10580 lbs 4799 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	110.2 inches 279 cm
Weight	11155 to 12521 pounds
Front tire	7.50-20
Rear tire	18.9R38 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	55
Battery volts	12

References
1255XL 1455XL published by CaseIH
55 Series published by CaseIH

Engine

Engine Detail — 358 ci / 5.9 L Diesel

Manufacturer	International Harvester DT-358
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	358 ci 5.9 L
Bore/Stroke	3.875x5.0625 inches 98 x 129 mm
Power	125 hp 93.2 kW
Fuel system	direct injection
Rated RPM	2200
Torque	336 lb-ft 455.6 Nm
Torque RPM	1600
Starter	electric
Starter volts	12
Oil capacity	13.2 qts 12.5 L
Coolant capacity	33.8 qts 32.0 L

Transmission

Transmission options
12-speed fully synchronized
20-speed fully synchronized

Transmission — 12 forward and 5 reverse fully synchronized

Type	fully synchronized
Gears	12 forward and 5 reverse
Oil capacity	35.9 qts (2WD) 34.0 L
	42.3 qts (4WD) 40.0 L
Six gears (1-6) in two ranges (low/high), plus reverse range.

Transmission — 20 forward and 9 reverse fully synchronized

Type	fully synchronized
Gears	20 forward and 9 reverse

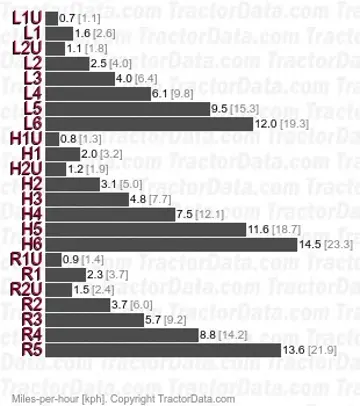

Six gears (1-6) in two ranges (low/high), plus reverse range with a underdrive for gears 1 and 2 in both ranges.

Dimensions

CaseIH 1255 XL Tires
Standard tires (ag)	Front: 7.50-20. Rear: 18.9R38 (2WD)
	Front: 13.6R28. Rear: 18.4R38 (4WD)

Dimensions
Wheelbase	110.2 inches 279 cm
Length	189 inches 480 cm
Height (cab)	115.7 inches 293 cm
2WD Weight	11155 lbs 5059 kg
4WD Weight	12521 lbs 5679 kg
2WD Clearance (front axle)	20.5 inches 52 cm
4WD Clearance (front axle)	18.5 inches 46 cm
2WD Front tread	59.8 to 71.6 inches 151 to 181 cm
4WD Front tread	68.5 to 76.4 inches 173 to 194 cm
Rear tread	71.6 to 83.6 inches 181 to 212 cm
