CaseIH MX100C
The CaseIH MX100C is a tractor produced by Caseih. It is equipped with a 243.5 ci 4.0 L engine. The listed engine power is Diesel (listed): 100 hp / 74.6 kW. Transmission: 32 forward and 24 reverse. Operating weight: 10,472 lbs 4750 kg.
Engine Power
Diesel (listed): 100 hp / 74.6 kW
Fuel & Capacities
50 gal
189.2 L
Transmission
32 forward and 24 reverse
Operating Weight
10,472 lbs
4750 kg
Overview
 | 1998 - 2002
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | CaseIH |
Utility tractor | |
Built in Doncaster, England | |
Original price | $51,000 (1999) |
CaseIH MX100C Engine | |
|---|---|
Perkins 4.0L 4-cyl diesel | |
Engine details ...  |
CaseIH MX100C Power | |
|---|---|
Engine | 100 hp
74.6 kW |
PTO (claimed) | 83 hp
61.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
Cab standard. | |
Capacity | |
|---|---|
Fuel | 50 gal
189.2 L |
Hydraulic system | 17.5 gal
66.2 L |
Hydraulics | |
|---|---|
Type | closed center pressure-flow compensating (PFC) |
Capacity | 17.5 gal
66.2 L |
Pressure | 2950 psi
203.4 bar |
Valves | 2 to 4 |
Pump flow | 25 gpm
94.6 lpm |
Total flow | 28.9 gpm
109.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | electronic lower link |
Rear lift (at 24"/610mm) | 8,393 lbs
3807 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electrically-actuated wet disc |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1875 |
1000@2210 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 95.4 inches
242 cm |
Weight | 10,472 lbs
4750 kg |
Front tire | 14.9R-24 |
Rear tire | 18.4R-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
Charging volts | 12 |
Batteries | 2 |
Battery CCA | 700 |
Battery volts | 12 |
References | |
|---|---|
 | |
MX Series Tractors published in 1998, by CaseIH |
Engine
Engine Detail — 243.5 ci / 4.0 L Diesel
Manufacturer | Perkins |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 243.5 ci
4.0 L |
Bore/Stroke | 3.937x5.00 inches
100 x 127 mm |
Power | 100 hp
74.6 kW |
Fuel system | direct-injection with mechanical governor, rotary injection pump with 5-hole nozzles |
Air cleaner | dual paper elements |
Compression | 17.25:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Oil capacity | 9.3 qts
8.8 L |
Coolant capacity | 16.6 qts
15.7 L |
CaseIH MX100C Engine | |
|---|---|
 |
Transmission
Transmission options | |
|---|---|
16-speed partial power shift | |
32-speed creeper |

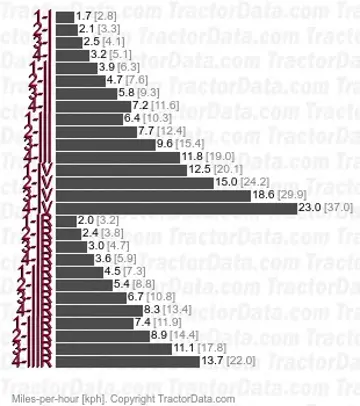

Transmission — 16 forward and 12 reverse partial power shift
Type | partial power shift |
Gears | 16 forward and 12 reverse |
Clutch | hydraulic wet discs |
Four power shift speeds (1-4) in four synchronized ranges (I-IV) with power shuttle. Three ranges in reverse. | |
 | |
Transmission | |
Type | creeper |
Gears | 32 forward and 24 reverse |
Dimensions
CaseIH MX100C Tires | |
|---|---|
Ag front | 14.9R-24 |
Ag rear | 18.4R-34 |
Dimensions | |
|---|---|
Wheelbase | 95.4 inches
242 cm |
Length | 170.6 inches
433 cm |
Height (cab) | 110.3 inches
280 cm |
Shipping weight | 10,472 lbs
4750 kg |
Photos
CaseIH MX100C tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Caseih MX100C based on its 100 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih MX100C.
Estimated Continuous Field Runtime: 9.6 hrs
Approximately 9.6 hours of continuous field operation at ~75% rated power on a full tank (50 gal / 189.3 L).
Estimated 75% Load Fuel Burn~5.2 gal/hr (19.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Caseih MX100C Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih MX100C.
Converted Equivalents:
Horsepower (HP)100 hp
Kilowatts (kW)74.6 kW
Metric Horsepower (PS / CV)101.4 PS
Direct Competitor Comparison
Compare CaseIH MX100C against same-era industry alternatives in the same horsepower class.
Current Model
Caseih
CaseIH MX100C
Engine Power:Diesel (listed): 100 hp / 74.6 kW
★ Baseline Reference
