CaseIH 2294

The CaseIH 2294 is a tractor produced by Caseih. It is equipped with a 504 ci 8.3 L engine. The rated power output is 154 hp 114.8 kW. Transmission: 12 forward and 3 reverse. Operating weight: 11070 to 14390 pounds.

Overview

	1984 - 1988 Row-Crop tractor
1984 - 1988
Row-Crop tractor

Series map: 22942394154.0hp197.0hp2294↓ 1984

Note: the CaseIH model 2294 is the same as the J.I. Case 2294. The following data is from the 2294 listing.

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA

CaseIH 2294 Engine
Case 8.3L 6-cyl diesel
Engine details ...

CaseIH 2294 Transmission
12-speed three-speed power shift
Transmission details ...

CaseIH 2294 Power
Engine	154 hp 114.8 kW
Drawbar (claimed)	116 hp 86.5 kW
PTO (claimed)	130 hp 96.9 kW
Drawbar (tested)	115.35 hp 86.0 kW
PTO (tested)	131.97 hp 98.4 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Four-post ROPS. Silent Guardian cab optional with air-conditioning.

Capacity
Fuel	65 gal 246.0 L
	25 gal*Optional auxiliary tank 94.6 L
Hydraulic system	25 gal 94.6 L

Hydraulics
Type	closed center
Capacity	25 gal 94.6 L
Pressure	2250 psi 155.1 bar
Valves	2 to 4 *3 only with 4WD
Pump flow	23 gpm 87.1 lpm
Steering flow	8 gpm 30.3 lpm
Steering press.	2000 psi 137.9 bar

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	6600 lbs 2993 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	104 inches 264 cm
	110 inches*Optional long wheelbase. 279 cm
Weight	11070 to 14390 pounds
Front tire	11.00x16
Rear tire	18.4-38 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	72
	105 OptOptional
Battery volts	12

References
2 Wheel Drive and Mechanical Front Drive Tractors published in 1987, by CaseIH
1985 Farm Equipment Buyer's Guide published by CaseIH

Engine

Series map: 22942394154.0hp197.0hp2294↓ 1984

Note: the CaseIH model 2294 is the same as the J.I. Case 2294. The following data is from the 2294 listing.

Engine Detail — 504 ci / 8.3 L Diesel

Manufacturer	Case
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Power	154 hp 114.8 kW
Compression	15.8:1
Rated RPM	2100
Starter volts	12
Oil capacity	24 qts 22.7 L
Coolant capacity	38 qts 36.0 L

Transmission

Series map: 22942394154.0hp197.0hp2294↓ 1984

Note: the CaseIH model 2294 is the same as the J.I. Case 2294. The following data is from the 2294 listing.

Transmission — 12 forward and 3 reverse three-speed power shift

Type	three-speed power shift
Gears	12 forward and 3 reverse
Oil capacity	100 qts 94.6 L

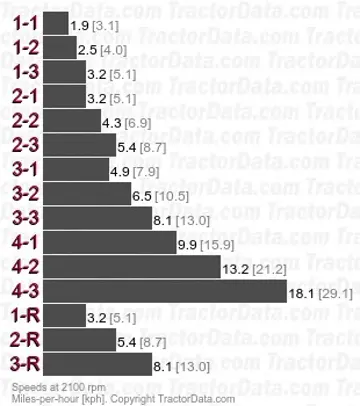

Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.
With 18.4x38 rear tires.

Dimensions

Series map: 22942394154.0hp197.0hp2294↓ 1984

Note: the CaseIH model 2294 is the same as the J.I. Case 2294. The following data is from the 2294 listing.

CaseIH 2294 Tires
Standard tires (ag)	Front: 11.00x16. Rear: 18.4-38 (2WD)
	Front: 14.9-28. Rear: 18.4-38 (4WD)
Ag rear	23.1x34
	16.9x38
	20.8x38

Dimensions
Wheelbase	104 inches 264 cm
	110 inches*Optional long wheelbase. 279 cm
Bar rear axle	3.5 by 96 inches 88 by 2438 mm
Bar rear axle	3.5 by 120 inches 88 by 3048 mm
Rear tread	60 to 88 inches 152 to 223 cm
Rear tread	60 to 112 inches 152 to 284 cm

CaseIH 2294 Weight
Shipping	11070 lbs 5021 kg
Operating	14390 lbs 6527 kg
Max capacity	16600 lbs 7529 kg

Tests

Series map: 22942394154.0hp197.0hp2294↓ 1984

Note: the CaseIH model 2294 is the same as the J.I. Case 2294. The following data is from the 2294 listing.

Nebraska Tractor Test 1526
Diesel 12 speed 2WD June 1 - 12, 1984 Link: Nebraska Tractor Test 1526 file
PTO performance
Power at rated engine speed	131.97 hp 98.4 kW
Fuel use	8.9 gal/hour 33.7 l/hour
Drawbar performance
Max power	115.35 hp 86.0 kW
Fuel use	8.8 gal/hour 33.3 l/hour
Gear 3-2 used for power test.
Max pull	13,017 lbs 5904 kg
Gear 2-1 used for pull test.

Photos

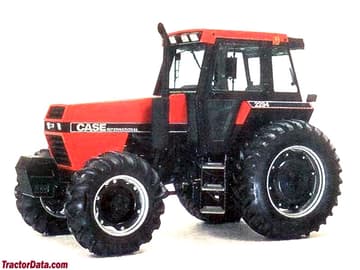

Case IH 2294 marketing photo, left side.
