CaseIH 3594

The CaseIH 3594 is a tractor produced by Caseih. It is equipped with a 504 ci 8.3 L engine. The rated power output is 182.27 hp 135.9 kW. Transmission: 12 forward and 3 reverse. Operating weight: 17590 lbs 7978 kg.

Overview

	1985 - 1988 Row-Crop tractor
1985 - 1988
Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $75,000 in 1987

CaseIH 3594 Engine
Case 8.3L 6-cyl diesel
Engine details ...

CaseIH 3594 Power
PTO (claimed)	182 hp 135.7 kW
Drawbar (tested)	160.39 hp 119.6 kW
PTO (tested)	182.27 hp 135.9 kW
Performance test details ...

Mechanical
Four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Cab standard

Capacity
Fuel	85 gal 321.7 L
Hydraulic system	33.25 gal 125.9 L

Hydraulics
Type	closed center
Capacity	33.25 gal 125.9 L
Pressure	2250 psi 155.1 bar
Valves	2 to 4
Pump flow	30 gpm 113.6 lpm

Tractor hitch
Rear Type	III
Rear lift (at 24"/610mm)	7750 lbs 3515 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	116 inches 294 cm
Weight	17590 lbs 7978 kg
Front tire	16.9-26
Rear tire	24.5R-32
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	105

References
2 Wheel Drive and Mechanical Front Drive Tractors published in 1987, by CaseIH

Engine

Engine Detail — 504 ci / 8.3 L Diesel

Manufacturer	Case
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Air cleaner	dual paper elements
Compression	15.8:1
Rated RPM	2100
Starter volts	12

Transmission

Transmission options
24-speed partial power shift
12-speed partial power shift

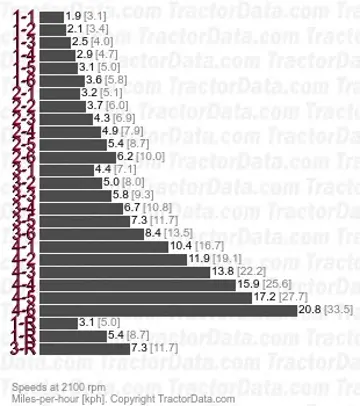

Transmission — 24 forward and 3 reverse partial power shift

Type	partial power shift
Gears	24 forward and 3 reverse
Oil capacity	133 qts 125.9 L
Four ranges with six power shift gears in each range.
With 20.8x38 rear tires.

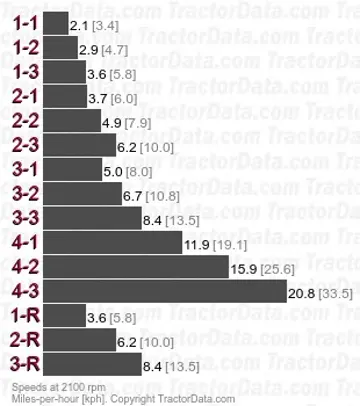

Transmission — 12 forward and 3 reverse partial power shift

Type	partial power shift
Gears	12 forward and 3 reverse
Oil capacity	133 qts 125.9 L
Four ranges with three power shift gears in each range.
With 20.8x38 rear tires.

Dimensions

CaseIH 3594 Tires
Ag front	16.9-26
Ag rear	24.5R-32

Dimensions
Wheelbase	116 inches 294 cm
Length	192.5 inches 488 cm
Width	60 inches 152 cm
Height (cab)	120 inches 304 cm
Operating weight	17590 lbs 7978 kg
Ballasted weight	20500 lbs 9298 kg
Ground clearance	18 inches 45 cm

Tests

Nebraska Tractor Test 1584
Diesel 24-speed 4WD October 16 - 31, 1985 Link: Nebraska Tractor Test 1584 file
PTO performance
Power at rated engine speed	182.27 hp 135.9 kW
Fuel use	11.8 gal/hour 44.7 l/hour
Drawbar performance
Max power	160.39 hp 119.6 kW
Fuel use	11.7 gal/hour 44.3 l/hour
Gear 16 used for power test.
Max pull	20384 lbs 9246 kg
Gear 1-4 used for pull test.

Photos

CaseIH 3594 tractor photo
