CaseIH 4240

The CaseIH 4240 is a tractor produced by Caseih. It is equipped with a 268 ci 4.4 L engine. The rated power output is 99 hp 73.8 kW. Transmission: 16 forward and 8 reverse. Operating weight: 6687 to 7395 pounds.

Overview

	1994 - 1997 4200 Utility SeriesUtility tractor
1994 - 1997
4200 Utility Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Doncaster, England
Original price was $32,000 in 1997

CaseIH 4240 Engine
Case 4.4L 4-cyl diesel
Engine details ...

CaseIH 4240 Power
Engine (gross)	104 hp 77.6 kW
Engine (net)	99 hp 73.8 kW
PTO (claimed)	85 hp 63.4 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
ROPS Differential lock	mechanical
Cab Differential lock	electro-hydraulic
Steering	hydrostatic power
Hydraulic wet disc brakes
Two-post ROPS. Cab optional.

Capacity
Fuel	20 gal (ROPS) 75.7 L
	29.6 gal (cab) 112.0 L
2WD Hydraulic system	9 gal 34.1 L
Cab Hydraulic system	9.7 gal 36.7 L

Hydraulics
Type	open center
2WD Capacity	9 gal 34.1 L
Cab Capacity	9.7 gal 36.7 L
Pressure	2500 psi 172.4 bar
Valves	0 to 3
Total flow	16.1 gpm 60.9 lpm
	18.4 gpmOptOptional 69.6 lpm

Tractor hitch
Rear Type	II
Control	draft and position control
Rear lift	3665 lbs 1662 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540 (1.375)
	540/1000 (1.375)OptOptional

Dimensions & Tires
2WD Wheelbase	88.7 inches 225 cm
4WD Wheelbase	88 inches 223 cm
Weight	6687 to 7395 pounds
Front tire	7.50-16
2WD Rear tire	16.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
	65 (cab, ROPS opt.)
Battery CCA	650
	810 OptOptional
Battery volts	12

References
New 3200 and 4200 Series Tractors published in 1994, by Case IH
3200/4200 Series Tractors published in 1994, by Case IH

Engine

Engine Detail — 268 ci / 4.4 L Diesel

Manufacturer	Case DT268
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	268 ci 4.4 L
Power (net)	99 hp 73.8 kW
Power (gross)	104 hp 77.6 kW
Air cleaner	dry
Pre-heating	thermostart (optional)
	ether (optional)
Rated RPM	2400
Starter volts	12
Oil capacity	10.4 qts 9.8 L
Oil change	100 h
Coolant capacity	14.5 qts 13.7 L

Transmission

Transmission options
8-speed synchromesh
8-speed shuttle
16-speed partial power shift
16-speed synchromesh creeper

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Clutch	12-inch dry cerametallic
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse range.
With 18.4x30 rear tires.

Transmission — 8 forward and reverse shuttle

Type	shuttle
Gears	8 forward and reverse
Clutch	12-inch dry cerametallic
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
With 18.4x30 rear tires.

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Clutch	12-inch dry cerametallic
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.
With 18.4x30 rear tires.

Transmission — 16 forward and 8 reverse synchromesh creeper

Type	synchromesh creeper
Gears	16 forward and 8 reverse
Clutch	12-inch dry cerametallic
2WD Oil capacity	35.9 qts 34.0 L
4WD Oil capacity	38.6 qts 36.5 L
Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.
With With 18.4x30 rear tires. Speeds in direct mode same as regular synchromesh transmission.

Dimensions

CaseIH 4240 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 16.9-28
4WD Standard tires (ag)	Front: 8.3-24. Rear: 16.9-28

Dimensions
2WD Wheelbase	88.7 inches 225 cm
4WD Wheelbase	88 inches 223 cm
Front tread	52 to 77 inches 132 to 195 cm (2WD straight)
Front tread	48 to 80 inches 121 to 203 cm (2WD sweptback)
Front tread	52 to 80 inches 132 to 203 cm (2WD low)
Front tread	52 to 77 inches 132 to 195 cm (2WD low-low)
Front tread	88 to 96 inches 223 to 243 cm (tobacco)

CaseIH 4240 Weight
2WD ROPS Shipping	6687 lbs 3033 kg
2WD ROPS Shipping	7395 lbs 3354 kg
ROPS Max capacity	10150 lbs 4604 kg
Cab Max capacity	12125 lbs 5499 kg

Photos

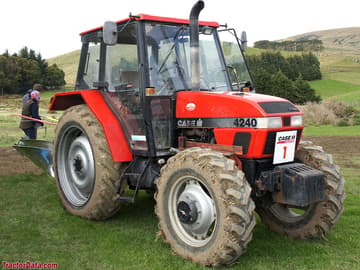

CaseIH 4240
