CaseIH 745 XL
The CaseIH 745 XL is a tractor produced by Caseih. It is equipped with a 239 ci 3.9 L engine. The rated power output is 72 hp 53.7 kW. Transmission: IH-Total-synchron. Operating weight: 7981 to 8664 pounds.
Engine Power
72 hp
53.7 kW
Fuel & Capacities
Diesel
Transmission
IH-Total-synchron
Operating Weight
7981 to 8664 pounds
Caseih 745 XL Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1985 - 1990
Utility tractor |
|---|---|
1985 - 1990 | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | CaseIH |
Utility tractor | |
Built in Neuss, Germany | |
CaseIH 745 XL Engine | |
|---|---|
International Harvester 3.9L 4-cyl diesel | |
Engine details ...  |
CaseIH 745 XL Power | |
|---|---|
Engine | 72 hp
53.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Cab standard with heat. | |
Hydraulics | |
|---|---|
Pressure | 2538 psi
175.0 bar |
Valves | up to 3 |
Pump flow | 8.7 gpm
32.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | lower link draft sensing |
Rear lift | 6947 lbs
3151 kg |
8835 lbs (optional)
4007 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
540/1000 (optional 4WD) | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 94.1 inches
239 cm |
4WD Wheelbase | 92.5 inches
234 cm |
Weight | 7981 to 8664 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 55 |
Battery volts | 12 |
Engine
Engine Detail — 239 ci / 3.9 L Diesel
Manufacturer | International Harvester D-239 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 239 ci
3.9 L |
Bore/Stroke | 3.875x5.06 inches
98 x 129 mm |
Power | 72 hp
53.7 kW |
Fuel system | direct injection |
Rated RPM | 2300 |
Torque | 185.1 lb-ft
251.0 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 9.5 qts
9.0 L |
Oil change | 200 h |
Transmission
Transmission options | |
|---|---|
16-speed | |
8-speed |

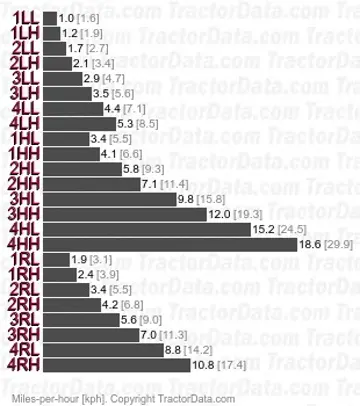

Transmission — IH-Total-synchron
Transmission | IH-Total-synchron |
Gears | 16 forward and 8 reverse |
With 16.9R34 rear tires. | |
 | |
Transmission — 8 forward and 4 reverse
Gears | 8 forward and 4 reverse |
Dimensions
CaseIH 745 XL Tires |
|---|
Dimensions | |
|---|---|
2WD Wheelbase | 94.1 inches
239 cm |
4WD Wheelbase | 92.5 inches
234 cm |
2WD Length | 153.2 inches
389 cm |
4WD Length | 156.3 inches
397 cm |
Width | 80.7 inches
204 cm |
Height (cab) | 106.2 inches
269 cm |
102.1 inches (low cab)
259 cm | |
2WD Weight | 7981 lbs
3620 kg |
4WD Weight | 8664 lbs
3929 kg |
2WD Clearance (front axle) | 19.1 inches
48 cm |
4WD Clearance (front axle) | 15.9 inches
40 cm |
Front tread | 52.9 to 73.1 inches
134 to 185 cm (2WD) |
Front tread | 62.1 to 71.2 inches
157 to 180 cm (4WD) |
Rear tread | 58 to 77.7 inches
147 to 197 cm |
Photos
CaseIH 745 XL tractor photo
