CaseIH 995

The CaseIH 995 is a tractor produced by Caseih. It is equipped with a 268 ci 4.4 L engine. The rated power output is 99 hp 73.8 kW. Transmission: 16 forward and 8 reverse. Operating weight: 6065 to 7223 pounds.

Engine Power
99 hp 73.8 kW
Fuel & Capacities
20 gal 75.7 L
Transmission
16 forward and 8 reverse
Operating Weight
6065 to 7223 pounds

Caseih 995 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

CaseIH 995 tractor photo
1991 - 1994 95 Utility SeriesUtility tractor
1991 - 1994
95 Utility Series
Utility tractor
Production
Manufacturer
CaseIH
Utility tractor
Built in Doncaster, England
Original price was $30,000 in 1994
CaseIH 995 Engine
Case IH 4.4L 4-cyl diesel
Engine details ...
CaseIH 995 Power
Engine (gross)
104 hp 77.6 kW
Engine (net)
99 hp 73.8 kW
PTO (claimed)
85 hp 63.4 kW
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post ROPS.
Capacity
Fuel
20 gal 75.7 L
Hydraulic system
9 gal 34.1 L
Hydraulics
Type
open center
Capacity
9 gal 34.1 L
Valves
1
Pump flow
15.8 gpm 59.8 lpm
18.1 gpmOptOptional 68.5 lpm
Tractor hitch
Rear Type
II
Rear lift
3665 lbs 1662 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
88.7 inches 225 cm
Weight
6065 to 7223 pounds
Front tire
7.50-16
Rear tire
14.9R24
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Battery volts
12
References
995 references literature
95 Series Tractors published in 1990, by CaseIH

Engine

Engine Detail — 268 ci / 4.4 L Diesel

Manufacturer
Case IH D268
Configuration
turbocharged diesel, 4-cylinder, liquid-cooled
Displacement
268 ci 4.4 L
Bore/Stroke
3.94x5.51 inches 100 x 140 mm
Power (net)
99 hp 73.8 kW
Power (gross)
104 hp 77.6 kW
Rated RPM
2400
Starter volts
12
Oil capacity
10.4 qts 9.8 L
Coolant capacity
14.5 qts 13.7 L

Transmission

Transmission options
8-speed partially synchronized
16-speed partial power shift
8-speed synchronized shuttle
16-speed creeper

Transmission — 8 forward and 4 reverse partially synchronized

Type
partially synchronized
Gears
8 forward and 4 reverse
Clutch
dry disc
Oil capacity
36 qts 34.1 L
Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.
With 18.4x30 rear tires.
995 partially synchronized speeds

Transmission — 16 forward and 8 reverse partial power shift

Type
partial power shift
Gears
16 forward and 8 reverse
Oil capacity
36 qts 34.1 L
Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.
With 18.4x30 rear tires.

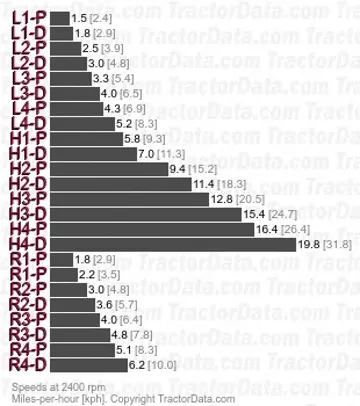

995 partial power shift speeds

Transmission — 8 forward and reverse synchronized shuttle

Type
synchronized shuttle
Gears
8 forward and reverse
Oil capacity
36 qts 34.1 L
Four gears each in high and low ranges, both forward and reverse.
With 18.4x30 rear tires.

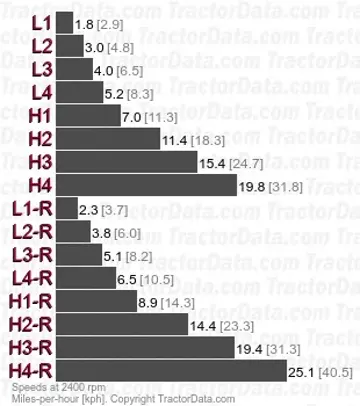

995 synchronized shuttle speeds

Transmission — 16 forward and 8 reverse creeper

Type
creeper
Gears
16 forward and 8 reverse
Four gears with high, low, and reverse ranges plus direct or creeper mode.

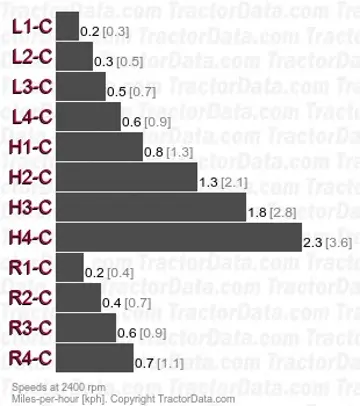

995 creeper speeds

Dimensions

CaseIH 995 Tires
Ag front
7.50-16
Ag rear
14.9R24
Dimensions
Wheelbase
88.7 inches 225 cm
Length
142 inches 360 cm
Width
78 inches*Width at minimum tread. 198 cm
Height (ROPS)
97.4 inches 247 cm
2WD Shipping weight
6065 lbs 2751 kg
4WD Shipping weight
7223 lbs 3276 kg
2WD Clearance (front axle)
22 inches 55 cm
4WD Clearance (front axle)
15.5 inches 39 cm

Attachments

Attachment overview
Case IH 2250 loader
Case IH 2255 loader

Photos

CaseIH 995 tractor photo

CaseIH 995 tractor photo

Related models
