CaseIH Farmall 130A

The CaseIH Farmall 130A is a tractor produced by Caseih. It is equipped with a 273.7 ci 4.5 L engine. The listed engine power is Diesel (listed): 130 hp / 96.9 kW. Transmission: Hi-Lo. Operating weight: 9660 to 10605 pounds.

Engine Power

Diesel (listed): 130 hp / 96.9 kW

Fuel & Capacities

56.8 gal 215.0 L

Transmission

Hi-Lo

Operating Weight

9660 to 10605 pounds

Overview

	2015 - Farmall 100A SeriesUtility tractor
2015 -
Farmall 100A Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Original price	$68,708 (2015 ROPS 2WD )
	$85,006 (2015 Cab 4WD )

CaseIH Farmall 130A Engine
FPT 4.5L 4-cyl diesel
Fuel tank	56.8 gal 215.0 L
Exhaust fluid (DEF)	7.9 gal 29.9 L
Engine details ...

CaseIH Farmall 130A Power
Engine	130 hp 96.9 kW
PTO (claimed)	105 hp 78.3 kW
Drawbar (tested)	94.17 hp 70.2 kW
PTO (tested)	117.69 hp 87.8 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Two-post ROPS. Cab available with air-conditioning.

Hydraulics
Type	open center with closed-center load-sensing remotes
Valves	2 to 4
Pump flow	22 gpm 83.3 lpm

Tractor hitch
Rear Type	II
Control	draft sensing
Rear lift (at 24"/610mm)	7200 lbs 3265 kg

Dimensions & Tires
2WD Wheelbase	95.7 inches 243 cm
4WD Wheelbase	104 inches 264 cm
Weight	9660 to 10605 pounds
Front tire	10.00-16
2WD Rear tire	18.4x34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
Battery volts	12

References

Farmall 110A-140A Tier 4B/Final Tractor Specifications published in 2015, by CaseIH
Farmall Utility Series Tractors published in 2021, by CaseIH

Engine

Engine Detail — 273.7 ci / 4.5 L Diesel

Manufacturer	FPT
Configuration	turbocharged intercooled diesel, 4-cylinder 8-valve, liquid-cooled
Displacement	273.7 ci 4.5 L
Bore/Stroke	4.094x5.197 inches 104 x 132 mm
Emissions	Tier IV
Emission control	selective catalytic reduction
Power	130 hp 96.9 kW
Starter	electric
Starter volts	12
Oil capacity	10.6 qts 10.0 L

Transmission

Transmission options
8-speed power shuttle
8-speed mechanical shuttle
16-speed power shuttle

Transmission — 8 forward and reverse power shuttle

Type	power shuttle
Gears	8 forward and reverse
With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.

Transmission — 8 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	8 forward and reverse

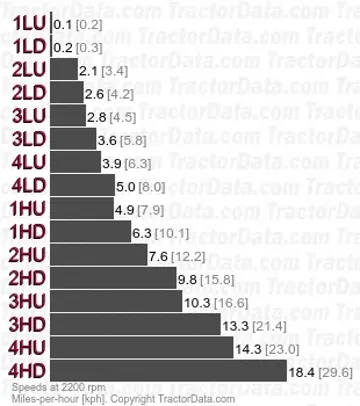

Transmission — Hi-Lo

Transmission	Hi-Lo
Type	power shuttle
Gears	16 forward and 8 reverse

Dimensions

CaseIH Farmall 130A Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 18.4x34
4WD Standard tires (ag)	Front: 14.9x24. Rear: 18.4x34

Dimensions
2WD Wheelbase	95.7 inches 243 cm
4WD Wheelbase	104 inches 264 cm
Width	74.5 inches*Width at fenders 189 cm
Height (ROPS)	117.3 inches 297 cm
Height (cab)	110 inches 279 cm
Flange rear axle
Bar rear axle	3.071 by 98 inches 78 by 2489 mm

CaseIH Farmall 130A Weight
2WD ROPS	9660 lbs 4381 kg
4WD ROPS	10225 lbs 4638 kg
2WD Cab	10040 lbs 4554 kg
4WD Cab	10605 lbs 4810 kg
Ballasted	12700 lbs 5760 kg

Tests

OCED Tractor Test 2158
Diesel 16-speed 4WD September 2 - October 3, 2016 Link: OCED Tractor Test 2158 file
PTO performance
Max power	117.69 hp 87.8 kW
Fuel use	6.7 gal/hour 25.4 l/hour
Power at rated engine speed	115.68 hp 86.3 kW
Fuel use	6.9 gal/hour 26.1 l/hour
Power at rated PTO speed	115.25 hp 85.9 kW
Fuel use	6.4 gal/hour 24.2 l/hour
Drawbar performance
Max power	94.17 hp 70.2 kW
Fuel use	6.9 gal/hour 26.1 l/hour
Max pull	8790 lbs 3987 kg

Photos

Case IH Farmall 130A with L755 front-end loader.

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Farmall 130A based on its 130 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Farmall 130A.

Estimated Continuous Field Runtime: 8.4 hrs

Approximately 8.4 hours of continuous field operation at ~75% rated power on a full tank (56.8 gal / 215 L).

Estimated 75% Load Fuel Burn~6.8 gal/hr (25.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
