CaseIH JX1075C

The CaseIH JX1075C is a tractor produced by Caseih. It is equipped with a 178.8 ci 2.9 L engine. The rated power output is 75 hp 55.9 kW. Transmission: 16 forward and reverse. Operating weight: 6085 to 6615 pounds.

Overview

	2004 - 2008 JXC SeriesUtility tractor
2004 - 2008
JXC Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Jesi, Italy

CaseIH JX1075C Engine
Iveco 2.9L 3-cyl diesel
Fuel tank	19.5 gal 73.8 L
Engine details ...

CaseIH JX1075C Power
Engine (gross)	75 hp 55.9 kW
PTO (claimed)	62 hp 46.2 kW
Drawbar (tested)	55.3 hp 41.2 kW
PTO (tested)	64.5 hp 48.1 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab optional.

Hydraulics
Type	open center
Pressure	2755 psi 190.0 bar
Valves	1 to 4
Pump flow	16.9 gpm 64.0 lpm
Steering flow	9.4 gpm 35.6 lpm

Tractor hitch
Rear Type	II
Control	mechanical lower-link draft sensing.
Rear lift	3960 lbs 1796 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	mechanical dry disc
Rear PTO Type	540 (1.375)

Dimensions & Tires
2WD Wheelbase	83.9 inches 213 cm
4WD Wheelbase	81.3 inches 206 cm
Weight	6085 to 6615 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	65
Cab Charging amps	85
Battery CCA	730
Battery volts	12

Engine

Engine Detail — 178.8 ci / 2.9 L Diesel

Manufacturer	Iveco
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	178.8 ci 2.9 L
Bore/Stroke	4.094x4.528 inches 104 x 115 mm
Power (gross)	75 hp 55.9 kW
Fuel system	direct injection
Air cleaner	dual paper elements
Pre-heating	thermostart
Compression	18.0:1
Rated RPM	2300
Starter volts	12

Transmission

Transmission options
16-speed mechanical shuttle
16-speed power shuttle

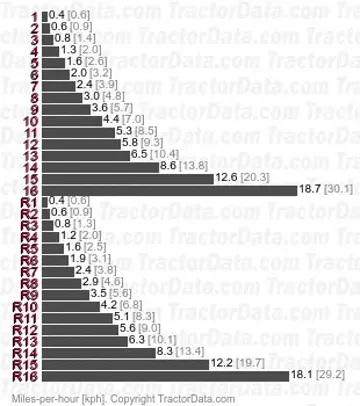

Transmission — 16 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	16 forward and reverse

Transmission — 16 forward and reverse power shuttle

Type	power shuttle
Gears	16 forward and reverse

Dimensions

CaseIH JX1075C Tires

Dimensions
2WD Wheelbase	83.9 inches 213 cm
4WD Wheelbase	81.3 inches 206 cm
2WD Length	155.7 inches 395 cm
4WD Length	154 inches 391 cm
Width	69.6 inches*Minimum width. 176 cm

CaseIH JX1075C Weight
2WD Operating	6085 lbs 2760 kg
4WD Operating	6615 lbs 3000 kg
Ballasted	7685 lbs 3485 kg

CaseIH JX1075C Height
ROPS	95.6 inches 242 cm
	75.6 inches (lowered) 192 cm
Cab	91.5 inches 232 cm

Tests

OCED Tractor Test 2114
Diesel 16-speed 4WD October 1, 2003 - February 1, 2004 Link: OCED Tractor Test 2114 file
PTO performance
Max power	64.5 hp 48.1 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Power at rated engine speed	63.8 hp 47.6 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Power at rated PTO speed	63.7 hp 47.5 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Drawbar performance
Max power	55.3 hp 41.2 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Gear 12 used for power test.
