CaseIH MXU110

The CaseIH MXU110 is a tractor produced by Caseih. It is equipped with a 273.7 ci 4.5 L engine. The rated power output is 115 hp 85.8 kW. Transmission: 16 forward and reverse. Operating weight: 9568 to 11440 pounds.

Overview

	2004 - 2006 MXU Maxxum SeriesUtility tractor
2004 - 2006
MXU Maxxum Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Basildon, England
Original price was $43,150 in 2005

Variants
TS110A	similar New Holland model

CaseIH MXU110 Engine
CNH 4.5L 4-cyl diesel
Fuel tank	46.7 gal 176.8 L
Engine details ...

CaseIH MXU110 Power
Engine (gross)	115 hp 85.8 kW
PTO (claimed)	95 hp 70.8 kW
Drawbar (tested)	86.4 hp 64.4 kW
PTO (tested)	114.7 hp 85.5 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	planetary inboard
Differential lock	electro-hydraulic rear standard
	front optional
Power steering
Differential hydraulic wet disc brakes
Two-post ROPS. Cab optional.

Hydraulics
Type	open center
	pressure-flow compensated (PFC)OptOptional
Pressure	2974 psi 205.1 bar
	3118 psi (PFC) 215.0 bar
Rear valves	2 to 4
Pump flow	19.8 gpm 74.9 lpm
	26.5 gpm (PFC) 100.3 lpm
Total flow	30.3 gpm 114.7 lpm
	37 gpm (PFC) 140.0 lpm

Tractor hitch
Rear Type	II (ROPS)
	II/IIIN (cab)
Control	mechanical lower link (ROPS)
	electronic draft control (cab)
Rear lift	9,285 lbs 4211 kg
	12,185 lbs (with cab) 5527 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet plates
Rear PTO Type	540/1000
Engine RPM	540@1969
	1000@2120

Dimensions & Tires
2WD Wheelbase	93.3 inches 236 cm
4WD Wheelbase	94.9 inches 241 cm
Weight	9568 to 11440 pounds
Front tire	7.50x16
2WD Rear tire	16.9R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	70 (ROPS)
	120 (cab)
Battery CCA	1300
Battery volts	12

References
MXU Series Maxxum Tractors published in 2004, by CaseIH
MXU Series Maxxum Tractors published in 2005, by CaseIH

Engine

Engine Detail — 273.7 ci / 4.5 L Diesel

Manufacturer	CNH
Configuration	turbocharged intercooled diesel, 4-cylinder, liquid-cooled
Displacement	273.7 ci 4.5 L
Bore/Stroke	4.094x5.196 inches 104 x 132 mm
Power (gross)	115 hp 85.8 kW
Fuel system	Bosch mechanical direct injection with 8-hole injectors
Air cleaner	dual paper elements
Pre-heating	grid heater
Compression	17.0:1
Rated RPM	2200
Starter volts	12

CaseIH MXU110 Engine

Transmission

Transmission options
24-speed partial powershift
16-speed partial powershift

Transmission — 24 forward and reverse partial powershift

Type	partial powershift
Gears	24 forward and reverse
Clutch	electro-hydraulic wet discs
Four gears (1-4) in three ranges (I-II-III) with low-high power shift. Gears and ranges are synchronized.

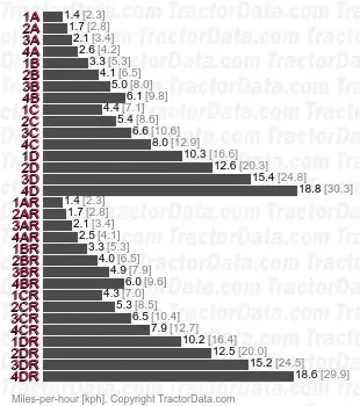

Transmission — 16 forward and reverse partial powershift

Type	partial powershift
Gears	16 forward and reverse
Clutch	electro-hydraulic wet discs
Four gears (1-4) in four ranges (A-D). Power shift between gears. Auto Shift feature automatically matches shifts within selected range to match load.

Dimensions

CaseIH MXU110 Tires
2WD Standard tires (ag)	Front: 7.50x16. Rear: 16.9R38
4WD Standard tires (ag)	Front: 14.9R24. Rear: 16.9R38

Dimensions
2WD Wheelbase	93.3 inches 236 cm
4WD Wheelbase	94.9 inches 241 cm

CaseIH MXU110 Weight
Shipping	9,568 lbs (2WD ROPS) 4340 kg
	10,516 lbs (2WD cab) 4770 kg
	9,942 lbs (4WD ROPS) 4509 kg
	10,890 lbs (4WD cab) 4939 kg
Operating	11,440 lbs (4WD cab) 5189 kg

CaseIH MXU110 Height
ROPS	112.4 inches 285 cm
Cab	112.4 inches 285 cm
	115 inches (suspended cab) 292 cm
Exhaust	113.2 inches 287 cm

Tests

OCED Tractor Test 2245
Diesel 16-speed 4WD February 1 - March 1, 2005 Link: OCED Tractor Test 2245 file
PTO performance
Max power	114.7 hp 85.5 kW
Fuel use	6.4 gal/hour 24.2 l/hour
Power at rated engine speed	102.9 hp 76.7 kW
Fuel use	6.2 gal/hour 23.5 l/hour
Power at rated PTO speed	107.3 hp 80.0 kW
Fuel use	6.3 gal/hour 23.8 l/hour
Drawbar performance
Max power	86.4 hp 64.4 kW
Fuel use	6.1 gal/hour 23.1 l/hour
Gear 2B used for power test.
Max pull	12,320 lbs 5588 kg
Gear 1A used for pull test.
