CaseIH Steiger 475

The CaseIH Steiger 475 is a tractor produced by Caseih. It is equipped with a 787 ci 12.9 L engine. The listed engine power is Diesel (gross): 468.5 hp / 349.4 kW. Transmission: CVXDrive. Operating weight: 40800 lbs 18506 kg.

Engine Power

Diesel (gross): 468.5 hp / 349.4 kW

Fuel & Capacities

310 gal 1173.4 L

Transmission

CVXDrive

Operating Weight

40800 lbs 18506 kg

Overview

	2024 - Steiger 4WD SeriesFour-wheel Drive (4WD) tractor
2024 -
Steiger 4WD Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	CaseIH (a part of CNH)
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA

CaseIH Steiger 475 Engine
FPT 12.9L 6-cyl diesel
Fuel tank	310 gal 1173.4 L
Exhaust fluid (DEF)	42 gal 159.0 L
Engine details ...

CaseIH Steiger 475 Power
Engine (gross)	468.5 hp 349.4 kW
Engine (max)	514.9 hp 384.0 kW
PTO (claimed)	455.7 hp 339.8 kW

Mechanical
Four-wheel drive
Final drives	planetary
Differential lock	automatic front and rear
Articulated power steering
Cab standard with air-conditioning.

Hydraulics
Type	closed center
Valves	4 to 8
Pump flow	42 gpm 159.0 lpm
	57 gpmOptOptional 215.7 lpm
	113 gpmOptOptional 427.7 lpm
SCV flow	35 gpm 132.5 lpm

Tractor hitch
Rear Type	IVN/III
Rear lift (at 24"/610mm)	21903 lbs 9935 kg
Drawbar	Cat 4
	Cat 5 OptOptional

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Dimensions & Tires
Wheelbase	148 inches 375 cm
Weight	40800 lbs 18506 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	240
	330 OptOptional
Batteries	3
Battery CCA	950
Battery volts	12

References

TAFS Connect Steiger published in 2024, by New Holland

Engine

Engine Detail — 787 ci / 12.9 L Diesel

Manufacturer	FPT Cursor 13
Configuration	turbocharged diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	787 ci 12.9 L
Bore/Stroke	5.31x5.91 inches 135 x 150 mm
Emissions	Tier IV
Rated Power (gross)	468.5 hp 349.4 kW
Maximum Power (gross)	514.9 hp 384.0 kW
Rated RPM	2100
Starter	electric
Starter volts	12

CaseIH Steiger 475 Engine

Transmission

Transmission options
17-speed full power shift
continuously-variable transmission

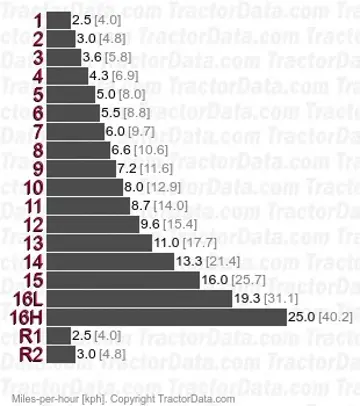

Transmission — PowerDrive

Transmission	PowerDrive
Type	full power shift
Gears	17 forward and 2 reverse

CaseIH Steiger 475 Transmission

Transmission — CVXDrive

Transmission	CVXDrive
Type	continuously-variable transmission
Gears	infinite forward and reverse

CaseIH Steiger 475 Transmission

Dimensions

CaseIH Steiger 475 Tires

Dimensions
Wheelbase	148 inches 375 cm
Front axle	Bar: 5 by 120 inches 127 by 3048 mm
Bar rear axle	5 by 120 inches 127 by 3048 mm

CaseIH Steiger 475 Weight
Shipping	40800 lbs 18506 kg
Max capacity	56000 lbs 25401 kg
Max Drawbar	6000 lbs (Cat 4) 2721 kg
	11000 lbs (Cat 4)OptOptional 4989 kg
	15000 lbs (Cat 5) 6804 kg

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Steiger 475 based on its 468.5 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Steiger 475.

Estimated Continuous Field Runtime: 12.7 hrs

Approximately 12.7 hours of continuous field operation at ~75% rated power on a full tank (310 gal / 1173.5 L).

Estimated 75% Load Fuel Burn~24.4 gal/hr (92.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
