Chamberlain Countryman 6
The Chamberlain Countryman 6 is a tractor produced by Chamberlain. It is equipped with a 354 ci 5.8 L engine. The rated power output is 76 hp 56.7 kW. Transmission: 9 forward and 3 reverse. Operating weight: 9000 lbs 4082 kg.
Engine Power
76 hp
56.7 kW
Fuel & Capacities
28.2 gal
106.7 L
Transmission
9 forward and 3 reverse
Operating Weight
9000 lbs
4082 kg
Chamberlain Countryman 6 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1963 - 1966
Countryman SeriesStandard-tread tractor |
|---|---|
1963 - 1966 | |
Countryman Series | |
Standard-tread tractor | |
Production | |
|---|---|
Manufacturer | Chamberlain |
Standard-tread tractor | |
Built in Welshpool, Australia | |
Chamberlain Countryman 6 Engine | |
|---|---|
Perkins 5.8L 6-cyl diesel | |
Fuel tank | 28.2 gal
106.7 L |
Engine details ...  | |
Chamberlain Countryman 6 Transmission | |
|---|---|
9-speed gear | |
Transmission details ...  |
Chamberlain Countryman 6 Power | |
|---|---|
Engine | 76 hp
56.7 kW |
PTO (claimed) | 67 hp
50.0 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Hydraulics | |
|---|---|
Total flow | 10.7 gpm
40.5 lpm |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1600 |
Dimensions & Tires | |
|---|---|
Wheelbase | 86 inches
218 cm |
Weight | 9000 lbs
4082 kg |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Countryman 6 published in 1962, by Chamberlain |
Engine
Engine Detail — 354 ci / 5.8 L Diesel
Manufacturer | Perkins 6.354 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 354 ci
5.8 L |
Bore/Stroke | 3.875x5.00 inches
98 x 127 mm |
Power | 76 hp
56.7 kW |
Compression | 16:1 |
Rated RPM | 2000 |
Transmission
Transmission — 9 forward and 3 reverse gear
Type | gear |
Gears | 9 forward and 3 reverse |
 | |
Dimensions
Chamberlain Countryman 6 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 86 inches
218 cm |
Length | 148.5 inches
377 cm |
Width | 88 inches
223 cm |
Weight | 9000 lbs
4082 kg |
Photos

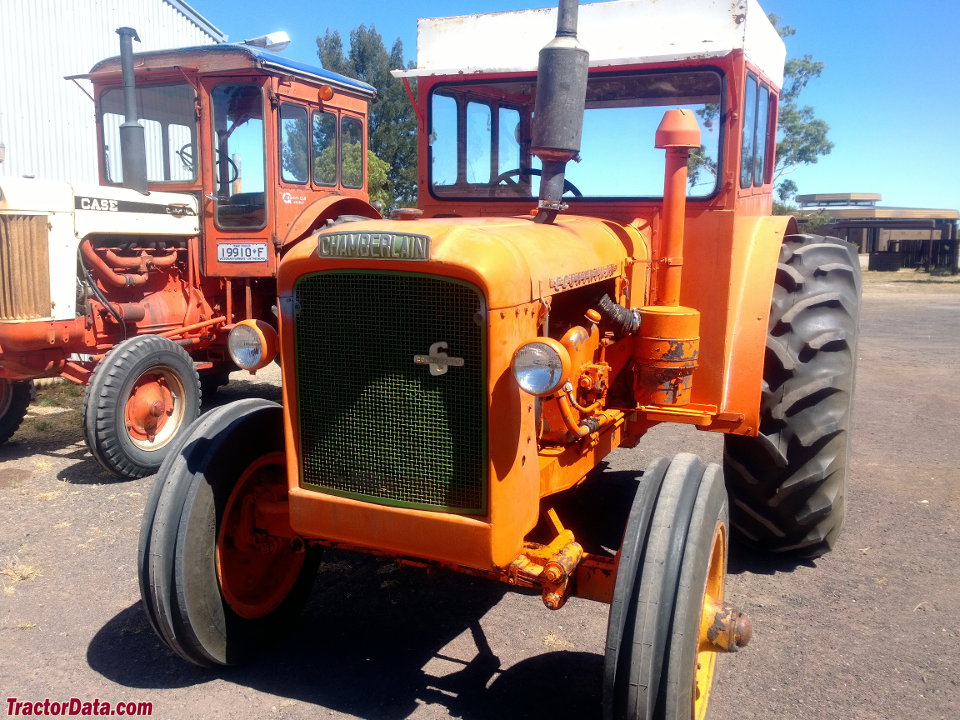

Chamberlain Countryman 6
