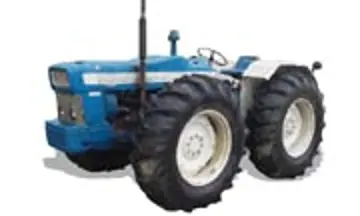

County 1004
The County 1004 is a tractor produced by County. It is equipped with a 330 ci 5.4 L engine. The listed engine power is Diesel (net): 93 hp / 69.4 kW; Diesel (gross): 98.5 hp / 73.5 kW. Transmission: 8 forward and 2 reverse. Drive type: 4x4 4WD. Operating weight: 8300 lbs 3764 kg.
Engine Power
Diesel (net): 93 hp / 69.4 kW; Diesel (gross): 98.5 hp / 73.5 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
19.9 gal
75.3 L
Transmission
8 forward and 2 reverse
Operating Weight
8300 lbs
3764 kg
Overview
 | 1966 - 1975
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | County |
Four-wheel Drive (4WD) tractor | |
Built in Fleet, England | |
Variants | |
|---|---|
FC1004 | forward-control |
County 1004 Engine | |
|---|---|
Ford 5.4L 6-cyl diesel | |
Fuel tank | 19.9 gal
75.3 L |
Engine details ...  | |
County 1004 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
County 1004 Power | |
|---|---|
Engine (gross) | 98.5 hp
73.5 kW |
Engine (net) | 93 hp
69.4 kW |
PTO (claimed) | 56 hp
41.8 kW |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Power steering | |
Mechanical wet disc brakes | |
Open operator station. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2500 psi
172.4 bar |
Pump flow | 6.3 gpm
23.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1900 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71.5 inches
181 cm |
Weight | 8300 lbs
3764 kg |
Front tire | 14-30 |
Rear tire | 14-30 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
1004 published in 1970, by County | |
1004 Super Six published in 1970, by County |
Engine
Engine Detail — 330 ci / 5.4 L Diesel
Manufacturer | Ford 2703E |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 330 ci
5.4 L |
Bore/Stroke | 3.9375x4.524 inches
100 x 115 mm |
Power (net) | 93 hp
69.4 kW |
Power (gross) | 98.5 hp
73.5 kW |
Fuel system | direct injection |
Rated RPM | 2200 |
Torque | 250 lb-ft
339.0 Nm |
Torque RPM | 1700 |
Starter type | electric |
Oil capacity | 13.2 qts
12.5 L |
Coolant capacity | 78 qts
73.8 L |
Transmission

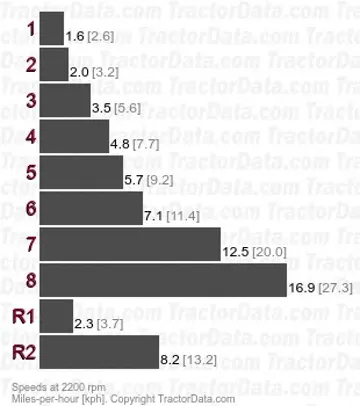

Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
Clutch | 355.6mm dry disc |
Oil capacity | 18.9 qts
17.9 L |
With 14-30 rear tires. | |
 | |
Dimensions
County 1004 Tires | |
|---|---|
Ag front | 14-30 |
Ag rear | 14-30 |
Ag front | 18-26 |
16-30 | |
14-34 | |
12-36 | |
12-38 | |
Ag rear | 18-26 |
16-30 | |
14-34 | |
12-36 | |
12-38 | |
Dimensions | |
|---|---|
Wheelbase | 71.5 inches
181 cm |
Length | 161 inches
408 cm |
Width | 86 inches
218 cm |
Height | 90 inches
228 cm |
Weight | 8300 lbs
3764 kg |
Front tread | 60 to 84 inches
152 to 213 cm |
Rear tread | 60 to 84 inches
152 to 213 cm |
Photos

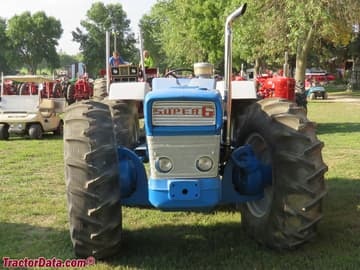

County 1004 Super-6 tractor.
County 1004 Super-6 operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for County 1004.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
County 1004 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for County 1004.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
