County 1164 TW
The County 1164 TW is a tractor produced by County. It is equipped with a 401.4 ci 6.6 L engine. The listed engine power is Diesel (listed): 111 hp / 82.8 kW. Transmission: Dual Power. Operating weight: 9300 lbs 4218 kg.
Engine Power
Diesel (listed): 111 hp / 82.8 kW
Fuel & Capacities
40.6 gal
153.7 L
Transmission
Dual Power
Operating Weight
9300 lbs
4218 kg
Overview
 | 1979 - 1983 |
|---|
Production | |
|---|---|
Manufacturer | County |
Built in Fleet, England | |
County 1164 TW Engine | |
|---|---|
Ford 6.6L 6-cyl diesel | |
Fuel tank | 40.6 gal
153.7 L |
Engine details ...  | |
County 1164 TW Power | |
|---|---|
Engine | 111 hp
82.8 kW |
PTO (claimed) | 105 hp
78.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Open operator station. Cab available. |
Hydraulics | |
|---|---|
Pump flow | 9.25 gpm
35.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 9300 lbs
4218 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Weight | 9300 lbs
4218 kg |
Front tire | 18.4/15-30 |
Rear tire | 18.4/15-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
1164 TW published in 1982, by County |
Engine
Engine Detail — 401.4 ci / 6.6 L Diesel
Manufacturer | Ford 401DF |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 401.4 ci
6.6 L |
Bore/Stroke | 4.41x4.41 inches
112 x 112 mm |
Power | 111 hp
82.8 kW |
Compression | 16.5:1 |
Rated RPM | 2300 |
Torque | 287.7 lb-ft
390.1 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 18 qts
17.0 L |
Coolant capacity | 20.4 qts
19.3 L |
Transmission
Transmission options | |
|---|---|
8-speed | |
16-speed two-speed power shift |

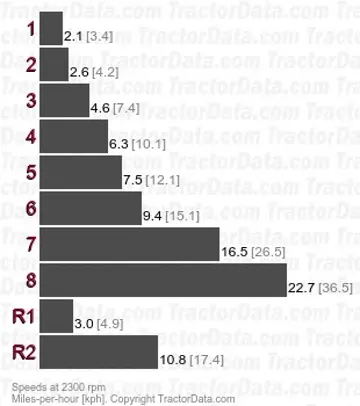

Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
With 16.9/14-34 tires. | |
 | |

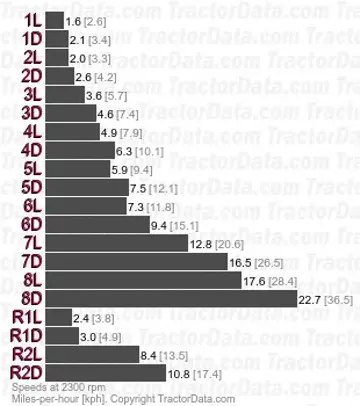

Transmission — Dual Power
Transmission | Dual Power |
Type | two-speed power shift |
Gears | 16 forward and 4 reverse |
 | |
Dimensions
County 1164 TW Tires | |
|---|---|
Standard tires (ag) | Front: 18.4/15-30. Rear: 18.4/15-30 |
Optional tires (ag) | Front: 16.9/14-34. Rear: 16.9/14-34 |
Front: 16.9/14-30. Rear: 16.9/14-30 | |
Front: 23.1/18-26. Rear: 23.1/18-26 | |
Front: 13.6/12-38. Rear: 13.6/12-38 | |
Dimensions | |
|---|---|
Weight | 9300 lbs
4218 kg |

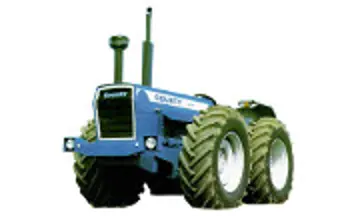

Photos
County 1164 TW tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for County 1164 TW based on its 111 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for County 1164 TW.
Estimated Continuous Field Runtime: 7 hrs
Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (40.6 gal / 153.7 L).
Estimated 75% Load Fuel Burn~5.8 gal/hr (21.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
County 1164 TW Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for County 1164 TW.
Converted Equivalents:
Horsepower (HP)111 hp
Kilowatts (kW)82.8 kW
Metric Horsepower (PS / CV)112.5 PS
Direct Competitor Comparison
Compare County 1164 TW against same-era industry alternatives in the same horsepower class.
Current Model
County
County 1164 TW
Engine Power:Diesel (listed): 111 hp / 82.8 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 1055
Engine Power:100
Production Years:1977 - 1982
