County 1184
The County 1184 is a tractor produced by County. It is equipped with a 401 ci 6.6 L engine. The listed engine power is Diesel (listed): 120 hp / 89.5 kW. Transmission: 16 forward and 4 reverse. Drive type: 4x4 4WD.
Engine Power
Diesel (listed): 120 hp / 89.5 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
36.9 gal
139.7 L
Transmission
16 forward and 4 reverse
Overview
 | 1979 - 1990
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | County |
Four-wheel Drive (4WD) tractor | |
Variants | |
|---|---|
FC 1184 | forward-control |
County 1184 Engine | |
|---|---|
Ford 6.6L 6-cyl diesel | |
Fuel tank | 36.9 gal
139.7 L |
Engine details ...  | |
County 1184 Transmission | |
|---|---|
16-speed two-speed power shift | |
Transmission details ...  |
County 1184 Power | |
|---|---|
Engine | 120 hp
89.5 kW |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Differential lock | mechanical front and rear |
Power steering | |
Wet disc brakes | |
Cab standard with heat. | |
Hydraulics | |
|---|---|
Pressure | 2500 psi
172.4 bar |
Pump flow | 9.25 gpm
35.0 lpm |
Steering flow | 4.3 gpm
16.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at ends) | 9300 lbs
4218 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1900 |
1000@2060 | |
Dimensions & Tires | |
|---|---|
Front tire | 16.9/14-34 |
Rear tire | 16.9/14-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 72 |
Battery AH | 128 |
References | |
|---|---|
 | |

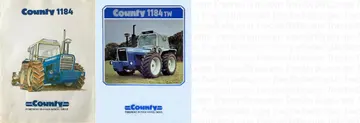

1184 published in 1988, by County | |
1184 TW published by County |
Engine
Engine Detail — 401 ci / 6.6 L Diesel
Manufacturer | Ford |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 401 ci
6.6 L |
Bore/Stroke | 4.40x4.40 inches
112 x 112 mm |
Power | 120 hp
89.5 kW |
Fuel system | direct injection |
Air cleaner | dry |
Compression | 16.5:1 |
Rated RPM | 2300 |
Torque | 300 lb-ft
406.8 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Transmission

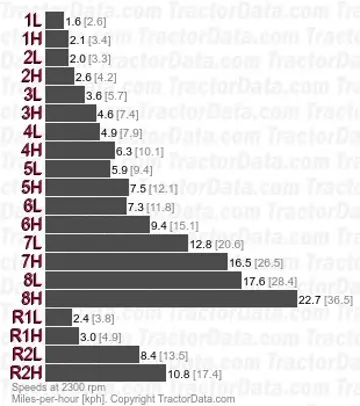

Transmission — 16 forward and 4 reverse two-speed power shift
Type | two-speed power shift |
Gears | 16 forward and 4 reverse |
With 16.9-34 tires. | |
 | |
Dimensions
County 1184 Tires | |
|---|---|
Ag front | 16.9/14-34 |
Ag rear | 16.9/14-34 |
Dimensions | |
|---|---|
Front tread | 64 to 84 inches
162 to 213 cm |
Rear tread | 64 to 84 inches
162 to 213 cm |
Photos

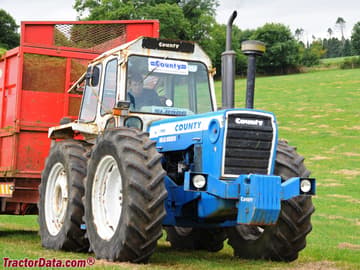

County 1184 four-wheel drive tractor.
Recommended Implements & Sizing Guide
Engineering recommendations for County 1184 based on its 120 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for County 1184.
Estimated Continuous Field Runtime: 5.9 hrs
Approximately 5.9 hours of continuous field operation at ~75% rated power on a full tank (36.9 gal / 139.7 L).
Estimated 75% Load Fuel Burn~6.2 gal/hr (23.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
County 1184 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for County 1184.
Converted Equivalents:
Horsepower (HP)120 hp
Kilowatts (kW)89.5 kW
Metric Horsepower (PS / CV)121.7 PS
