County 1474
The County 1474 is a tractor produced by County. It is equipped with a 401.4 ci 6.6 L engine. The listed engine power is Diesel (listed): 146 hp / 108.9 kW. Transmission: 16 forward and 4 reverse.
Engine Power
Diesel (listed): 146 hp / 108.9 kW
Fuel & Capacities
34 gal
128.7 L
Transmission
16 forward and 4 reverse
Overview
 | 1976 - 1979
Ford built |
|---|
Production | |
|---|---|
Distributor | County |
Manufacturer | Ford |
Built in Fleet, England | |
County 1474 Engine | |
|---|---|
Ford 6.6L 6-cyl diesel | |
Fuel tank | 34 gal
128.7 L |
Engine details ...  | |
County 1474 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
County 1474 Power | |
|---|---|
Engine | 146 hp
108.9 kW |
PTO (claimed) | 135 hp
100.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard |
Hydraulics | |
|---|---|
Pressure | 2600 psi
179.3 bar |
Pump flow | 15.5 gpm
58.7 lpm |
Steering flow | 4.2 gpm
15.9 lpm |
Steering press. | 1500 psi
103.4 bar |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1900 |
1000@1935 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 85.5 inches
217 cm |
Front tire | 18.4/15-34 |
Rear tire | 18.4/15-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 51 |
Battery volts | 12 |
Battery AH | 128 |
References | |
|---|---|
 | |
1474 published by County |
Engine
Engine Detail — 401.4 ci / 6.6 L Diesel
Manufacturer | Ford 401DF |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 401.4 ci
6.6 L |
Bore/Stroke | 4.41x4.41 inches
112 x 112 mm |
Power | 146 hp
108.9 kW |
Air cleaner | dry |
Compression | 15.6:1 |
Rated RPM | 2200 |
Torque | 392 lb-ft
531.6 Nm |
Torque RPM | 1600 |
Starter volts | 12 |
Oil capacity | 14 qts
13.2 L |
Coolant capacity | 23.5 qts
22.2 L |
Transmission

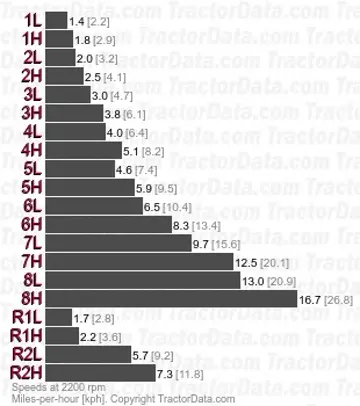

Transmission — 16 forward and 4 reverse
Gears | 16 forward and 4 reverse |
With 18.4/15-34 rear tires. | |
 | |
Dimensions
County 1474 Tires | |
|---|---|
Ag front | 18.4/15-34 |
Ag rear | 18.4/15-34 |
Dimensions | |
|---|---|
Wheelbase | 85.5 inches
217 cm |
Length | 180.6 inches
458 cm |
Height (cab) | 115.7 inches
293 cm |
Height (exhaust) | 123.1 inches
312 cm |
Ground clearance | 15 inches
38 cm |
Front tread | 72/76/80/84/88 inches
182/193/203/213/223 cm |
Rear tread | 72/76/80/84/88 inches
182/193/203/213/223 cm |
Photos

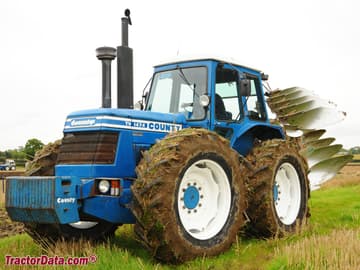

County TW 1474 four-wheel drive tractor.
Recommended Implements & Sizing Guide
Engineering recommendations for County 1474 based on its 146 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for County 1474.
Estimated Continuous Field Runtime: 4.5 hrs
Approximately 4.5 hours of continuous field operation at ~75% rated power on a full tank (34 gal / 128.7 L).
Estimated 75% Load Fuel Burn~7.6 gal/hr (28.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
County 1474 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for County 1474.
Converted Equivalents:
Horsepower (HP)146 hp
Kilowatts (kW)108.9 kW
Metric Horsepower (PS / CV)148 PS
Direct Competitor Comparison
Compare County 1474 against same-era industry alternatives in the same horsepower class.
Current Model
County
County 1474
Engine Power:Diesel (listed): 146 hp / 108.9 kW
★ Baseline Reference
