Massey Ferguson 1010
The Massey Ferguson 1010 is a tractor produced by Massey Ferguson. It is equipped with a 52.8 ci 0.9 L engine. The rated power output is 16 hp 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 1420 to 2000 pounds.
Engine Power
16 hp
11.9 kW
Fuel & Capacities
3.7 gal
14.0 L
Transmission
infinite forward and reverse
Operating Weight
1420 to 2000 pounds
Massey Ferguson 1010 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

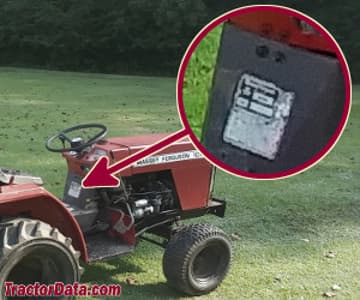

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1982 - 1994
1000 Compact SeriesCompact Utility tractorToyosha built |
|---|---|
1982 - 1994 | |
1000 Compact Series | |
Compact Utility tractor | |
Toyosha built | |
1982 - 1994 | |
|---|---|
1000 Compact Series | |
Compact Utility tractor | |
Toyosha built |
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Toyosha |
Compact Utility tractor | |
Original price was $8,200 in 1994 | |
Variants | |
|---|---|
1010-2 | 2WD gear drive |
1010-4 | 4WD gear drive |
1010H-2 | 2WD hydro drive |
1010H-4 | 4WD hydro drive |
Massey Ferguson 1010 Engine | |
|---|---|
Toyosha 0.9L 3-cyl diesel | |
Fuel tank | 3.7 gal
14.0 L |
Engine details ...  | |
Massey Ferguson 1010 Power | |
|---|---|
Engine | 16 hp
11.9 kW |
Gear PTO (claimed) | 13 hp
9.7 kW |
Hydro PTO (claimed) | 12 hp
8.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Mechanical drum brakes | |
Open operator station. ROPS optional. | |
Hydraulics | |
|---|---|
Type | open center |
Valves | 1 OptOptional |
Pump flow | 3.5 gpm
13.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 1212 lbs
549 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission *With overrunning clutch |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2365 |
Mid PTO Type | 2114 (with hydro) |
Front PTO | independent OptOptional |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Gear Wheelbase | 50.8 inches
129 cm |
Hydro Wheelbase | 55.1 inches
139 cm |
Weight | 1420 to 2000 pounds |
Front tire | 4.50-10 |
Rear tire | 8-16 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Loaders - Compact and Agricultural published in 1989, by Massey Ferguson | |
Compact Tractors published in 1986, by Massey Ferguson | |
Compact Tractors and Implements published in 1987, by Massey Ferguson | |
1010 published in 1983, by Massey Ferguson |
Engine
| 1982 - 1994
1000 Compact SeriesCompact Utility tractorToyosha built |
|---|---|
1982 - 1994 | |
1000 Compact Series | |
Compact Utility tractor | |
Toyosha built | |
1982 - 1994 | |
|---|---|
1000 Compact Series | |
Compact Utility tractor | |
Toyosha built |
Engine Detail — 52.8 ci / 0.9 L Diesel
Manufacturer | Toyosha |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 52.8 ci
0.9 L |
Bore/Stroke | 2.75x2.95 inches
70 x 75 mm |
Power | 16 hp
11.9 kW |
Fuel system | indirect injection |
Air cleaner | dry |
Pre-heating | glow plugs |
Rated RPM | 2500 |
Starter volts | 12 |
Oil capacity | 2.9 qts
2.7 L |
Coolant capacity | 3.7 qts
3.5 L |
Transmission
| 1982 - 1994
1000 Compact SeriesCompact Utility tractorToyosha built |
|---|---|
1982 - 1994 | |
1000 Compact Series | |
Compact Utility tractor | |
Toyosha built | |
1982 - 1994 | |
|---|---|
1000 Compact Series | |
Compact Utility tractor | |
Toyosha built |
Transmission options | |
|---|---|
6-speed gear | |
hydrostatic |
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
Clutch | 184mm dry disc |
Oil capacity | 18 qts
17.0 L |
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 18 qts
17.0 L |
Dimensions
| 1982 - 1994
1000 Compact SeriesCompact Utility tractorToyosha built |
|---|---|
1982 - 1994 | |
1000 Compact Series | |
Compact Utility tractor | |
Toyosha built | |
1982 - 1994 | |
|---|---|
1000 Compact Series | |
Compact Utility tractor | |
Toyosha built |
Massey Ferguson 1010 Tires | |
|---|---|
Standard tires (ag) | Front: 4.50-10. Rear: 8-16 |
Front: 5.00-12. Rear: 8-16 | |
2WD Lawn/turf front | 21x8.00-10 |
4WD Lawn/turf front | 20.5x8.00-10 |
Lawn/turf rear | 29x12.00-15 |
Dimensions | |
|---|---|
Gear Wheelbase | 50.8 inches
129 cm |
Hydro Wheelbase | 55.1 inches
139 cm |
Gear Length | 85 inches
215 cm |
Hydro Length | 90.7 inches
230 cm |
Width | 41.9 inches
106 cm |
Height (steering wheel) | 46.2 inches
117 cm |
Ground clearance | 10.4 inches
26 cm |
2WD Front tread | 32.3 inches
82 cm |
4WD Front tread | 34.8 inches
88 cm |
2WD Rear tread | 32.9 inches
83 cm |
4WD Rear tread | 38 inches
96 cm |
Massey Ferguson 1010 Weight | |
|---|---|
Shipping | 1420 lbs (2WD gear)
644 kg |
1610 lbs (4WD gear)
730 kg | |
2000 lbs (4WD hydro)
907 kg | |
Attachments
| 1982 - 1994
1000 Compact SeriesCompact Utility tractorToyosha built |
|---|---|
1982 - 1994 | |
1000 Compact Series | |
Compact Utility tractor | |
Toyosha built | |
1982 - 1994 | |
|---|---|
1000 Compact Series | |
Compact Utility tractor | |
Toyosha built |
Attachment overview | |
|---|---|
54" mid-mount mower deck | |
Blade | |
Front-end loader |

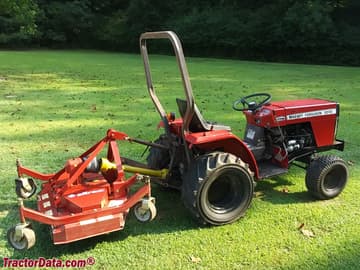

Photos
