Cub Cadet 2082
The Cub Cadet 2082 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 770 cc 46.98 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: infinite forward and reverse. Operating weight: 1010 lbs*Weight with 60-inch mower deck. 458 kg.
Engine Power
Gasoline (gross): 20 hp / 14.9 kW
Fuel & Capacities
5 gal
18.9 L
Transmission
infinite forward and reverse
Operating Weight
1010 lbs*Weight with 60-inch mower deck.
458 kg
Overview
 | 1990 - 1993
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Cub Cadet 2082 Engine | |
|---|---|
20HP Kohler 770cc 2-cyl gasoline | |
Fuel tank | 5 gal
18.9 L |
Engine details ...  | |
Cub Cadet 2082 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Dual disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Clutch | electric |
Rear PTO Type | 2000 |
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 51.6 inches
131 cm |
Weight | 1010 lbs
458 kg |
Front tire | 18x8.50-8 |
Rear tire | 26x12.00-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Garden Tractors published in 1991, by Cub Cadet | |
1991 Product Line published by Cub Cadet | |
1992 Product Line published by Cub Cadet | |
Garden Tractors published in 1992, by Cub Cadet | |
Service Manual Garden Tractors (772-4116) published in 1991 |
Engine
Engine Detail — 770 cc / 46.98 ci Gasoline
Manufacturer | Kohler M20S |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft opposed-twin |
Displacement | 770 cc
46.98 ci |
Bore/Stroke | 3.125x3.06 inches
79 x 78 mm |
Power (gross) | 20 hp
14.9 kW |
Idle RPM | 1200-3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.004 inches*Cold
0.102 mm |
Exhaust valve clearance | 0.012 inches*Cold
0.305 mm |
Oil capacity | 2.75 qts
2.6 L |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 7 qts
6.6 L |
 | |
Dimensions
Cub Cadet 2082 Tires | |
|---|---|
Lawn/turf front | 18x8.50-8 |
Lawn/turf rear | 26x12.00-12 |
Dimensions | |
|---|---|
Wheelbase | 51.6 inches
131 cm |
Length | 78.5 inches
199 cm |
Width | 43.5 inches
110 cm |
Height (steering wheel) | 47.5 inches
120 cm |
Weight | 1010 lbs*Weight with 60-inch mower deck.
458 kg |
Ground clearance | 7.6 inches
19 cm |
Front tread | 33 inches
83 cm |
Rear tread | 31.5 inches
80 cm |
Attachments
Attachment overview | |
|---|---|
46" mid-mount mower deck | |
50" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

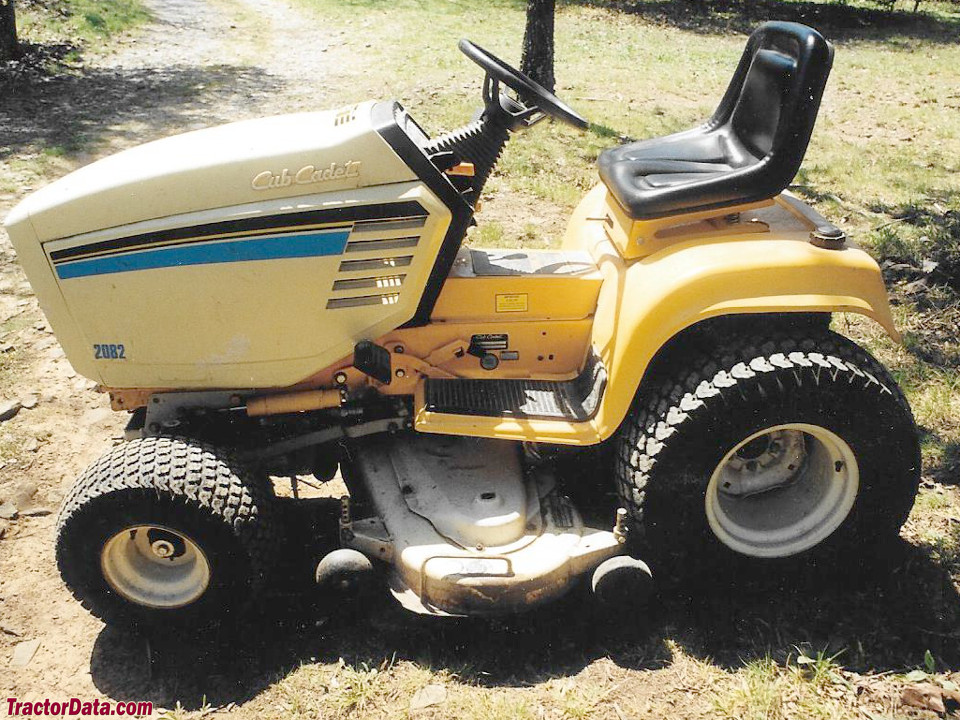

Cub Cadet 2082
Cub Cadet 2082
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet 2082 based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 2082.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet 2082 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 2082.
Converted Equivalents:
Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS
