Cub Cadet 2084

The Cub Cadet 2084 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: infinite forward and reverse. Operating weight: 1037 lbs*Weight with 60-inch mower deck. 470 kg.

Overview

	1993 - 1994 Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor

Cub Cadet 2084 Engine
20HP Kohler 624cc 2-cyl gasoline
Fuel tank	5 gal 18.9 L
Engine details ...

Cub Cadet 2084 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	51.6 inches 131 cm
Weight	1037 lbs 470 kg
Front tire	18x8.5-8
Rear tire	26x12.0-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Garden Tractors published in 1993, by Cub Cadet
Garden Tractors published in 1994, by Cub Cadet

Engine

Engine Detail — 624 cc / 38.1 ci Gasoline

Manufacturer	Kohler CH20
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-Twin
Displacement	624 cc 38.1 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power (gross)	20 hp 14.9 kW
Starter	electric
Starter volts	12
Oil capacity	1.9 qts 1.8 L

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Type	shaft-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Cub Cadet 2084 Tires
Lawn/turf front	18x8.5-8
Lawn/turf rear	26x12.0-12

Dimensions
Wheelbase	51.6 inches 131 cm
Length	78.5 inches 199 cm
Width	43.5 inches 110 cm
Height (steering wheel)	47.5 inches 120 cm
Weight	1037 lbs*Weight with 60-inch mower deck. 470 kg

Attachments

Attachment overview
46" mid-mount mower deck
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

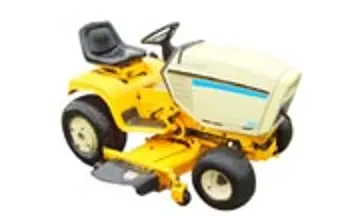

Cub Cadet 2084 garden tractor.
