Cub Cadet 2086

The Cub Cadet 2086 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 617 cc 37.65 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Sundstrand. Operating weight: 1139 lbs*Weight with 60-inch mower deck. 516 kg.

Overview

	1996 - 1997 Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor

Cub Cadet 2086 Engine
20HP Kawasaki 617cc 2-cyl gasoline
Fuel tank	5 gal 18.9 L
Engine details ...

Cub Cadet 2086 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Clutch	electric
Rear PTO Type	2000
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	51.6 inches 131 cm
Weight	1139 lbs 516 kg
Front tire	18x8.5-8
Rear tire	26x12.0-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	440
Battery volts	12

References
Full Line published in 1996, by Cub Cadet
Garden & Super Garden Tractors published in 1996, by Cub Cadet

Engine

Engine Detail — 617 cc / 37.65 ci Gasoline

Manufacturer	Kawasaki FD620D
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled horizontal-shaft V-Twin
Displacement	617 cc 37.65 ci
Bore/Stroke	2.99x2.66 inches 76 x 68 mm
Power (gross)	20 hp 14.9 kW
Starter	electric
Starter volts	12
Oil capacity	1.9 qts 1.8 L

Transmission

Transmission — Sundstrand

Transmission	Sundstrand
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Cub Cadet 2086 Tires
Lawn/turf front	18x8.5-8
Lawn/turf rear	26x12.0-12

Dimensions
Wheelbase	51.6 inches 131 cm
Length	78.5 inches 199 cm
Width	43.5 inches 110 cm
Height (steering wheel)	47.5 inches 120 cm
Weight	1139 lbs*Weight with 60-inch mower deck. 516 kg

Attachments

Attachment overview
46" mid-mount mower deck
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

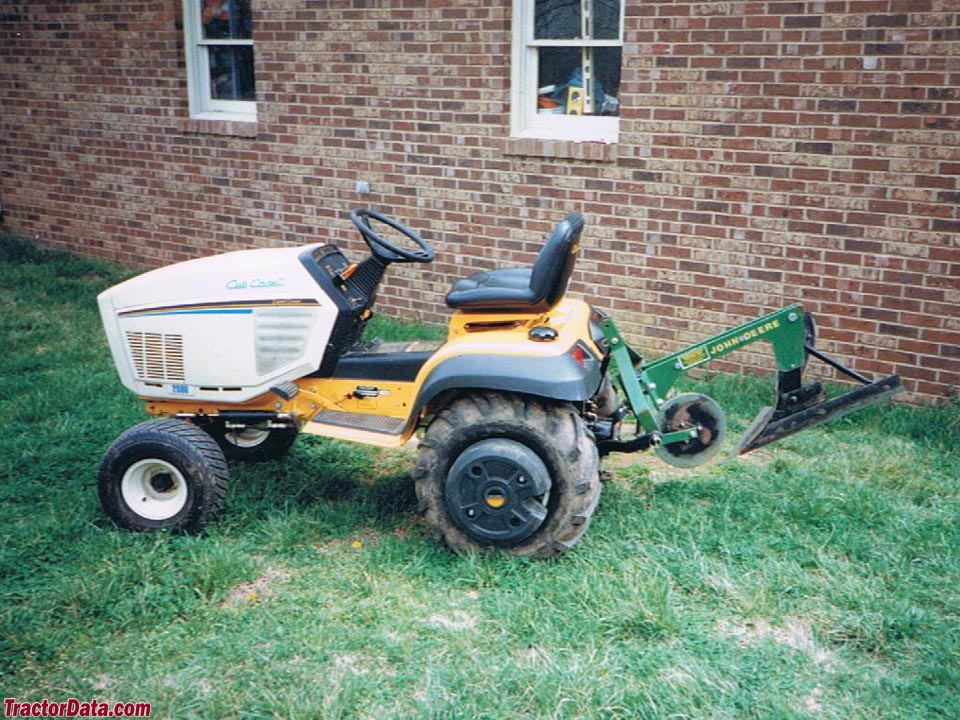

Cub Cadet 2086 with three-point mounted plow.

Cub Cadet 2086 with three-point mounted plow.
