Cub Cadet 3204
The Cub Cadet 3204 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 622 cc 38 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: infinite forward and reverse. Operating weight: 795 lbs 360 kg.
Engine Power
Gasoline (gross): 20 hp / 14.9 kW
Fuel & Capacities
4.5 gal
17.0 L
Transmission
infinite forward and reverse
Operating Weight
795 lbs
360 kg
Overview
 | 2001 - 2003
3000 SeriesGarden tractor
3000 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Cub Cadet 3204 Engine | |
|---|---|
20HP Kohler 622cc 2-cyl gasoline | |
Fuel tank | 4.5 gal
17.0 L |
Engine details ...  | |
Cub Cadet 3204 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | power |
External disk brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | 0 (optional) |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.5 inches
125 cm |
Weight | 795 lbs
360 kg |
Front tire | 16x6.5 |
Rear tire | 23x9.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 435 |
Battery volts | 12 |
References | |
|---|---|
 | |
Outdoor Power Equipment 2003 published by Cub Cadet |
Engine
Engine Detail — 622 cc / 38 ci Gasoline
Manufacturer | Kohler |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled V-twin OHV |
Displacement | 622 cc
38 ci |
Power (gross) | 20 hp
14.9 kW |
Compression | 8.5:1 |
Idle RPM | 1200-3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Sparkplug | Champion RC12YC |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 6 qts
5.7 L |
 | |
Dimensions
Cub Cadet 3204 Tires | |
|---|---|
Lawn/turf front | 16x6.5 |
Lawn/turf rear | 23x9.5 |
Dimensions | |
|---|---|
Wheelbase | 49.5 inches
125 cm |
Length | 74 inches
187 cm |
Width | 42 inches
106 cm |
Height | 43.6 inches
110 cm |
Weight | 795 lbs
360 kg |
Ground clearance | 6 inches
15 cm |
Attachments
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos
Cub Cadet 3204

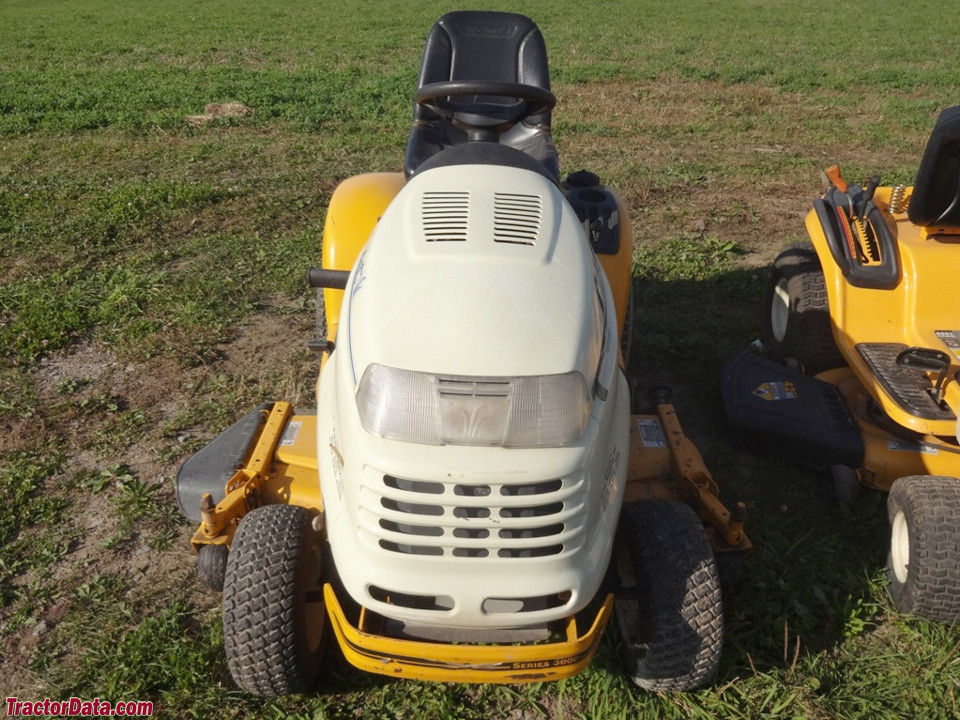

Cub Cadet 3204.

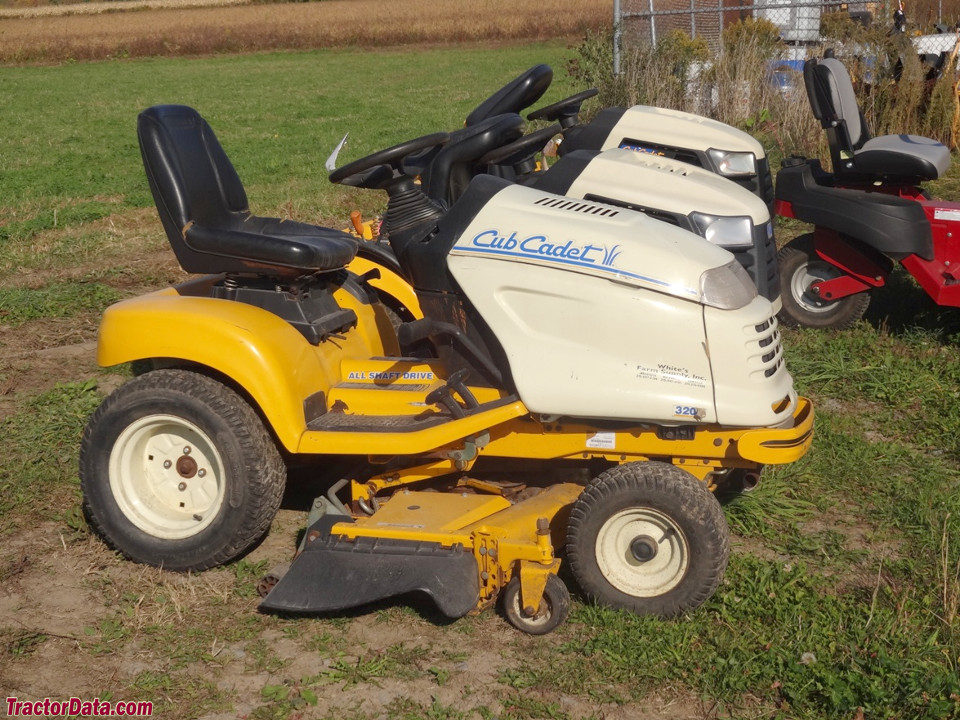

Cub Cadet 3204.

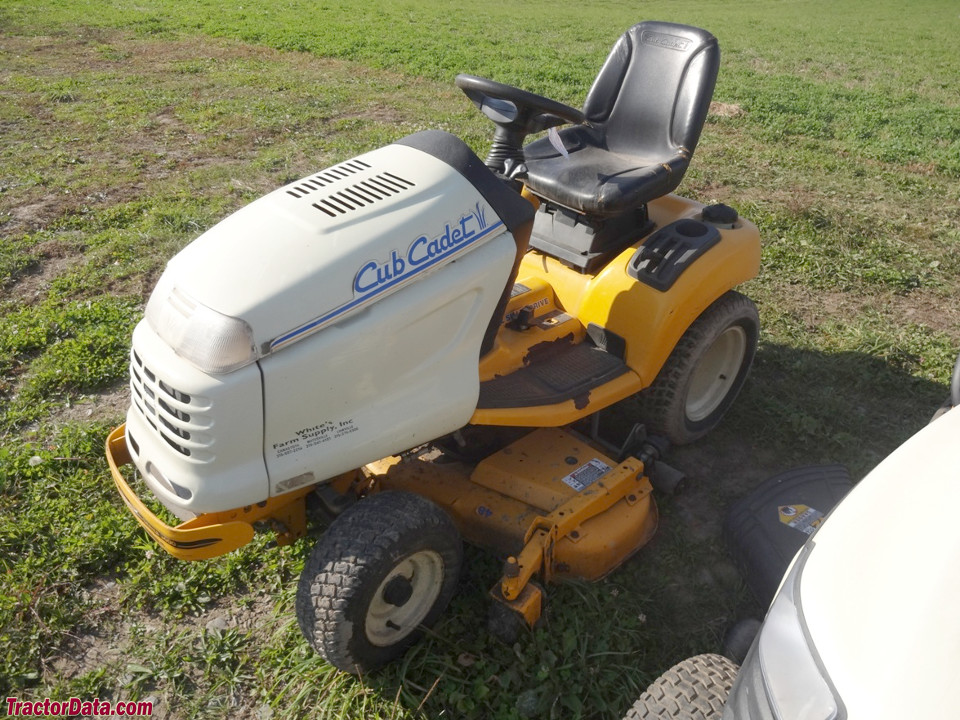

Cub Cadet 3204.
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet 3204 based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 3204.
Estimated Continuous Field Runtime: 4.3 hrs
Approximately 4.3 hours of continuous field operation at ~75% rated power on a full tank (4.5 gal / 17 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet 3204 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 3204.
Converted Equivalents:
Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS
Direct Competitor Comparison
Compare Cub Cadet 3204 against same-era industry alternatives in the same horsepower class.
Current Model
Cub Cadet Lawn Tractors
Cub Cadet 3204
Engine Power:Gasoline (gross): 20 hp / 14.9 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 184 Lo-Boy
Engine Power:18
Production Years:1977 - 1980
