Cub Cadet GT 1054

The Cub Cadet GT 1054 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The rated power output is 26 hp 19.4 kW. Transmission: Hydro-Gear. Operating weight: 587 lbs*Weight with mower deck. 266 kg.

Overview

	2013 - 2014 1000 SeriesGarden tractor
2013 - 2014
1000 Series
Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor

Cub Cadet GT 1054 Engine
26HP Kohler 724cc 2-cyl gasoline
Fuel tank	3.3 gal 12.5 L
Engine details ...

Cub Cadet GT 1054 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	49 inches 124 cm
Weight	587 lbs 266 kg
Front tire	16x6.5-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	25
Battery CCA	260
Battery volts	12

References
Series 1000 published in 2014, by Cub Cadet

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer	Kohler SV740
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	724 cc 44.2 ci
Bore/Stroke	3.27x2.64 inches 83 x 67 mm
Power	26 hp 19.4 kW
Starter	electric
Starter volts	12
Oil capacity	1.9 qts 1.8 L

Transmission

Transmission — Hydro-Gear

Transmission	Hydro-Gear
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.1 qts 2.0 L

Dimensions

Cub Cadet GT 1054 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	49 inches 124 cm
Length	68 inches 172 cm
Weight	587 lbs*Weight with mower deck. 266 kg

Attachments

54" Mower deck
Type	mid-mount Cub Cadet
	3-blade
Cutting width	54 inches 137 cm
Cut height	1.5 to 4 inch 3 to 10 cm

Photos

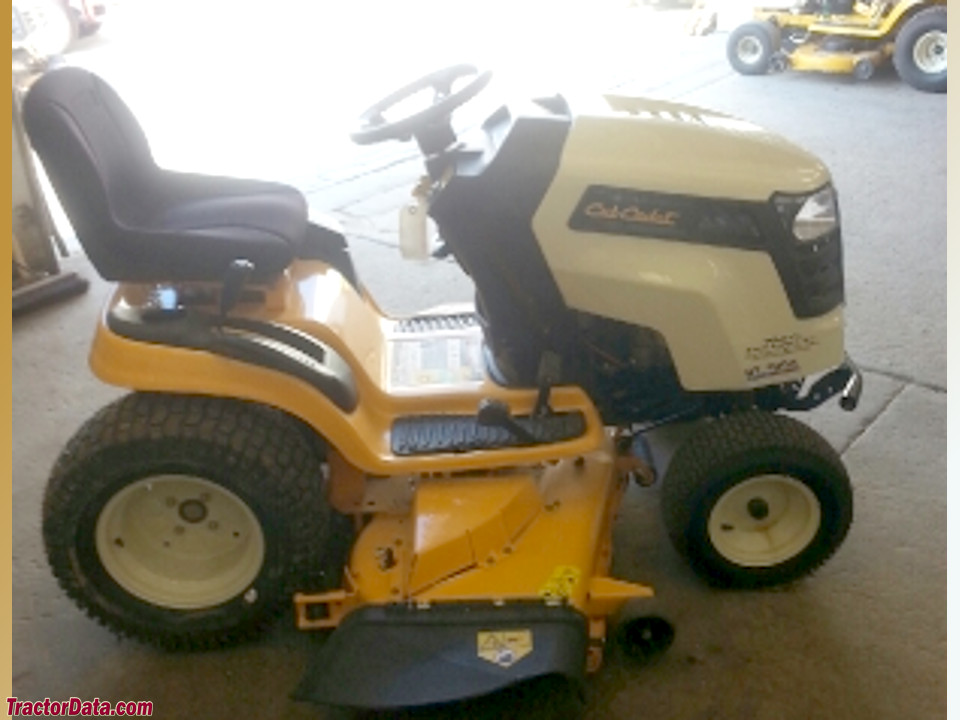

Cub Cadet GT 1054

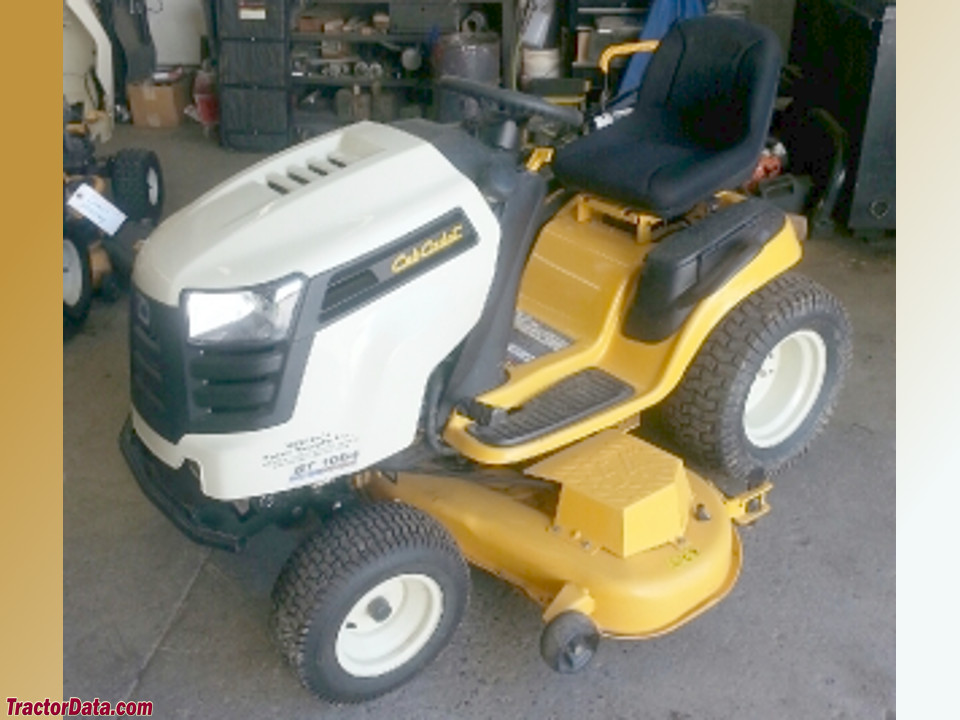

Cub Cadet GT 1054
