Cub Cadet GT 1554
The Cub Cadet GT 1554 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (gross): 27 hp / 20.1 kW. Transmission: infinite forward and reverse. Operating weight: 587 lbs*Weight with mower deck. 266 kg.
Engine Power
Gasoline (gross): 27 hp / 20.1 kW
Fuel & Capacities
2.25 gal
8.5 L
Transmission
infinite forward and reverse
Operating Weight
587 lbs*Weight with mower deck.
266 kg
Overview
 | 2006 - 2008
1500 SeriesGarden tractor
1500 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Original price was $3,000 in 2008 | |
Cub Cadet GT 1554 Engine | |
|---|---|
27HP Kohler 724cc 2-cyl gasoline | |
Fuel tank | 2.25 gal
8.5 L |
Engine details ...  | |
Cub Cadet GT 1554 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Dry disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49 inches
124 cm |
Weight | 587 lbs
266 kg |
Front tire | 16x7.5-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 235 |
Battery volts | 12 |

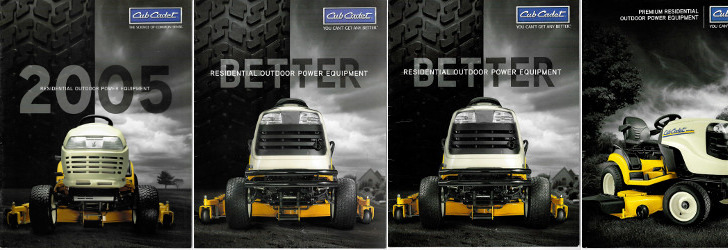

References | |
|---|---|
 | |
Residential Outdoor Power Equipment 2005 published by Cub Cadet* | |
Better Residential Outdoor Power Equipment published in 2006, by Cub Cadet | |
Better Residential Outdoor Power Equipment published in 2007, by Cub Cadet | |
Premium Residential Outdoor Power Equipment published in 2008, by Cub Cadet | |
*Publication contains known errors. |
Engine
Engine Detail — 724 cc / 44.2 ci Gasoline
Manufacturer | Kohler CV740 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-twin |
Displacement | 724 cc
44.2 ci |
Bore/Stroke | 3.27x2.64 inches
83 x 67 mm |
Power (gross) | 27 hp
20.1 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.9 qts
1.8 L |
Transmission
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Cub Cadet GT 1554 Tires | |
|---|---|
Lawn/turf front | 16x7.5-8 |
Lawn/turf rear | 23x10.5-12 |
Dimensions | |
|---|---|
Wheelbase | 49 inches
124 cm |
Length | 68 inches
172 cm |
Weight | 587 lbs*Weight with mower deck.
266 kg |
Rear axle | 1 inch diameter
25 mm |
Attachments
Attachment overview | |
|---|---|
54" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
54" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade | |
Cutting width | 54 inches
137 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |

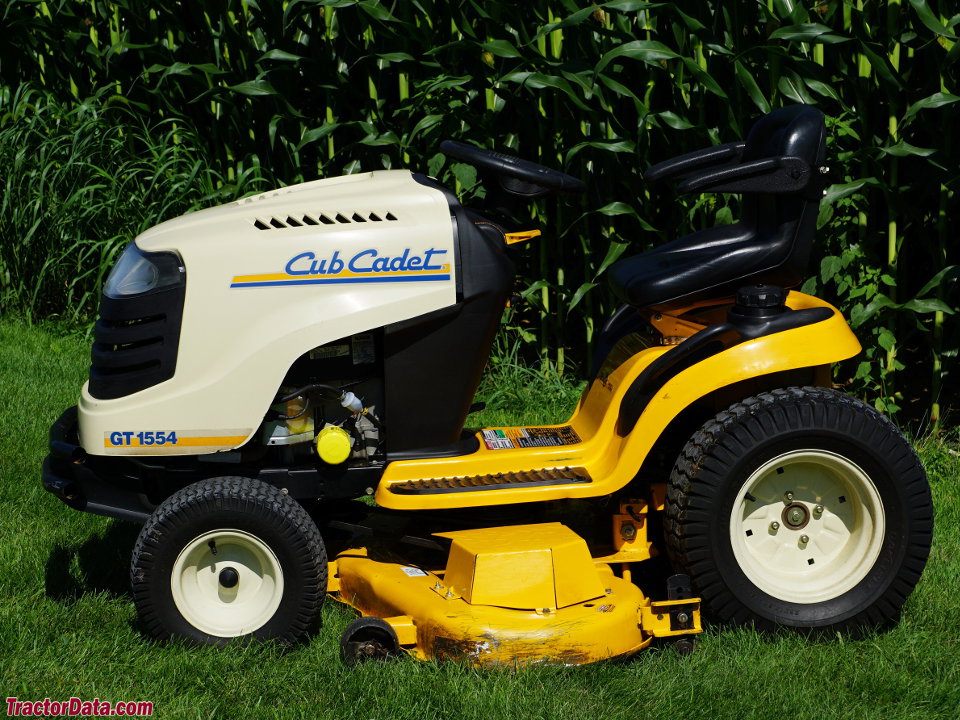

Photos
Cub Cadet GT 1554
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet GT 1554 based on its 27 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet GT 1554.
Estimated Continuous Field Runtime: 1.6 hrs
Approximately 1.6 hours of continuous field operation at ~75% rated power on a full tank (2.3 gal / 8.5 L).
Estimated 75% Load Fuel Burn~1.4 gal/hr (5.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet GT 1554 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet GT 1554.
Converted Equivalents:
Horsepower (HP)27 hp
Kilowatts (kW)20.1 kW
Metric Horsepower (PS / CV)27.4 PS
Direct Competitor Comparison
Compare Cub Cadet GT 1554 against same-era industry alternatives in the same horsepower class.
Current Model
Cub Cadet Lawn Tractors
Cub Cadet GT 1554
Engine Power:Gasoline (gross): 27 hp / 20.1 kW
★ Baseline Reference
