Cub Cadet GT 2186

The Cub Cadet GT 2186 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The rated power output is 20 hp 14.9 kW. Transmission: infinite forward and reverse.

Overview

	2004 2000 SeriesLawn tractor
2004
2000 Series
Lawn tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Lawn tractor

Cub Cadet GT 2186 Engine
20HP Kohler 624cc 2-cyl gasoline
Fuel tank	2.1 gal 7.9 L
Engine details ...

Cub Cadet GT 2186 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Internal expanding brakes
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	47 inches 119 cm
Front tire	16x6.5-8
Rear tire	23x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery volts	12

References
Outdoor Power Equipment published in 2004, by Cub Cadet

Engine

Engine Detail — 624 cc / 38.1 ci Gasoline

Manufacturer	Kohler Command
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	624 cc 38.1 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power (gross)	20 hp 14.9 kW
Rated RPM	3600
Idle RPM	1200-3600
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	2 qts 1.9 L
Oil change	100 h

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	6 qts 5.7 L

Dimensions

Cub Cadet GT 2186 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x9.5-12

Dimensions
Wheelbase	47 inches 119 cm
Length	72 inches 182 cm
Width	49 inches 124 cm
Height (steering wheel)	42 inches 106 cm
Ground clearance	6 inches 15 cm
Front tread	31.5 inches 80 cm
Rear tread	30.25 inches 76 cm

Attachments

Attachment overview
44" mid-mount mower deck
48" mid-mount mower deck

Photos

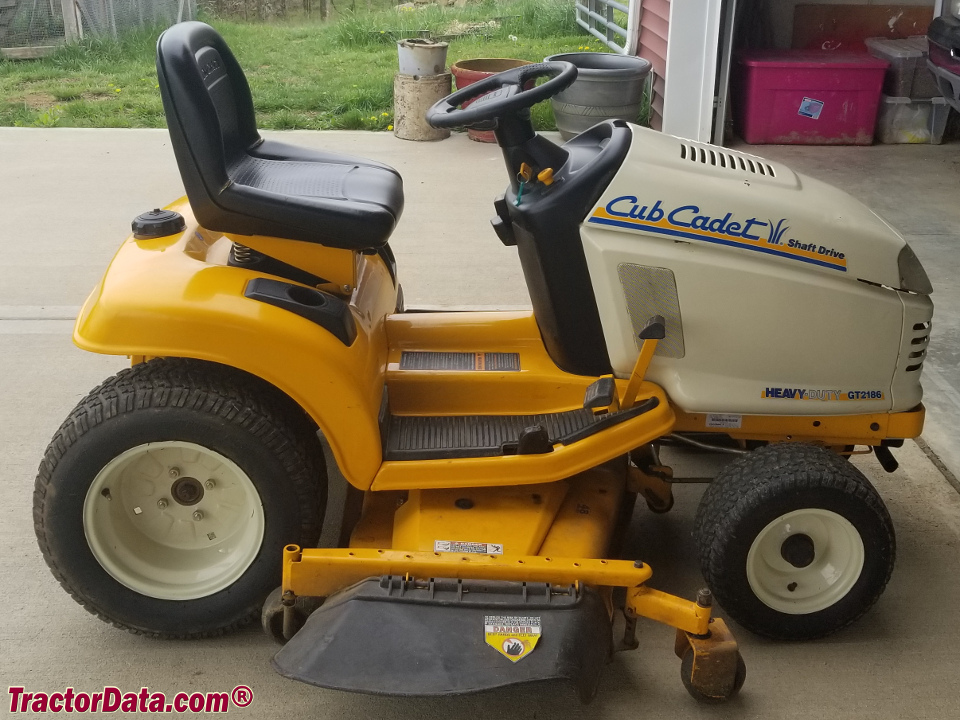

Cub Cadet GT 2186 garden tractor with 48-inch mower deck.

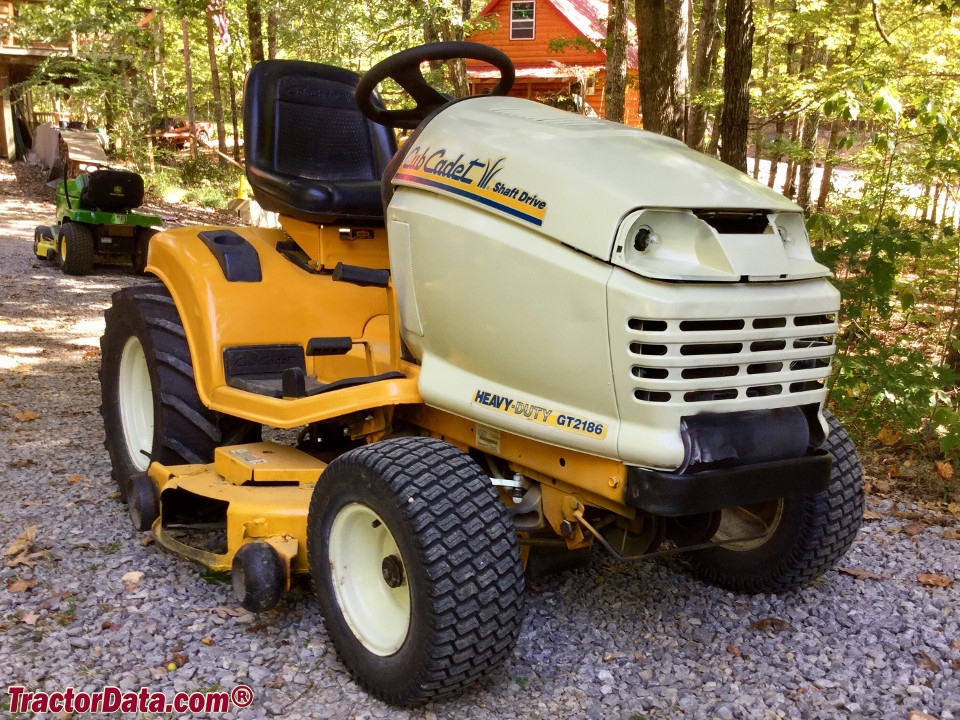

Cub Cadet GT 2186 garden tractor with 44-inch mower deck.
