Cub Cadet GT 2542
The Cub Cadet GT 2542 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Hydro-Gear BDU-10. Operating weight: 735 lbs*Weight with mower deck. 333 kg.
Engine Power
Gasoline (gross): 20 hp / 14.9 kW
Fuel & Capacities
2.25 gal
8.5 L
Transmission
Hydro-Gear BDU-10
Operating Weight
735 lbs*Weight with mower deck.
333 kg
Overview
 | 2006 - 2010
2500 SeriesGarden tractor
2500 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Cub Cadet GT 2542 Engine | |
|---|---|
20HP Kohler 624cc 2-cyl gasoline | |
Fuel tank | 2.25 gal
8.5 L |
Engine details ...  | |
Cub Cadet GT 2542 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Dry disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47 inches
119 cm |
Weight | 735 lbs
333 kg |
Front tire | 15x6 |
Rear tire | 23x9.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 275 |
Battery volts | 12 |
References | |
|---|---|
 | |
Better Residential Outdoor Power Equipment published in 2006, by Cub Cadet | |
Better Residential Outdoor Power Equipment published in 2007, by Cub Cadet | |
Premium Residential Outdoor Power Equipment published in 2008, by Cub Cadet |
Engine
Engine Detail — 624 cc / 38.1 ci Gasoline
Manufacturer | Kohler CH20S |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft V-twin |
Displacement | 624 cc
38.1 ci |
Bore/Stroke | 3.03x2.64 inches
77 x 67 mm |
Power (gross) | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — Hydro-Gear BDU-10
Transmission | Hydro-Gear BDU-10 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 5.7 qts
5.4 L |
 | |
Dimensions
Cub Cadet GT 2542 Tires | |
|---|---|
Lawn/turf front | 15x6 |
Lawn/turf rear | 23x9.5 |
Dimensions | |
|---|---|
Wheelbase | 47 inches
119 cm |
Length | 72 inches
182 cm |
Weight | 735 lbs*Weight with mower deck.
333 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade | |
The 2500 series was compatible with the 30-inch tiller (190-002). |
42" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade with manual spring-assisted lift | |
Cutting width | 42 inches
106 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Photos

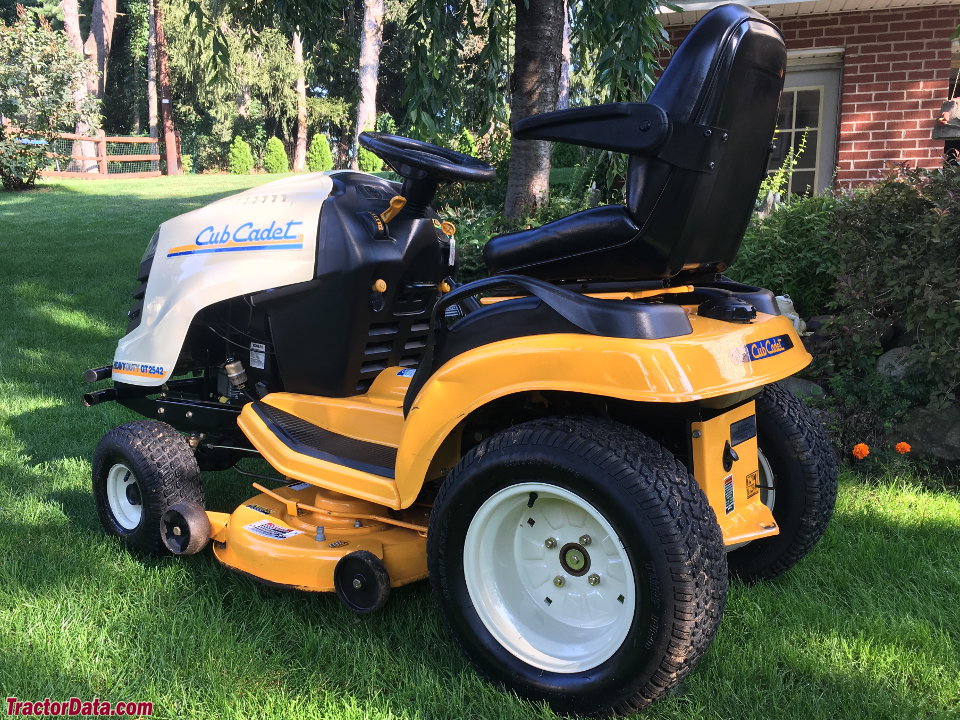

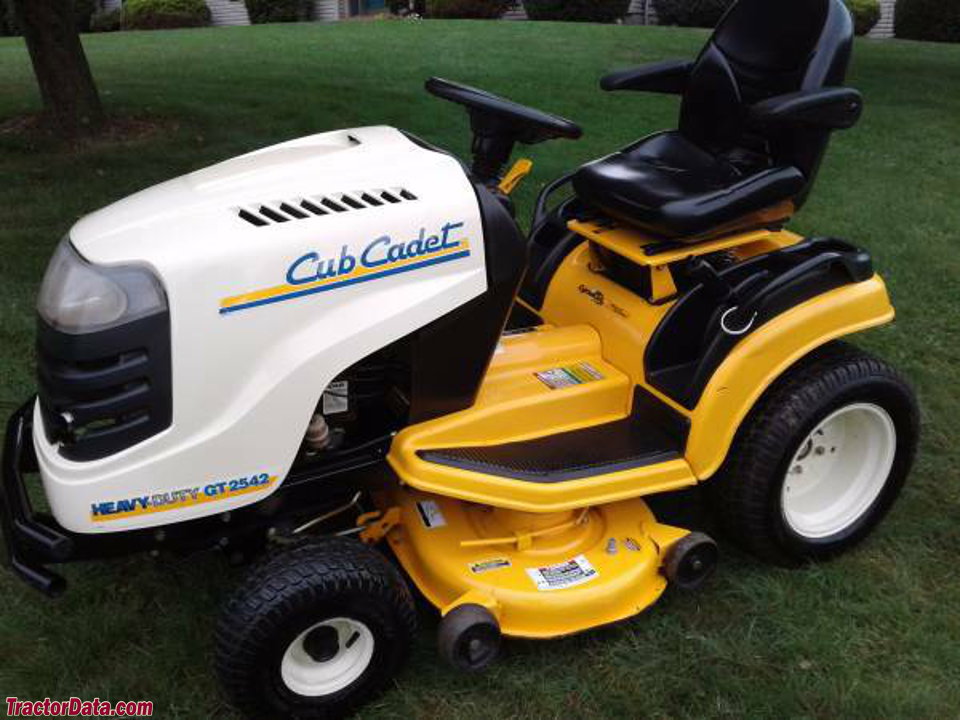

Cub Cadet GT 2542
Cub Cadet GT 2542
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet GT 2542 based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet GT 2542.
Estimated Continuous Field Runtime: 2.2 hrs
Approximately 2.2 hours of continuous field operation at ~75% rated power on a full tank (2.3 gal / 8.5 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet GT 2542 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet GT 2542.
Converted Equivalents:
Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS
Direct Competitor Comparison
Compare Cub Cadet GT 2542 against same-era industry alternatives in the same horsepower class.
Current Model
Cub Cadet Lawn Tractors
Cub Cadet GT 2542
Engine Power:Gasoline (gross): 20 hp / 14.9 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 184 Lo-Boy
Engine Power:18
Production Years:1977 - 1980
