Cub Cadet GTX 1054

The Cub Cadet GTX 1054 is a tractor produced by Cub Cadet Lawn Tractors. The rated power output is 27 hp 20.1 kW. Transmission: infinite forward and reverse. Operating weight: 587 lbs (with deck) 266 kg.

Overview

	2010 - 2014 LTX 1000 SeriesLawn tractor
2010 - 2014
LTX 1000 Series
Lawn tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Lawn tractor
Original price	$3,299 (2011)

Cub Cadet GTX 1054 Engine
27HP Kohler 2-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Cub Cadet GTX 1054 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual sector and pinion
Open operator station. High-back seat with arm rests and six-position adjustment.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	49 inches 124 cm
Weight	587 lbs 266 kg
Front tire	16x7.5
Rear tire	23x10.5
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	235
Battery volts	12

References
Series 1000 published in 2011, by Cub Cadet
Series 1000 published in 2012, by Cub Cadet
Series 1000 published in 2013, by Cub Cadet

Engine

Engine Detail — Gasoline

Manufacturer	Kohler Courage
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled V-twin OHV
Power (gross)	27 hp 20.1 kW
Starter	electric
Starter volts	12
Oil capacity	1.9 qts 1.8 L

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.1 qts 2.0 L

Dimensions

Cub Cadet GTX 1054 Tires
Lawn/turf front	16x7.5
Lawn/turf rear	23x10.5

Dimensions
Wheelbase	49 inches 124 cm
Length	68 inches 172 cm
Weight	587 lbs (with deck) 266 kg

Attachments

54" Mower deck
Type	mid-mount Cub Cadet
	3-blade with manual lift
Cutting width	54 inches 137 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	6

Photos

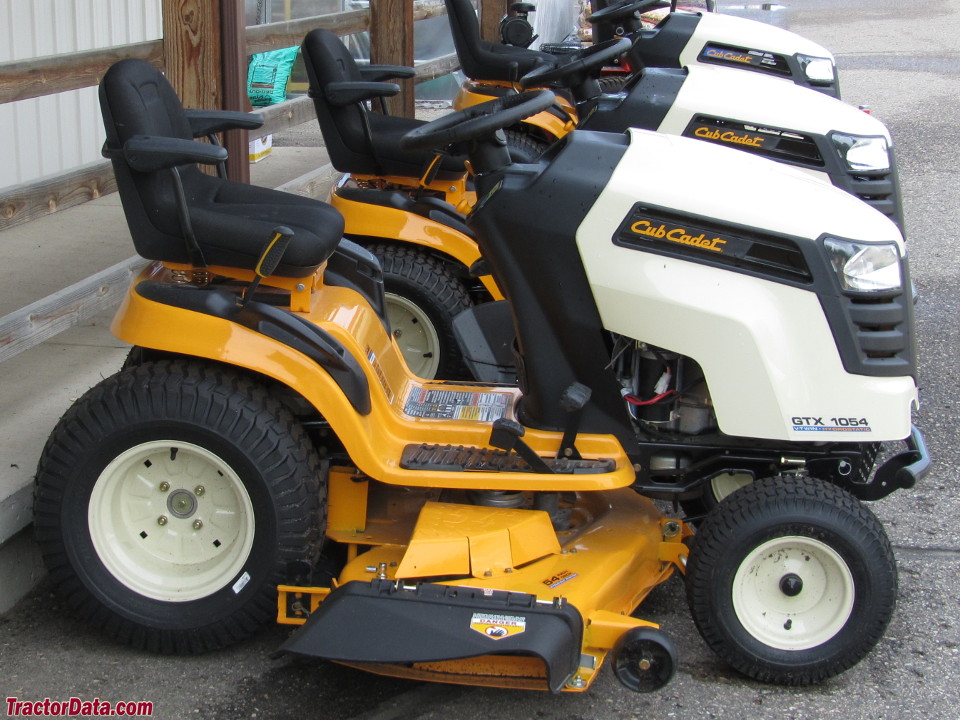

Cub Cadet GTX 1054
