Cub Cadet GTX 2000

The Cub Cadet GTX 2000 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 640 cc 39.1 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Hydro-Gear BDU-10.

Engine Power

Gasoline (gross): 20 hp / 14.9 kW

Fuel & Capacities

3.3 gal 12.5 L

Transmission

Hydro-Gear BDU-10

Overview

	2011 - 2014 Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor

Cub Cadet GTX 2000 Engine
20HP Kohler 640cc 2-cyl gasoline
Fuel tank	3.3 gal 12.5 L
Engine details ...

Cub Cadet GTX 2000 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	electric power
Disc brakes
Open operator station. High-back seat with arm rests and 6-inches of travel.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	50.6 inches 128 cm
Front tire	16x6.5
Rear tire	23x10.5
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	25
Battery CCA	275
Battery volts	12

References

Series 2000 Garden Tractors published in 2014, by Cub Cadet

Engine

Engine Detail — 640 cc / 39.1 ci Gasoline

Manufacturer	Kohler Command CH640
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-Twin
Displacement	640 cc 39.1 ci
Bore/Stroke	3.0x2.6 inches 76 x 66 mm
Power (gross)	20 hp 14.9 kW
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission — Hydro-Gear BDU-10

Transmission	Hydro-Gear BDU-10
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	5.7 qts 5.4 L

Dimensions

Cub Cadet GTX 2000 Tires
Lawn/turf front	16x6.5
Lawn/turf rear	23x10.5

Dimensions
Wheelbase	50.6 inches 128 cm
Length	76 inches 193 cm
Front axle	Cast-iron
Rear axle	1 inch diameter 25 mm

Attachments

Attachment overview
42" mid-mount mower deck
50" mower deck
54" mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

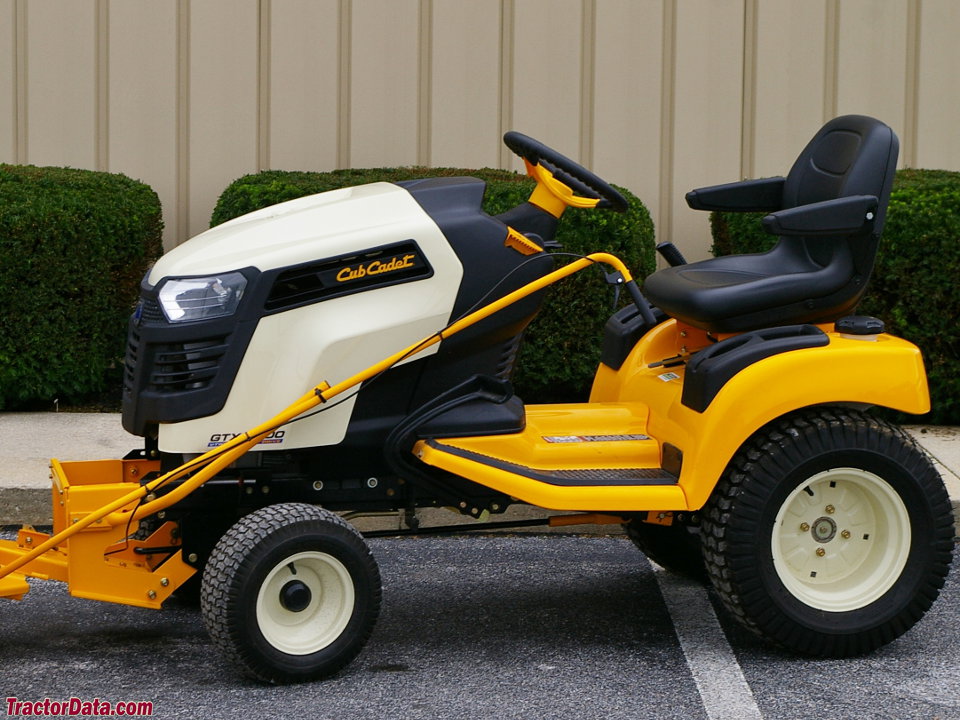

Cub Cadet GTX 2000

Recommended Implements & Sizing Guide

Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet GTX 2000 based on its 20 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet GTX 2000.

Estimated Continuous Field Runtime: 3.2 hrs

Approximately 3.2 hours of continuous field operation at ~75% rated power on a full tank (3.3 gal / 12.5 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Cub Cadet Lawn Tractors Cub Cadet GTX 2000 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet GTX 2000.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)20 hp

Kilowatts (kW)14.9 kW

Metric Horsepower (PS / CV)20.3 PS
