Cub Cadet LGT 1054

The Cub Cadet LGT 1054 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The rated power output is 26 hp 19.4 kW. Transmission: Hydro-Gear 320-0610. Operating weight: 567 lbs 257 kg.

Overview

	2012 - 2014 1000 SeriesLawn tractor
2012 - 2014
1000 Series
Lawn tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Lawn tractor

Cub Cadet LGT 1054 Engine
26HP Kohler 724cc 2-cyl gasoline
Fuel tank	3.3 gal 12.5 L
Engine details ...

Cub Cadet LGT 1054 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	47.5 inches 120 cm
Weight	567 lbs 257 kg
Front tire	16x6.5-8
Rear tire	22x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	230
Battery volts	12

References
Series 1000 published in 2012, by Cub Cadet
Series 1000 published in 2013, by Cub Cadet
Series 1000 published in 2014, by Cub Cadet

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer	Kohler SV735
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	724 cc 44.2 ci
Bore/Stroke	3.27x2.64 inches 83 x 67 mm
Power	26 hp 19.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear 320-0610

Transmission	Hydro-Gear 320-0610
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2 qts 1.9 L

Dimensions

Cub Cadet LGT 1054 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	22x9.5-12

Dimensions
Wheelbase	47.5 inches 120 cm
Length	69 inches 175 cm
Weight	567 lbs 257 kg

Attachments

54" Mower deck
Type	mid-mount Cub Cadet
	3-blade with manual lift
Cutting width	54 inches 137 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	6

Photos

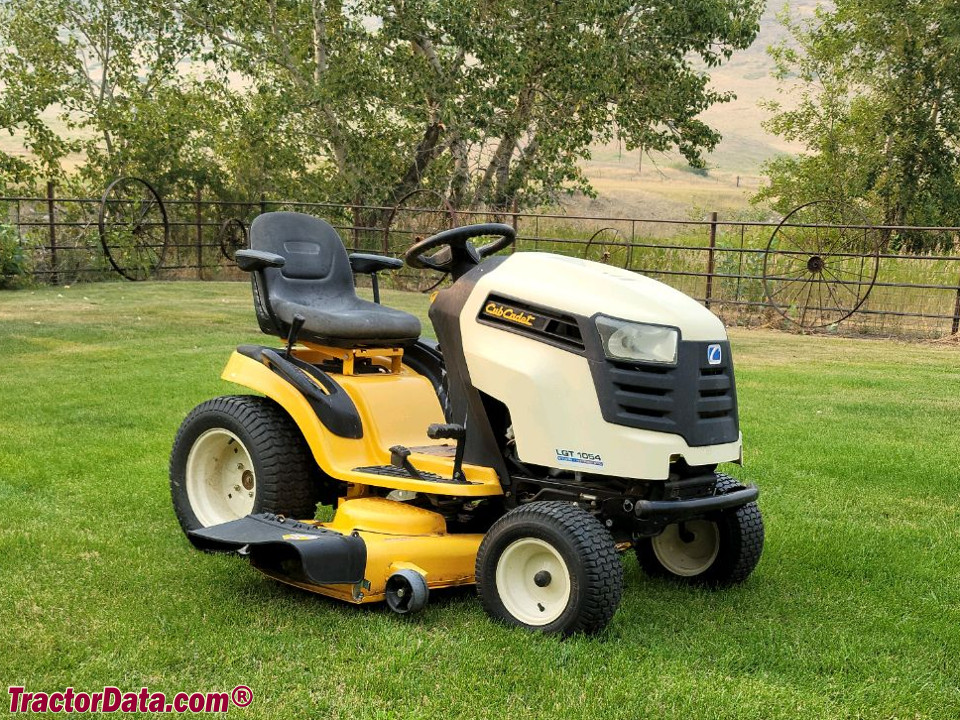

Cub Cadet LGT 1054
