Cub Cadet LGTX 1054
The Cub Cadet LGTX 1054 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (listed): 27 hp / 20.1 kW. Transmission: Hydro-Gear 320-0610. Operating weight: 567 lbs 257 kg.
Engine Power
Gasoline (listed): 27 hp / 20.1 kW
Fuel & Capacities
3.3 gal
12.5 L
Transmission
Hydro-Gear 320-0610
Operating Weight
567 lbs
257 kg
Overview
 | 2012 - 2014
1000 SeriesLawn tractor
1000 Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Cub Cadet LGTX 1054 Engine | |
|---|---|
27HP Kohler 724cc 2-cyl gasoline | |
Fuel tank | 3.3 gal
12.5 L |
Engine details ...  | |
Cub Cadet LGTX 1054 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47.5 inches
120 cm |
Weight | 567 lbs
257 kg |
Front tire | 16x6.5-8 |
Rear tire | 22x9.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 25 |
Battery CCA | 260 |
Battery volts | 12 |
References | |
|---|---|
 | |
Series 1000 published in 2012, by Cub Cadet | |
Series 1000 published in 2013, by Cub Cadet | |
Series 1000 published in 2014, by Cub Cadet |
Engine
Engine Detail — 724 cc / 44.2 ci Gasoline
Manufacturer | Kohler SV740 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 724 cc
44.2 ci |
Bore/Stroke | 3.27x2.64 inches
83 x 67 mm |
Power | 27 hp
20.1 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Hydro-Gear 320-0610
Transmission | Hydro-Gear 320-0610 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 2 qts
1.9 L |
 | |
Dimensions
Cub Cadet LGTX 1054 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 22x9.5-12 |
Dimensions | |
|---|---|
Wheelbase | 47.5 inches
120 cm |
Length | 69 inches
175 cm |
Weight | 567 lbs
257 kg |
Attachments
54" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade with manual lift | |
Cutting width | 54 inches
137 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Cut positions | 6 |
Photos

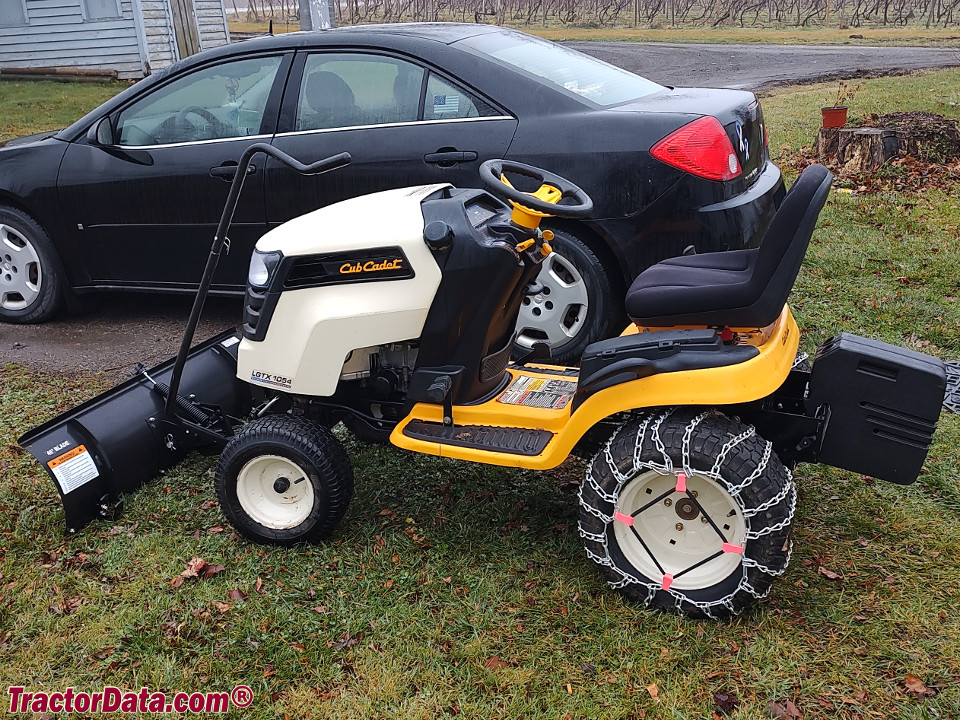

Cub Cadet LGTX 1054
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet LGTX 1054 based on its 27 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet LGTX 1054.
Estimated Continuous Field Runtime: 2.4 hrs
Approximately 2.4 hours of continuous field operation at ~75% rated power on a full tank (3.3 gal / 12.5 L).
Estimated 75% Load Fuel Burn~1.4 gal/hr (5.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet LGTX 1054 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet LGTX 1054.
Converted Equivalents:
Horsepower (HP)27 hp
Kilowatts (kW)20.1 kW
Metric Horsepower (PS / CV)27.4 PS
Direct Competitor Comparison
Compare Cub Cadet LGTX 1054 against same-era industry alternatives in the same horsepower class.
Current Model
Cub Cadet Lawn Tractors
Cub Cadet LGTX 1054
Engine Power:Gasoline (listed): 27 hp / 20.1 kW
★ Baseline Reference
