Cub Cadet RBH 1200

The Cub Cadet RBH 1200 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 568 cc 34.7 ci engine. The listed engine power is Gasoline (listed): 20 hp / 14.9 kW. Transmission: Hydro-Gear.

Engine Power

Gasoline (listed): 20 hp / 14.9 kW

Fuel & Capacities

Gasoline

Transmission

Hydro-Gear

Overview

	1999 - 2004 Rear-discharge mower

Production
Manufacturer	Cub Cadet (a part of MTD)
Rear-discharge mower

Cub Cadet RBH 1200 Engine
14.9KW Briggs & Stratton 568cc 2-cyl gasoline
Engine details ...

Cub Cadet RBH 1200 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Open operator station.

Dimensions & Tires
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 568 cc / 34.7 ci Gasoline

Manufacturer	Briggs & Stratton 351777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	568 cc 34.7 ci
Power	20 hp 14.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear

Transmission	Hydro-Gear
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Cub Cadet RBH 1200 Tires

Dimensions

Attachments

48" Mower deck
Type	mid-mount Cub Cadet
	2-blade
Cutting width	48 inches 121 cm

Photos

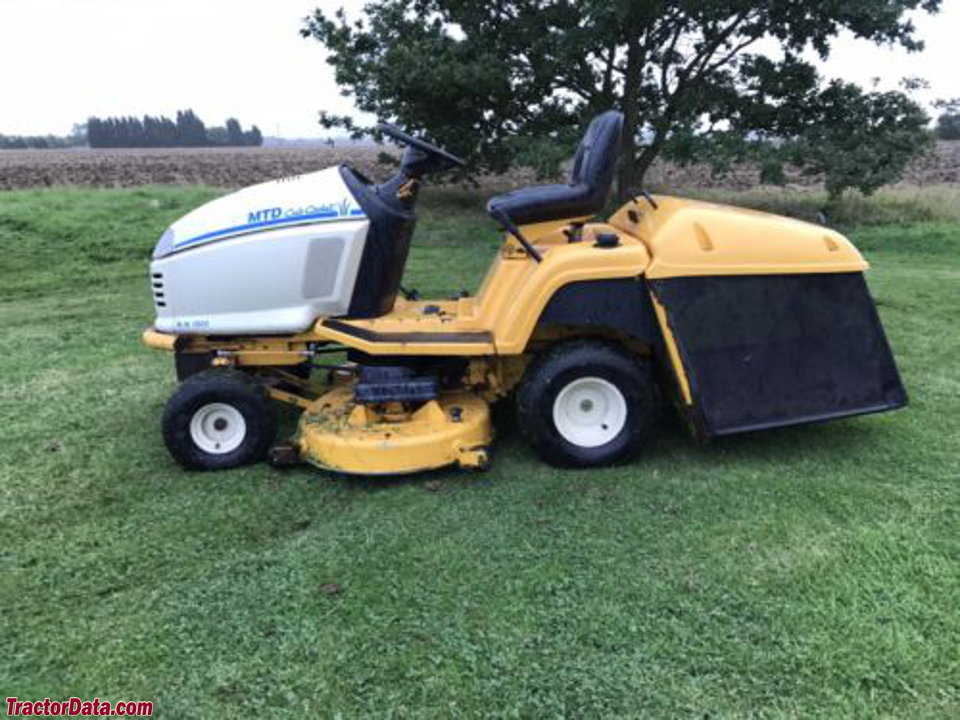

Cub Cadet RBH 1200

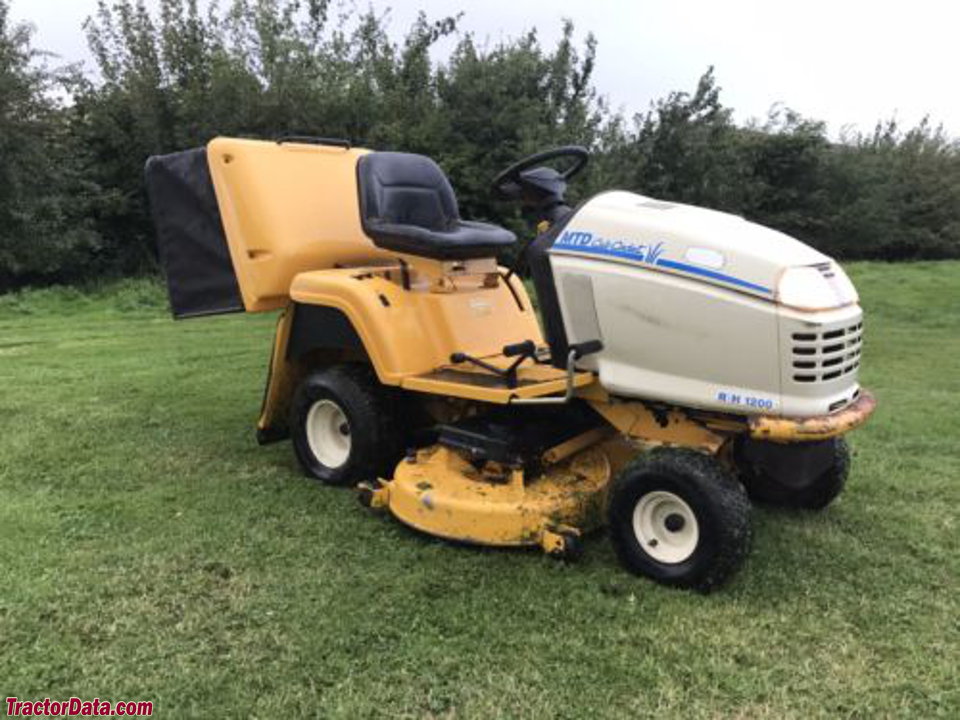

Cub Cadet RBH 1200.

Recommended Implements & Sizing Guide

Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet RBH 1200 based on its 20 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet RBH 1200.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Cub Cadet Lawn Tractors Cub Cadet RBH 1200 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet RBH 1200.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)20 hp

Kilowatts (kW)14.9 kW

Metric Horsepower (PS / CV)20.3 PS

Direct Competitor Comparison

Compare Cub Cadet RBH 1200 against same-era industry alternatives in the same horsepower class.
