Cub Cadet SLTX 1054

The Cub Cadet SLTX 1054 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 725 cc 44.24 ci engine. The listed engine power is Gasoline (gross): 26 hp / 19.4 kW. Transmission: Hydro-Gear. Operating weight: 567 lbs*Weight with mower deck. 257 kg.

Engine Power

Gasoline (gross): 26 hp / 19.4 kW

Fuel & Capacities

3.3 gal 12.5 L

Transmission

Hydro-Gear

Operating Weight

567 lbs*Weight with mower deck. 257 kg

Overview

	2009 - 2014 LTX 1000 SeriesLawn tractor LTX 1000 Series Lawn tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Lawn tractor
Original price was $2,799 in 2011

Cub Cadet SLTX 1054 Engine
26HP Kohler 725cc 2-cyl gasoline
Fuel tank	3.3 gal 12.5 L
Engine details ...

Cub Cadet SLTX 1054 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual sector and pinion
Open operator station. High-back Cub Comfort seat with arm rests. Six inches travel with 12 positions.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	47.5 inches 120 cm
Weight	567 lbs 257 kg
Front tire	16x6.5
Rear tire	22x9.5
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	260
Battery volts	12

References

Series 1000 published in 2009, by Cub Cadet
Series 1000 published in 2011, by Cub Cadet

Engine

Engine Detail — 725 cc / 44.24 ci Gasoline

Manufacturer	Kohler SV735
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-twin
Displacement	725 cc 44.24 ci
Bore/Stroke	3.27x2.64 inches 83 x 67 mm
Power (gross)	26 hp 19.4 kW
Starter	electric
Starter volts	12
Oil capacity	1.9 qts 1.8 L

Transmission

Transmission — Hydro-Gear

Transmission	Hydro-Gear
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2 qts 1.9 L

Dimensions

Cub Cadet SLTX 1054 Tires
Lawn/turf front	16x6.5
Lawn/turf rear	22x9.5

Dimensions
Wheelbase	47.5 inches 120 cm
Length	69 inches 175 cm
Weight	567 lbs*Weight with mower deck. 257 kg

Attachments

Attachment overview
54" mid-mount mower deck
Snowblower
Blade

54" Mower deck
Type	mid-mount Cub Cadet
	3-blade with manual lift
Cutting width	54 inches 137 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	6

Photos

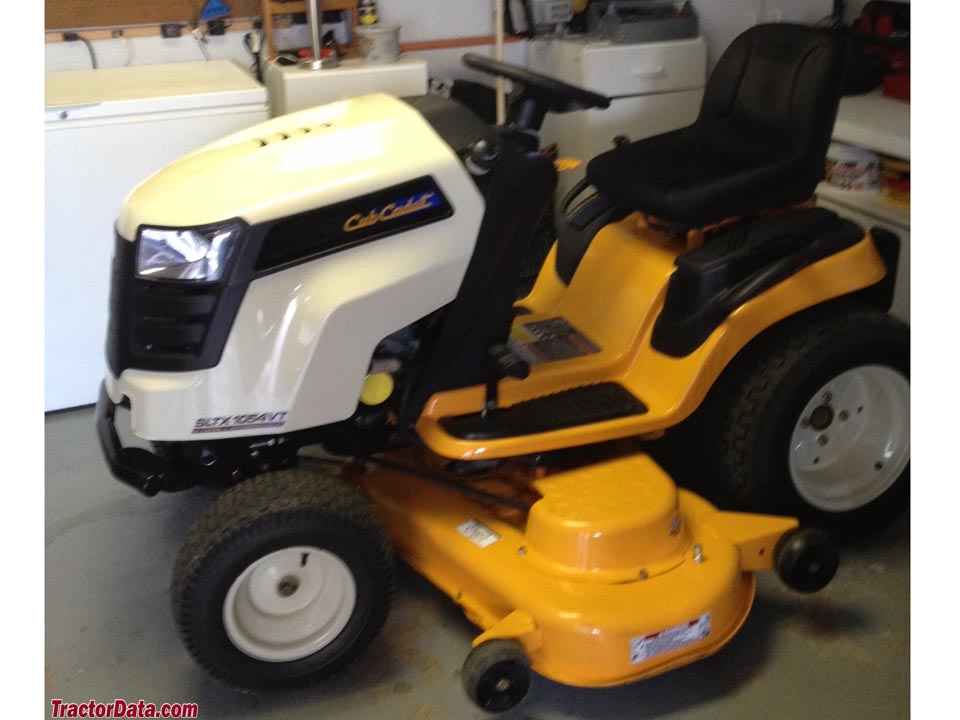

Cub Cadet SLTX 1054

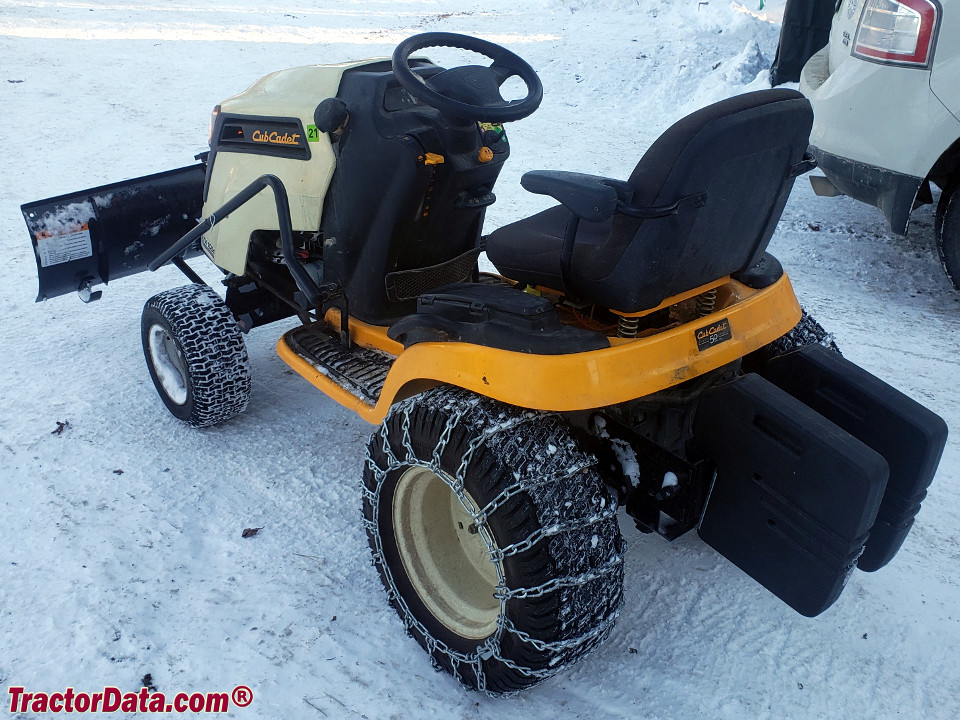

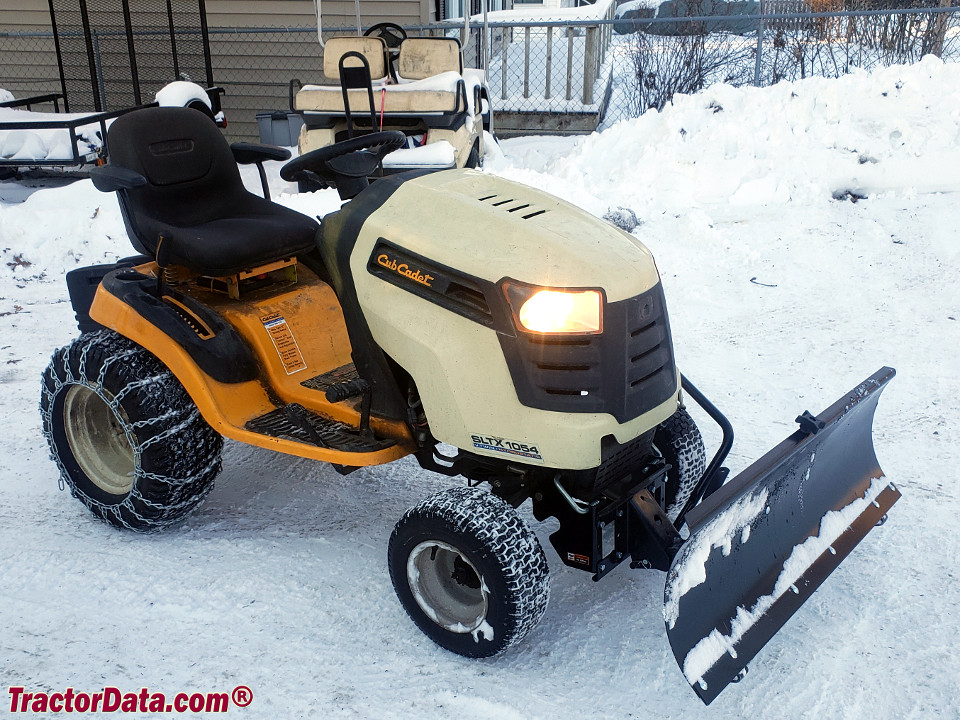

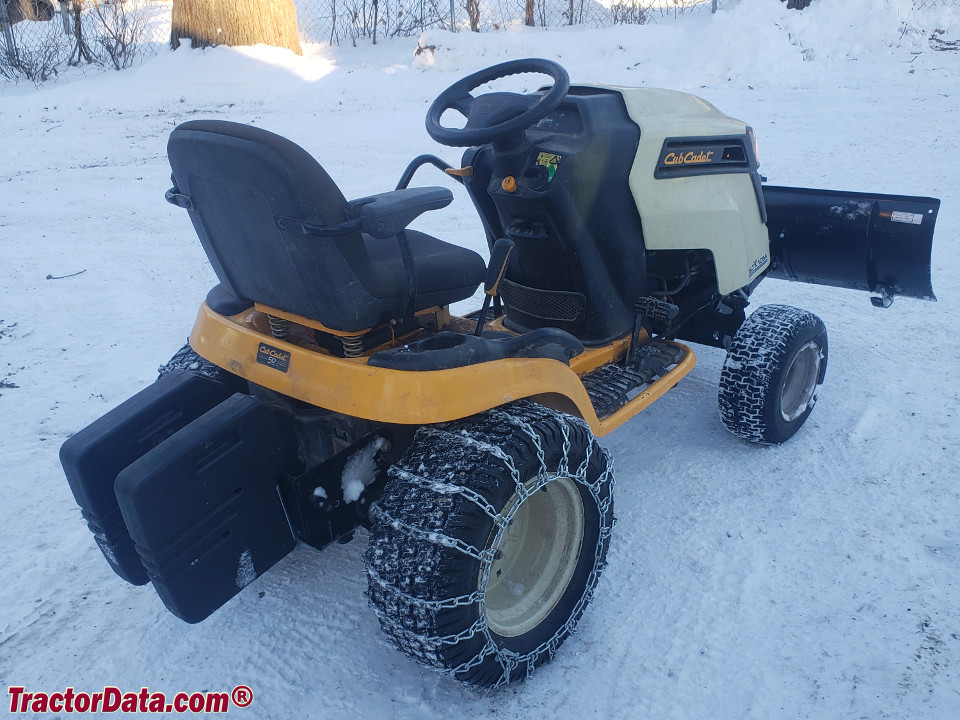

Cub Cadet SLTX1054 with snow blade.

Recommended Implements & Sizing Guide

Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet SLTX 1054 based on its 26 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	5 ft (60 in)1.5 m	Medium Duty	Pasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep	54 to 60 in135 - 150 cm	Medium Duty	Thorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet SLTX 1054.

Estimated Continuous Field Runtime: 2.4 hrs

Approximately 2.4 hours of continuous field operation at ~75% rated power on a full tank (3.3 gal / 12.5 L).

Estimated 75% Load Fuel Burn~1.4 gal/hr (5.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Cub Cadet Lawn Tractors Cub Cadet SLTX 1054 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet SLTX 1054.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)26 hp

Kilowatts (kW)19.4 kW

Metric Horsepower (PS / CV)26.4 PS

Direct Competitor Comparison

Compare Cub Cadet SLTX 1054 against same-era industry alternatives in the same horsepower class.
