Deutz-Allis 6275

The Deutz-Allis 6275 is a tractor produced by Deutz Allis. It is equipped with a 249 ci 4.1 L engine. The rated power output is 75 hp 55.9 kW. Transmission: Triple-range. Operating weight: 6922 to 8333 pounds.

Overview

	1986 - 1990 6200 SeriesUtility tractor
1986 - 1990
6200 Series
Utility tractor

Production
Manufacturer	Deutz-Allis
Utility tractor
Built in Germany

Variants
6275	utility
6275F	narrow
6275L	low-profile
DX 3.90	similar Deutz-Fahr model

Deutz-Allis 6275 Engine
Deutz 4.1L 4-cyl diesel
Engine details ...

Deutz-Allis 6275 Transmission
12-speed partially synchronized
Transmission details ...

Deutz-Allis 6275 Power
Engine	75 hp 55.9 kW
PTO (claimed)	70.9 hp 52.9 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Hydraulic drum brakes
Four-post ROPS. StarCab optional.

Capacity
ROPS Fuel	24 gal 90.8 L
Cab Fuel	28 gal 106.0 L
Hydraulic system	4 gal 15.1 L

Hydraulics
Type	open center
Capacity	4 gal 15.1 L
Pressure	2358 psi 162.6 bar
Valves	1 to 3
Pump flow	11.4 gpm 43.1 lpm
Total flow	17.7 gpm 67.0 lpm

Tractor hitch
Rear Type	II
Rear lift	7275 lbs 3299 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)

Dimensions & Tires
2WD Wheelbase	91.5 inches 232 cm
4WD Wheelbase	94 inches 238 cm
Weight	6922 to 8333 pounds
Front tire	10.00-16
2WD Rear tire	18.4-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
6265/6275 published in 1986, by Deutz-Allis
6265/6275 published in 1987, by Deutz-Allis

Engine

Engine Detail — 249 ci / 4.1 L Diesel

Manufacturer	Deutz F4L 913
Fuel Type	Diesel
Configuration	4-cylinder, air-cooled
Displacement	249 ci 4.1 L
Bore/Stroke	3.94x4.84 inches 100 x 123 mm
Power	75 hp 55.9 kW
Rated RPM	2350
Starter volts	12
Oil capacity	10.5 qts 9.9 L

Transmission

Transmission — Triple-range

Transmission	Triple-range
Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	dry disc
Four synchronized gears in three ranges, plus reverse range.

Dimensions

Deutz-Allis 6275 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 18.4-30
4WD Standard tires (ag)	Front: 12.4-24. Rear: 18.4-30
2WD Optional tires (ag)	Front: 11.00-16. Rear: 16.9-34

Dimensions
2WD Wheelbase	91.5 inches 232 cm
4WD Wheelbase	94 inches 238 cm
Width	82.3 inches 209 cm
Height (ROPS)	97.3 inches 247 cm
Height (cab)	101.3 inches 257 cm
Rear tread	59 to 78.8 inches 149 to 200 cm

Deutz-Allis 6275 Weight
2WD ROPS	6922 lbs 3139 kg
4WD ROPS	7429 lbs 3369 kg
2WD Cab	7826 lbs 3549 kg
4WD Cab	8333 lbs 3779 kg

Photos

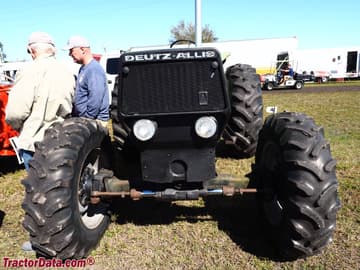

Deutz-Allis 6275.

Deutz-Allis 6275 operator station and controls.

Deutz-Allis 6275 with cab and 465 front-end loader.
