Deutz-Allis 9190

The Deutz-Allis 9190 is a tractor produced by Deutz Allis. It is equipped with a 584 ci 9.6 L engine. The rated power output is 193.55 hp 144.3 kW. Transmission: 18 forward and 6 reverse. Operating weight: 16600 to 18700 pounds.

Overview

	1989 - 1990 9100 SeriesRow-Crop tractorWhite built
1989 - 1990
9100 Series
Row-Crop tractor
White built

1989 - 1990
9100 Series
Row-Crop tractor
White built

Production
Distributor	Deutz-Allis
Manufacturer	White
Row-Crop tractor
Built in Coldwater, Ohio, USA

Deutz-Allis 9190 Engine
Deutz 9.6L 6-cyl diesel
Fuel tank	90 gal 340.7 L
Engine details ...

Deutz-Allis 9190 Transmission
18-speed partial power shift
Transmission details ...

Deutz-Allis 9190 Power
PTO (claimed)	193 hp 143.9 kW
Drawbar (tested)	170.30 hp 127.0 kW
PTO (tested)	193.55 hp 144.3 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	front and rear
Power steering
Differential hydraulic wet disc brakes

Hydraulics
Type	closed center
Pressure	2500 psi 172.4 bar
Valves	2 or 3
Pump flow	28 gpm 106.0 lpm

Tractor hitch
Rear Type	III/II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)
Engine RPM	1000@2168

Dimensions & Tires
2WD Wheelbase	119 inches 302 cm
4WD Wheelbase	115 inches 292 cm
Weight	16600 to 18700 pounds
Front tire	16.9R28
4WD Rear tire	20.8R38
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
9150/9170/9190 published in 1988, by Deutz-Allis
9100 Series Tractors published in 1991, by Deutz-Allis

Engine

	1989 - 1990 9100 SeriesRow-Crop tractorWhite built
1989 - 1990
9100 Series
Row-Crop tractor
White built

1989 - 1990
9100 Series
Row-Crop tractor
White built

Engine Detail — 584 ci / 9.6 L Diesel

Manufacturer	Deutz BF6L513R
Configuration	turbocharged diesel, 6-cylinder, air-cooled
Displacement	584 ci 9.6 L
Bore/Stroke	4.921x5.118 inches 125 x 130 mm
Air cleaner	dual paper elements
Compression	15.8:1
Rated RPM	2300
Starter volts	12
Oil capacity	24.3 qts 23.0 L

Transmission

	1989 - 1990 9100 SeriesRow-Crop tractorWhite built
1989 - 1990
9100 Series
Row-Crop tractor
White built

1989 - 1990
9100 Series
Row-Crop tractor
White built

Transmission — 18 forward and 6 reverse partial power shift

Type	partial power shift
Gears	18 forward and 6 reverse
Clutch	330mm discs
Six speeds with three-speed power shift.
With 20.8R38 rear tires.

Dimensions

	1989 - 1990 9100 SeriesRow-Crop tractorWhite built
1989 - 1990
9100 Series
Row-Crop tractor
White built

1989 - 1990
9100 Series
Row-Crop tractor
White built

Deutz-Allis 9190 Tires
4WD Standard tires (ag)	Front: 16.9R28. Rear: 20.8R38

Dimensions
2WD Wheelbase	119 inches 302 cm
4WD Wheelbase	115 inches 292 cm
Width	96 inches 243 cm
Height	122 inches 309 cm

Deutz-Allis 9190 Weight
4WD Shipping	16600 lbs 7529 kg
Operating	18,700 lbs (duals) 8482 kg
Ballasted	19,150 lbs 8686 kg

Tests

	1989 - 1990 9100 SeriesRow-Crop tractorWhite built
1989 - 1990
9100 Series
Row-Crop tractor
White built

1989 - 1990
9100 Series
Row-Crop tractor
White built

Nebraska Tractor Test 1635
Diesel 18-speed 4WD October 24 - November 13, 1989 Link: Nebraska Tractor Test 1635 file
PTO performance
Power at rated engine speed	193.55 hp 144.3 kW
Fuel use	12.5 gal/hour 47.3 l/hour
Power at rated PTO speed	196.96 hp 146.9 kW
Fuel use	12.0 gal/hour 45.4 l/hour
Drawbar performance
Max power	170.30 hp 127.0 kW
Fuel use	12.5 gal/hour 47.3 l/hour
Gear 3D used for power test.
Max pull	18,970 lbs 8604 kg
Gear 2D used for pull test.

Photos

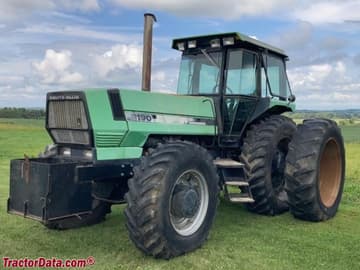

Deutz-Allis 9190
