Deutz-Fahr DX 85

The Deutz-Fahr DX 85 is a tractor produced by Deutz Fahr. It is equipped with a 287.40 ci 4.7 L engine. The rated power output is 80 hp 59.7 kW. Transmission: 15 forward and 5 reverse. Operating weight: 9856 to 10650 pounds.

Overview

	1978 - 1982 DX SeriesRow-Crop tractor
1978 - 1982
DX Series
Row-Crop tractor

Production
Manufacturer	Deutz-Fahr
Row-Crop tractor

Deutz-Fahr DX 85 Engine
Deutz 4.7L 5-cyl diesel
Fuel tank	31.7 gal 120.0 L
Engine details ...

Deutz-Fahr DX 85 Transmission
15-speed fully synchronized
Transmission details ...

Deutz-Fahr DX 85 Power
Engine	80 hp 59.7 kW

Mechanical
Two- or four-wheel drive
Power steering
Cab standard with air-conditioning.

Hydraulics
Pump flow	10.4 gpm 39.4 lpm

Tractor hitch
Rear Type	II
Rear lift	7717 lbs 3500 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	100.79 inches 256 cm
Weight	9856 to 10650 pounds
Front tire	10.00-16
Rear tire	14.9-38
Full dimensions and tires ...

Engine

Engine Detail — 287.40 ci / 4.7 L Diesel

Manufacturer	Deutz F5L 912
Fuel Type	Diesel
Configuration	5-cylinder, air-cooled
Displacement	287.40 ci 4.7 L
Bore/Stroke	3.94x4.72 inches 100 x 120 mm
Power	80 hp 59.7 kW
Rated RPM	2300

Transmission

Transmission — 15 forward and 5 reverse fully synchronized

Type	fully synchronized
Gears	15 forward and 5 reverse
Clutch	dry disc
Five gears (1-5) in three ranges (low, medium, high).

Dimensions

Deutz-Fahr DX 85 Tires
Ag front	10.00-16
	12.4-24 (4WD)
Ag rear	14.9-38

Dimensions
Wheelbase	100.79 inches 256 cm
Length	170.1 inches 432 cm
Height	102.4 inches 260 cm
2WD Weight	9856 lbs 4470 kg
4WD Weight	10650 lbs 4830 kg

Photos

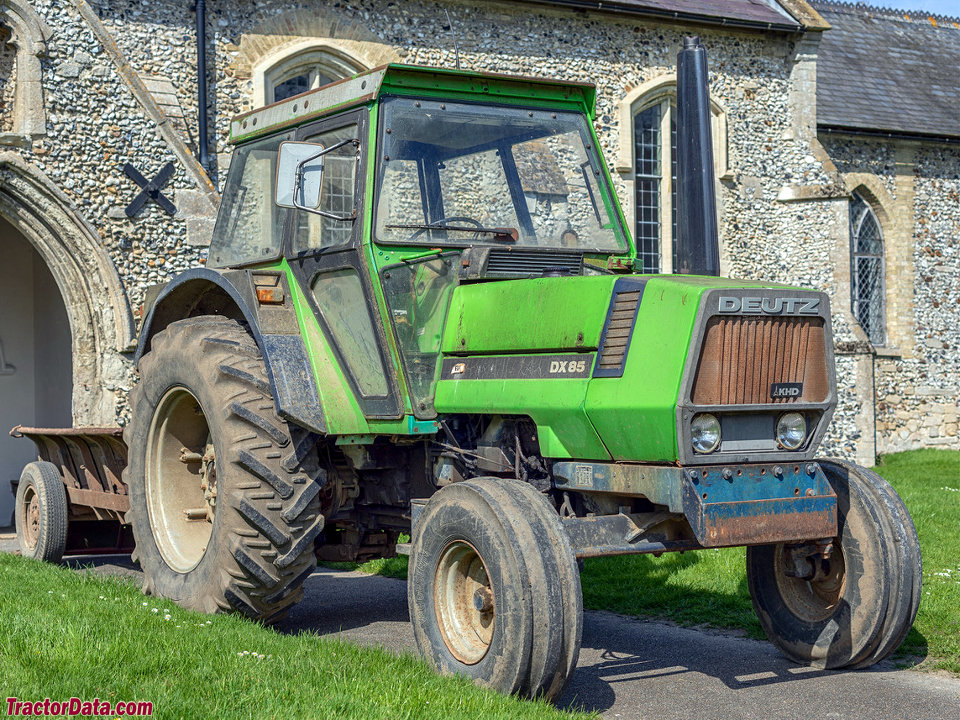

Deutz-Fahr DX 85
