Deutz-Fahr Agroplus 75

The Deutz-Fahr Agroplus 75 is a tractor produced by Deutz Fahr. It is equipped with a 194.78 ci 3.2 L engine. The rated power output is 75 hp 55.9 kW. Transmission: Synchrosplit. Operating weight: 8378 lbs 3800 kg.

Overview

	1998 - 2004 Agroplus SeriesUtility tractor
1998 - 2004
Agroplus Series
Utility tractor

Production
Manufacturer	Deutz-Fahr
Utility tractor

Deutz-Fahr Agroplus 75 Engine
Deutz 3.2L 4-cyl diesel
Fuel tank	37 gal 140.0 L
Engine details ...

Deutz-Fahr Agroplus 75 Power
Engine	75 hp 55.9 kW

Mechanical
Four-wheel drive
Final drives	planetary
Differential lock	electro-hydraulic front and rear
Power steering
Wet disc brakes
Cab standard with available air-conditioning.

Hydraulics
Type	open center
Pressure	2683 psi 185.0 bar
Pump flow	14.8 gpm 56.0 lpm

Tractor hitch
Rear Type	II
Control	lower-link draft sensing
Rear lift	10803 lbs 4900 kg
Front Hitch	II OptOptional
Front lift	6614 lbs 3000 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Front PTO	independent
Clutch	electro-hydraulic wet disc
Front PTO Type	1000 (1.375)
Engine RPM	1000@2100

Dimensions & Tires
Wheelbase	92.1 inches 233 cm
Weight	8378 lbs 3800 kg
Front tire	13.6R24
Rear tire	16.9R34
Full dimensions and tires ...

References
Agroplus 75 85 95 100 published in 1998, by Deutz-Fahr

Engine

Engine Detail — 194.78 ci / 3.2 L Diesel

Manufacturer	Deutz BF4M 1012E
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled inline
Displacement	194.78 ci 3.2 L
Bore/Stroke	3.70x4.52 inches 94 x 115 mm
Power	75 hp 55.9 kW
Rated RPM	2300
Torque	218 lb-ft 295.6 Nm
Torque RPM	1380
Oil capacity	9.5 qts 9.0 L

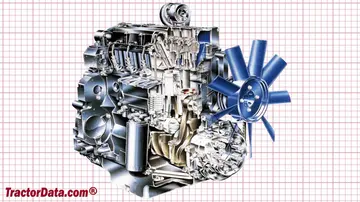

Deutz-Fahr Agroplus 75 Engine

Transmission

Transmission options
30-speed
45-speed three-speed power shift

Transmission — Synchrosplit

Transmission	Synchrosplit
Gears	30 forward and 15 reverse
Five gears in three ranges. Available mechanical or hydraulic shuttle. Transmission may be equipped as a creeper with 20 speeds forward and reverse.

Transmission — 45 forward and reverse three-speed power shift

Type	three-speed power shift
Gears	45 forward and reverse
Five gears in three ranges with three-speed power shift. Available mechanical or hydraulic shuttle. Transmission may be equipped an additional creeper range offering 60 speeds forward and reverse.

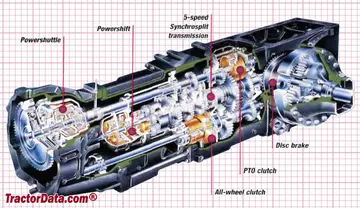

Deutz-Fahr Agroplus 75 Transmission

Dimensions

Deutz-Fahr Agroplus 75 Tires
Ag front	13.6R24
Ag rear	16.9R34

Dimensions
Wheelbase	92.1 inches 233 cm
Length	146.2 inches 371 cm
Width	81.1 inches 205 cm
Height (cab)	103.3 inches 262 cm
Front axle	Flange: 69.7 inch length 1770 mm
Flange rear axle	68.5 inch length 1739 mm

Deutz-Fahr Agroplus 75 Weight
Shipping	8378 lbs 3800 kg
Max capacity	13669 lbs 6200 kg
Max front axle	6614 lbs 3000 kg
Max rear axle	9921 lbs 4500 kg

Photos

Deutz-Fahr Agroplus 75 tractor photo
