Deutz-Fahr Agrotron 105

The Deutz-Fahr Agrotron 105 is a tractor produced by Deutz Fahr. It is equipped with a 292.16 ci 4.8 L engine. The listed engine power is Diesel (listed): 100 hp / 74.6 kW. Transmission: 36 forward and 12 reverse. Operating weight: 9922 lbs 4500 kg.

Engine Power

Diesel (listed): 100 hp / 74.6 kW

Fuel & Capacities

50.2 gal 190.0 L

Transmission

36 forward and 12 reverse

Operating Weight

9922 lbs 4500 kg

Overview

	1997 - 2001 Agrotron SeriesRow-Crop tractor Agrotron Series Row-Crop tractor

Production
Manufacturer	Deutz-Fahr
Row-Crop tractor

Deutz-Fahr Agrotron 105 Engine
Deutz 4.8L 6-cyl diesel
Fuel tank	50.2 gal 190.0 L
Engine details ...

Deutz-Fahr Agrotron 105 Power
Engine	100 hp 74.6 kW

Mechanical
Four-wheel drive

Hydraulics
Pump flow	17.4 gpm 65.9 lpm

Tractor hitch
Rear lift	13715 lbs 6221 kg

Power Take-off (PTO)
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	9922 lbs 4500 kg
Front tire	380/70R28
Rear tire	480/70R38
Full dimensions and tires ...

References

Agrotron published in 1997, by Deutz-Fahr

Engine

Engine Detail — 292.16 ci / 4.8 L Diesel

Manufacturer	Deutz BF6M1012E
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	292.16 ci 4.8 L
Bore/Stroke	3.70x4.52 inches 94 x 115 mm
Power	100 hp 74.6 kW
Rated RPM	2300

Transmission

Transmission options
24-speed three-speed power shift
36-speed creeper

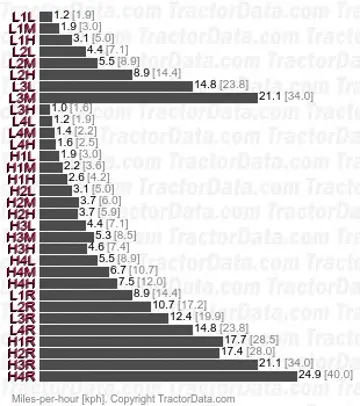

Transmission — 24 forward and 8 reverse three-speed power shift

Type	three-speed power shift
Gears	24 forward and 8 reverse
Four synchronized gears in three power shift ranges with high and low transmission ranges.
With 16.9R34 rear tires.

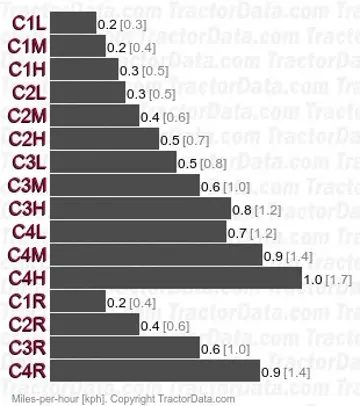

Transmission
Type	creeper
Gears	36 forward and 12 reverse

Dimensions

Deutz-Fahr Agrotron 105 Tires
Ag front	380/70R28
Ag rear	480/70R38

Dimensions
Wheelbase	104.3 inches 264 cm
Length	172.1 inches 437 cm
Height	111.4 inches 282 cm
Weight	9922 lbs 4500 kg

Photos

Deutz-Fahr Agrotron 105 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Deutz Fahr Deutz-Fahr Agrotron 105 based on its 100 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr Agrotron 105.

Estimated Continuous Field Runtime: 9.7 hrs

Approximately 9.7 hours of continuous field operation at ~75% rated power on a full tank (50.2 gal / 190 L).

Estimated 75% Load Fuel Burn~5.2 gal/hr (19.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Deutz Fahr Deutz-Fahr Agrotron 105 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Fahr Deutz-Fahr Agrotron 105.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)100 hp

Kilowatts (kW)74.6 kW

Metric Horsepower (PS / CV)101.4 PS
