Deutz-Fahr Agrotron 106

The Deutz-Fahr Agrotron 106 is a tractor produced by Deutz Fahr. It is equipped with a 292.16 ci 4.8 L engine. The listed engine power is Diesel (listed): 100 hp / 74.6 kW. Transmission: 40 forward and reverse. Operating weight: 11047 lbs 5010 kg.

Engine Power

Diesel (listed): 100 hp / 74.6 kW

Fuel & Capacities

68.7 gal 260.0 L

Transmission

40 forward and reverse

Operating Weight

11047 lbs 5010 kg

Overview

	1997 - 2001 Agrotron SeriesRow-Crop tractor Agrotron Series Row-Crop tractor

Production
Manufacturer	Deutz-Fahr
Row-Crop tractor

Deutz-Fahr Agrotron 106 Engine
Deutz 4.8L 6-cyl diesel
Fuel tank	68.7 gal 260.0 L
Engine details ...

Deutz-Fahr Agrotron 106 Power
Engine	100 hp 74.6 kW

Mechanical
Four-wheel drive
Cab standard with air-conditioning.

Hydraulics
Pump flow	21.9 gpm 82.9 lpm

Tractor hitch
Rear Type	III/II
Rear lift	13713 lbs 6220 kg
	20371 lbsOptOptional 9240 kg
Front Hitch	II
Front lift	6614 lbs 3000 kg

Power Take-off (PTO)
Rear PTO Type	540/1000
Front PTO Type	1000

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	11047 lbs 5010 kg
Front tire	16.9R24
Rear tire	18.4R38
Full dimensions and tires ...

References

Agrotron published in 1997, by Deutz-Fahr

Engine

Engine Detail — 292.16 ci / 4.8 L Diesel

Manufacturer	Deutz BF6L1012E
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	292.16 ci 4.8 L
Bore/Stroke	3.70x4.52 inches 94 x 115 mm
Power	100 hp 74.6 kW
Rated RPM	2300

Transmission

Transmission options
24-speed four-speed power shift
40-speed creeper

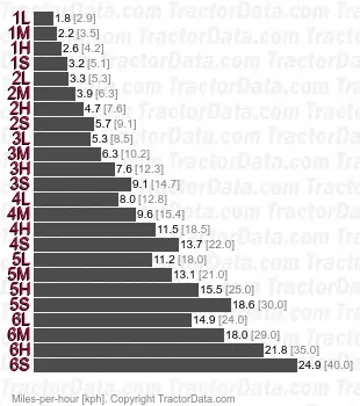

Transmission — 24 forward and reverse four-speed power shift

Type	four-speed power shift
Gears	24 forward and reverse
Six synchronized gears in four power shift ranges.
With 20.8R38 rear tires.

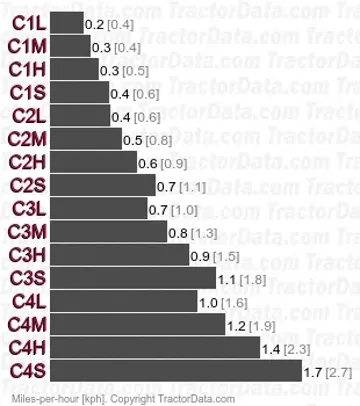

Transmission
Type	creeper
Gears	40 forward and reverse

Dimensions

Deutz-Fahr Agrotron 106 Tires
Ag front	16.9R24
Ag rear	18.4R38

Dimensions
Wheelbase	104.3 inches 264 cm
Length	178 inches 452 cm
Height (cab)	113 inches 287 cm
Weight	11047 lbs 5010 kg
Ground clearance	20.5 inches 52 cm

Photos

Deutz-Fahr Agrotron 106 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Deutz Fahr Deutz-Fahr Agrotron 106 based on its 100 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr Agrotron 106.

Estimated Continuous Field Runtime: 13.2 hrs

Approximately 13.2 hours of continuous field operation at ~75% rated power on a full tank (68.7 gal / 260.1 L).

Estimated 75% Load Fuel Burn~5.2 gal/hr (19.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Deutz Fahr Deutz-Fahr Agrotron 106 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Fahr Deutz-Fahr Agrotron 106.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)100 hp

Kilowatts (kW)74.6 kW

Metric Horsepower (PS / CV)101.4 PS
