Deutz-Fahr D 7207
The Deutz-Fahr D 7207 is a tractor produced by Deutz Fahr. It is equipped with a 230 ci 3.8 L engine. The rated power output is 70 hp 52.2 kW. Transmission: TW56.11. Operating weight: 7121 to 7915 pounds.
Engine Power
70 hp
52.2 kW
Fuel & Capacities
23.8 gal
90.1 L
Transmission
TW56.11
Operating Weight
7121 to 7915 pounds
Deutz Fahr Deutz-Fahr D 7207 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1981 - 1984
07 SeriesUtility tractor |
|---|---|
1981 - 1984 | |
07 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Deutz-Fahr |
Utility tractor | |
Deutz-Fahr D 7207 Engine | |
|---|---|
Deutz 3.8L 4-cyl diesel | |
Fuel tank | 23.8 gal
90.1 L |
Engine details ...  | |
Deutz-Fahr D 7207 Transmission | |
|---|---|
12-speed synchronized | |
Transmission details ...  |
Deutz-Fahr D 7207 Power | |
|---|---|
Engine | 70 hp
52.2 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic drum brakes | |
Four-post ROPS. Cab available with heat. |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 10.6 gpm
40.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 5732 lbs
2600 kg |
7276 lbsOptOptional
3300 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 95 inches
241 cm |
4WD Wheelbase | 95.6 inches
242 cm |
Weight | 7121 to 7915 pounds |
Front tire | 7.50-20 |
2WD Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 230 ci / 3.8 L Diesel
Manufacturer | Deutz F4L 912 |
Fuel Type | Diesel |
Configuration | 4-cylinder, air-cooled |
Displacement | 230 ci
3.8 L |
Bore/Stroke | 3.94x4.72 inches
100 x 120 mm |
Power | 70 hp
52.2 kW |
Rated RPM | 2300 |
Starter type | electric |

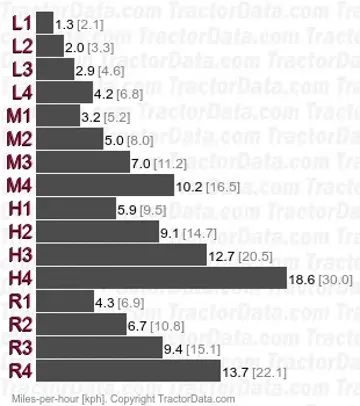

Transmission
Transmission — TW56.11
Transmission | TW56.11 |
Type | synchronized |
Gears | 12 forward and 4 reverse |
Four gears (1-4) in three ranges (L/M/H) plus reverse (R) range. | |
 | |
Dimensions
Deutz-Fahr D 7207 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-20. Rear: 16.9-38 |
4WD Standard tires (ag) | Front: 12.4-24. Rear: 16.9-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 95 inches
241 cm |
4WD Wheelbase | 95.6 inches
242 cm |
2WD Length | 158.3 inches
402 cm |
4WD Length | 158.7 inches
403 cm |
Width | 82.3 inches
209 cm |
Height (cab) | 101.2 inches
257 cm |
2WD Ground clearance | 20.9 inches
53 cm |
4WD Ground clearance | 16.9 inches
42 cm |
2WD Front tread | 58.3 to 78 inches
148 to 198 cm |
4WD Front tread | 59.1/70.9 inches
150/180 cm |
Rear tread | 59.8 to 79.5 inches
151 to 201 cm |
Deutz-Fahr D 7207 Weight | |
|---|---|
2WD Cab Operating | 7121 lbs
3230 kg |
4WD Cab Operating | 7915 lbs
3590 kg |
Max capacity | 11023 lbs
5000 kg |
Photos
Deutz-Fahr D7207C.
