Deutz-Fahr D 7807
The Deutz-Fahr D 7807 is a tractor produced by Deutz Fahr. It is equipped with a 249.33 ci 4.1 L engine. The listed engine power is Diesel (listed): 75 hp / 55.9 kW. Transmission: TW56.21. Operating weight: 6614 to 8091 pounds.
Engine Power
Diesel (listed): 75 hp / 55.9 kW
Fuel & Capacities
23.8 gal
90.1 L
Transmission
TW56.21
Operating Weight
6614 to 8091 pounds
Overview
 | 1981 - 1984
07 SeriesUtility tractor
07 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Deutz-Fahr |
Utility tractor | |
Variants | |
|---|---|
D7807C | cab |
Deutz-Fahr D 7807 Engine | |
|---|---|
Deutz 4.1L 4-cyl diesel | |
Fuel tank | 23.8 gal
90.1 L |
Engine details ...  | |
Deutz-Fahr D 7807 Transmission | |
|---|---|
12-speed synchronized | |
Transmission details ...  |
Deutz-Fahr D 7807 Power | |
|---|---|
Engine | 75 hp
55.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Hydraulic drum brakes | |
Four-post ROPS. Cab available with heat. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2538 psi
175.0 bar |
Valves | 1 to 3 |
Pump flow | 10.6 gpm
40.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 5732 lbs
2600 kg |
7276 lbsOptOptional
3300 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 94.8 inches
240 cm |
4WD Wheelbase | 95.7 inches
243 cm |
Weight | 6614 to 8091 pounds |
Front tire | 7.50-20 |
2WD Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
D5207C - D6507C - D7807C published by Deutz-Fahr | |
D6507C - D7007C - D7807C published by Deutz-Fahr |
Engine
Engine Detail — 249.33 ci / 4.1 L Diesel
Manufacturer | Deutz F4L 913 |
Fuel Type | Diesel |
Configuration | 4-cylinder, air-cooled |
Displacement | 249.33 ci
4.1 L |
Bore/Stroke | 3.94x4.84 inches
100 x 123 mm |
Power | 75 hp
55.9 kW |
Rated RPM | 2300 |
Starter type | electric |
Transmission

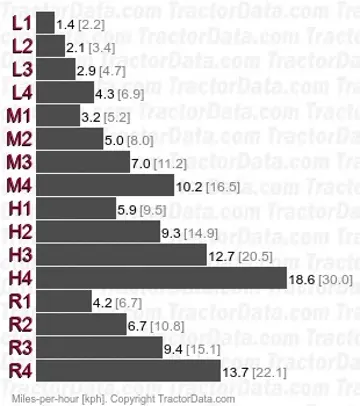

Transmission — TW56.21
Transmission | TW56.21 |
Type | synchronized |
Gears | 12 forward and 4 reverse |
Four gears (1-4) in three ranges (L/M/H) plus reverse (R) range. | |
With 16.9-34 rear tires. | |
 | |
Dimensions
Deutz-Fahr D 7807 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-20. Rear: 16.9-38 |
4WD Standard tires (ag) | Front: 12.4-24. Rear: 16.9-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 94.8 inches
240 cm |
4WD Wheelbase | 95.7 inches
243 cm |
2WD Length | 158.3 inches
402 cm |
4WD Length | 158.7 inches
403 cm |
Width | 82.3 inches
209 cm |
Height (ROPS) | 101.2 inches
257 cm |
Height (cab) | 100.4 inches
255 cm |
2WD Ground clearance | 22.8 inches
57 cm |
4WD Ground clearance | 16.3 inches
41 cm |
2WD Front tread | 59.1 to 78.7 inches
150 to 199 cm |
4WD Front tread | 59.1/70.9 inches
150/180 cm |
Rear tread | 59.1 to 78.7 inches
150 to 199 cm |
Deutz-Fahr D 7807 Weight | |
|---|---|
2WD ROPS Operating | 6614 lbs
3000 kg |
4WD ROPS Operating | 7429 lbs
3369 kg |
2WD Cab Operating | 7275 lbs
3299 kg |
4WD Cab Operating | 8091 lbs
3670 kg |
Max capacity | 11023 lbs
5000 kg |
Photos
Deutz-Fahr D 7807
Recommended Implements & Sizing Guide
Engineering recommendations for Deutz Fahr Deutz-Fahr D 7807 based on its 75 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr D 7807.
Estimated Continuous Field Runtime: 6.1 hrs
Approximately 6.1 hours of continuous field operation at ~75% rated power on a full tank (23.8 gal / 90.1 L).
Estimated 75% Load Fuel Burn~3.9 gal/hr (14.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Deutz Fahr Deutz-Fahr D 7807 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Fahr Deutz-Fahr D 7807.
Converted Equivalents:
Horsepower (HP)75 hp
Kilowatts (kW)55.9 kW
Metric Horsepower (PS / CV)76 PS
