Deutz-Fahr DX 6.10
The Deutz-Fahr DX 6.10 is a tractor produced by Deutz Fahr. It is equipped with a 344.9 ci 5.7 L engine. The listed engine power is Diesel (listed): 100 hp / 74.6 kW. Transmission: TW 904. Operating weight: 10385 lbs 4710 kg.
Overview
 | 1983 - 1990
DX6 SeriesRow-Crop tractor
DX6 Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Deutz-Fahr |
Row-Crop tractor | |
Deutz-Fahr DX 6.10 Engine | |
|---|---|
Deutz 5.7L 6-cyl diesel | |
Fuel tank | 31.7 gal
120.0 L |
Engine details ...  | |
Deutz-Fahr DX 6.10 Transmission | |
|---|---|
20-speed | |
Transmission details ...  |
Deutz-Fahr DX 6.10 Power | |
|---|---|
Engine | 100 hp
74.6 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Hydraulics | |
|---|---|
Pump flow | 14.8 gpm
56.0 lpm |
Tractor hitch | |
|---|---|
Rear lift | 11466 lbs
5200 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 106.3 inches
270 cm |
Weight | 10385 lbs
4710 kg |
Front tire | 13.6R24 |
Rear tire | 16.9R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
DX6 published in 1983, by Deutz-Fahr |
Engine
Engine Detail — 344.9 ci / 5.7 L Diesel
Manufacturer | Deutz F6L 912 |
Fuel Type | Diesel |
Configuration | 6-cylinder, air-cooled |
Displacement | 344.9 ci
5.7 L |
Bore/Stroke | 3.94x4.72 inches
100 x 120 mm |
Power | 100 hp
74.6 kW |
Rated RPM | 2300 |
Starter volts | 12 |
Transmission

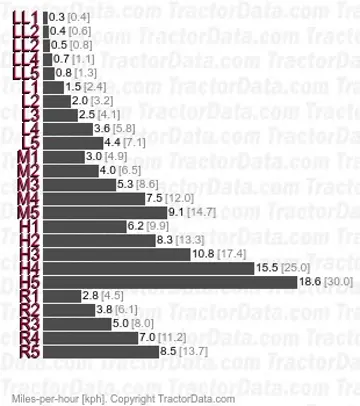

Transmission — TW 904
Transmission | TW 904 |
Gears | 20 forward and 5 reverse |
Five gears (1-5) in four ranges (LL/L/M/H) plus reverse (R) range. | |
With 18.4-38 rear tires. | |
 | |
Dimensions
Deutz-Fahr DX 6.10 Tires | |
|---|---|
Ag front | 13.6R24 |
Ag rear | 16.9R38 |
Dimensions | |
|---|---|
Wheelbase | 106.3 inches
270 cm |
Length | 179.1 inches
454 cm |
Height | 107.9 inches
274 cm |
Weight | 10385 lbs
4710 kg |
Photos
Deutz-Fahr DX 6.10
Deutz-Fahr DX 6.10
Deutz-Fahr DX 6.10
Deutz-Fahr DX 6.10
Deutz-Fahr DX 6.10
Deutz-Fahr DX 6.10
Deutz-Fahr DX 6.10
Recommended Implements & Sizing Guide
Engineering recommendations for Deutz Fahr Deutz-Fahr DX 6.10 based on its 100 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr DX 6.10.
Estimated Continuous Field Runtime: 6.1 hrs
Approximately 6.1 hours of continuous field operation at ~75% rated power on a full tank (31.7 gal / 120 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
