Fendt Farmer 309

The Fendt Farmer 309 is a tractor produced by Fendt. It is equipped with a 253.5 ci 4.2 L engine. The rated power output is 95 hp 70.8 kW. Transmission: 21 forward and reverse. Operating weight: 9591 lbs 4350 kg.

Overview

	1993 - 2000 Farmer 300 SeriesRow-Crop tractor
1993 - 2000
Farmer 300 Series
Row-Crop tractor

Production
Manufacturer	Fendt
Row-Crop tractor

Fendt Farmer 309 Engine
MWM 4.2L 4-cyl diesel
Fuel tank	28.3 gal 107.1 L
Engine details ...

Fendt Farmer 309 Transmission
21-speed three-speed power shift
Transmission details ...

Fendt Farmer 309 Power
Engine	95 hp 70.8 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic disc brakes
Cab standard with air-conditioning.

Hydraulics
Pump flow	19.8 gpm 74.9 lpm

Tractor hitch
Rear lift	10930 lbs 4957 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/750/1000
Front PTO	independent OptOptional
Clutch	electro-hydraulic
Front PTO Type	1000

Dimensions & Tires
Wheelbase	89.3 inches 226 cm
Weight	9591 lbs 4350 kg
Front tire	380/70R24
Rear tire	480/70R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Battery volts	12
Battery AH	110

References
Farmer 307 - 308 - 309 - 310 - 311 - 312 published in 1993, by Fendt

Engine

Engine Detail — 253.5 ci / 4.2 L Diesel

Manufacturer	MWM TD226.B4
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	253.5 ci 4.2 L
Bore/Stroke	4.134x4.72 inches 105 x 120 mm
Power	95 hp 70.8 kW
Rated RPM	2350
Torque	276.6 lb-ft 375.1 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

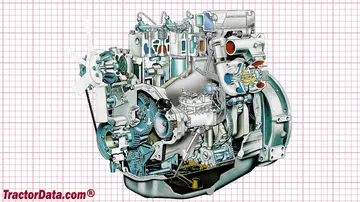

Fendt Farmer 309 Engine

Transmission

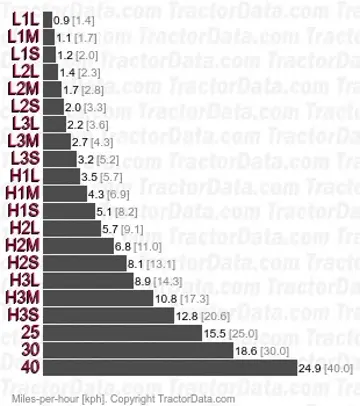

Transmission — 21 forward and reverse three-speed power shift

Type	three-speed power shift
Gears	21 forward and reverse
Three gears, in two ranges, with a three-speed power shift. Additional three overdrive gear ranges. The 40 kph overdrive was not available in all markets.

Dimensions

Fendt Farmer 309 Tires
Standard tires (ag)	Front: 380/70R24. Rear: 480/70R34
Optional tires (ag)	Front: 13.6-24. Rear: 13.6R38
	Front: 13.6-24. Rear: 14.9R38
	Front: 14.9R24. Rear: 18.4R34
	Front: 420/70R24. Rear: 520/70R34
	Front: 420/70R24. Rear: 480/70R38
	Front: 460/70R24. Rear: 540/70R34
	Front: 480/65R24. Rear: 600/65R34
	Front: 11.2R28. Rear: 11.2R44
	Front: 9.5R32. Rear: 9.5R48

Dimensions
Wheelbase	89.3 inches 226 cm
Length	158.7 inches 403 cm
Width	84.3 inches 214 cm
Height (cab)	105.1 inches 266 cm
Weight	9591 lbs 4350 kg
Max weight	16535 lbs 7500 kg
Front tread	66.9 inches 169 cm
Rear tread	65.4 inches 166 cm

Attachments

Attachment overview
Fendt 3/60 loader
Fendt 3S loader
