Fiat 1300
The Fiat 1300 is a tractor produced by Fiat. It is equipped with a 452.28 ci 7.4 L engine. The listed engine power is Diesel (listed): 130 hp / 96.9 kW. Transmission: 12 forward and 4 reverse. Drive type: 4x2 2WD. Operating weight: 11686 lbs 5300 kg.
Engine Power
Diesel (listed): 130 hp / 96.9 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
Diesel
Transmission
12 forward and 4 reverse
Operating Weight
11686 lbs
5300 kg
Overview
 | 1973 - 1976 |
|---|
Production | |
|---|---|
Manufacturer | Fiat |
Fiat 1300 Engine | |
|---|---|
Fiat 7.4L 6-cyl diesel | |
Engine details ...  |
Fiat 1300 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Fiat 1300 Power | |
|---|---|
Engine | 130 hp
96.9 kW |
PTO (claimed) | 115 hp
85.8 kW |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
4x4 MFWD 4WD (1300DT) | |
Steering | power |
Wet disc brakes | |
Hydraulics | |
|---|---|
Pump flow | 12.9 gpm
48.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Rear lift | 7386 lbs
3350 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 101.18 inches
256 cm |
Weight | 11686 lbs
5300 kg |
Front tire | 12.4-28 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 452.28 ci / 7.4 L Diesel
Manufacturer | Fiat OM CP3/100 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 452.28 ci
7.4 L |
Bore/Stroke | 4.33x5.12 inches
110 x 130 mm |
Power | 130 hp
96.9 kW |
Rated RPM | 2100 |
Transmission
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Dimensions
Fiat 1300 Tires | |
|---|---|
Ag front | 12.4-28 |
Ag rear | 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 101.18 inches
256 cm |
Weight | 11686 lbs
5300 kg |
Photos

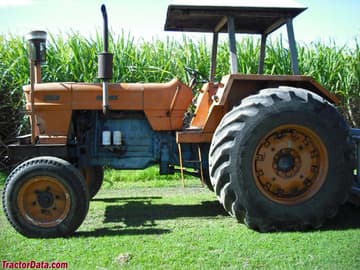

Fiat 1300
Recommended Implements & Sizing Guide
Engineering recommendations for Fiat 1300 based on its 130 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Fiat 1300.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Fiat 1300 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 1300.
Converted Equivalents:
Horsepower (HP)130 hp
Kilowatts (kW)96.9 kW
Metric Horsepower (PS / CV)131.8 PS
