Fiat 115-90

The Fiat 115-90 is a tractor produced by Fiat. It is equipped with a 357.6 ci 5.9 L engine. The rated power output is 115 hp 85.8 kW. Transmission: 16 forward and reverse. Operating weight: 11,664 lbs 5290 kg.

Overview

	1984 - 1990 90 Series
1984 - 1990
90 Series

Production
Manufacturer	Fiat

Variants
115-90	2WD
115-90DT	4WD
115-90H	2WD hydraulic cluch
115-90HDT	4WD hydraulic clutch

Fiat 115-90 Engine
Fiat 5.9L 6-cyl diesel
Engine details ...

Fiat 115-90 Power
Engine	115 hp 85.8 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	hydrostatic front and rear
Steering	hydrostatic power
Wet disc brakes
Cab standard with heat. Air-conditioning optional.

Capacity
Fuel	47.6 gal 180.2 L
2WD Hydraulic system	11.4 gal 43.1 L
4WD Hydraulic system	11.7 gal 44.3 L

Hydraulics
2WD Capacity	11.4 gal 43.1 L
4WD Capacity	11.7 gal 44.3 L
Pressure	2489 psi 171.6 bar
Valves	1 to 3
Pump flow	13.42 gpm 50.8 lpm

Tractor hitch
Rear Type	2
Control	position and draft control
Rear lift (at ends)	14,490 lbs 6572 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	mechanical dry disc
	hydraulic wet disc *Optional, used on 115-90 H
Rear PTO Type	540/1000
Front PTO	independent
Clutch	electro-magnetic
Front PTO Type	1000

Dimensions & Tires
Wheelbase	108.3 inches 275 cm
Weight	11664 to 12656 pounds
Front tire	9.00-16
Rear tire	16.8/14-38
Full dimensions and tires ...

Electrical
Ground	negative

References
The Fiat Giants

Engine

Engine Detail — 357.6 ci / 5.9 L Diesel

Manufacturer	Fiat 8065.05
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	357.6 ci 5.9 L
Bore/Stroke	4.09x4.53 inches 104 x 115 mm
Power	115 hp 85.8 kW
Rated RPM	2500
Oil capacity	16.1 qts 15.2 L

Transmission

Transmission options
24-speed synchronized
16-speed mechanical shuttle
24-speed partial power shift

Transmission — 24 forward and 8 reverse synchronized

Type	synchronized
Gears	24 forward and 8 reverse
Four gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.

Transmission — 16 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	16 forward and reverse
Four gears in four ranges with mechanical reverser.

Transmission — 24 forward and 8 reverse partial power shift

Type	partial power shift
Gears	24 forward and 8 reverse
Four power-shift gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.

Transmission — 16 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	16 forward and reverse
Four power-shift gears in four ranges with mechanical reverser.

Dimensions

Fiat 115-90 Tires
Ag front	9.00-16 (2WD)
	10.00-16 (2WD)
	11.00-16 (2WD)
	13.6/12-28 (4WD)
	14.9/13-28 (4WD)
Ag rear	16.8/14-38
	18.4/15-38
	23.1/18-34
	23.1/18/30 (2WD)

Dimensions
Wheelbase	108.3 inches 275 cm
Length	163.4 inches 415 cm
Height	114.2 inches 290 cm
Weight	11,664 lbs 5290 kg
	12,656 lbs (4WD) 5740 kg

Photos

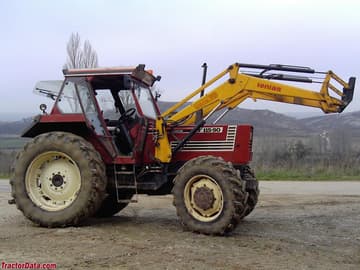

Fiat 115-90
