Fiat 110-90

The Fiat 110-90 is a tractor produced by Fiat. It is equipped with a 357.6 ci 5.9 L engine. The rated power output is 110 hp 82.0 kW. Transmission: 20 forward and 4 reverse. Drive type: 4x2 2WD. Operating weight: 10297 lbs 4670 kg.

Engine Power
110 hp 82.0 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
35.1 gal 132.9 L
Transmission
20 forward and 4 reverse
Operating Weight
10297 lbs 4670 kg

Fiat 110-90 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Fiat 110-90 tractor photo
1986 - 2003 90 Series
1986 - 2003
90 Series
Production
Manufacturer
Fiat
Fiat 110-90 Engine
Fiat 5.9L 6-cyl diesel
Engine details ...
Fiat 110-90 Power
Engine
110 hp 82.0 kW
Mechanical
Drive
4x2 2WD
4x4 MFWD 4WD (110-90DT)
Final drives
planetary
Differential lock
rear standard
Hydraulic wet disc brakes
Trailer brakes
hydraulic optional
Supercomfort cab with air-conditioning optional.
Capacity
Fuel
35.1 gal 132.9 L
Hydraulic system
12 gal 45.4 L
Hydraulics
Type
open center
Capacity
12 gal 45.4 L
Pressure
2700 psi 186.2 bar
Valves
1 to 3
Pump flow
15.1 gpm 57.2 lpm
Power Take-off (PTO)
Rear PTO
independent
Clutch
304.8mm dry disc
Rear PTO Type
540/1000/ground
Engine RPM
540@2124
1000@2409
Dimensions & Tires
Wheelbase
101.57 inches 257 cm
Weight
10297 lbs 4670 kg
Front tire
7.50-20
Rear tire
16.9/14-38
Full dimensions and tires ...

Engine

Engine Detail — 357.6 ci / 5.9 L Diesel

Manufacturer
Fiat 8065.05
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
357.6 ci 5.9 L
Bore/Stroke
4.0945x4.53 inches 104 x 115 mm
Power
110 hp 82.0 kW
Fuel system
direct injection
Rated RPM
2500
Oil capacity
14.4 qts 13.6 L

Transmission

Transmission options
15-speed synchronized
20-speed creeper

Transmission — 15 forward and 3 reverse synchronized

Type
synchronized
Gears
15 forward and 3 reverse
Clutch
dry disc
Five gears, plus reverse, in three ranges. A 40 KPH gearbox was available with four-wheel drive.
110-90 synchronized speeds

Transmission — 20 forward and 4 reverse creeper

Type
creeper
Gears
20 forward and 4 reverse
Clutch
dry disc

Dimensions

Fiat 110-90 Tires
Ag front
7.50-20 (2WD)
11.00-16 (2WD)
12.4/11-28 (4WD)
14.9/13-24 (4WD)
Ag rear
16.9/14-38
Dimensions
Wheelbase
101.57 inches 257 cm
Length
157.09 inches 399 cm
Height
103.15 inches 262 cm
Weight
10297 lbs 4670 kg

Photos

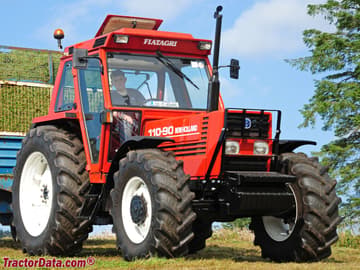

New Holland (Fiat) 110-90 row-crop tractor.

New Holland (Fiat) 110-90 row-crop tractor.
