Fiat 130-90

The Fiat 130-90 is a tractor produced by Fiat. It is equipped with a 357.6 ci 5.9 L engine. The rated power output is 130 hp 96.9 kW. Transmission: 16 forward and reverse. Operating weight: 12766 lbs 5790 kg.

Overview

	1984 - 1990 90 Series
1984 - 1990
90 Series

Production
Manufacturer	Fiat

Variants
130-90	2WD
130-90DT	4WD

Fiat 130-90 Engine
Fiat 5.9L 6-cyl diesel
Engine details ...

Fiat 130-90 Power
Engine	130 hp 96.9 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	hydrostatic front and rear
Steering	hydrostatic power
Wet disc brakes
Cab standard with heat. Air-conditioning optional.

Capacity
Fuel	47.6 gal 180.2 L
Hydraulic system	11.8 gal (2WD) 44.7 L
	12.2 gal (4WD) 46.2 L

Hydraulics
Capacity	11.8 gal (2WD) 44.7 L
	12.2 gal (4WD) 46.2 L
Pressure	2489 psi 171.6 bar
Valves	2 to 3
Pump flow	13.42 gpm 50.8 lpm

Tractor hitch
Rear Type	2
Control	position and draft control
Rear lift (at ends)	14,660 lbs 6649 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000
Front PTO	independent
Clutch	electro-magnetic
Front PTO Type	1000

Dimensions & Tires
Wheelbase	105.12 inches 267 cm
Weight	12766 lbs 5790 kg
Front tire	9.00-16
Rear tire	18.4/15-38
Full dimensions and tires ...

Electrical
Ground	negative

References
The Fiat Giants

Engine

Engine Detail — 357.6 ci / 5.9 L Diesel

Manufacturer	Fiat 8065.25
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	357.6 ci 5.9 L
Bore/Stroke	4.09x4.53 inches 104 x 115 mm
Power	130 hp 96.9 kW
Rated RPM	2500
Oil capacity	16.1 qts 15.2 L

Fiat 130-90 Engine

Transmission

Transmission options
24-speed synchronized
16-speed mechanical shuttle
24-speed partial power shift

Transmission — 24 forward and 8 reverse synchronized

Type	synchronized
Gears	24 forward and 8 reverse
Clutch	hydraulic 356mm cerametallic dry disc
Four gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.

Transmission — 16 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	16 forward and reverse
Clutch	hydraulic 356mm cerametallic dry disc
Four gears in four ranges with mechanical reverser.

Transmission — 24 forward and 8 reverse partial power shift

Type	partial power shift
Gears	24 forward and 8 reverse
Clutch	hydraulic 356mm cerametallic dry disc
Four power-shift gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.

Transmission — 16 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	16 forward and reverse
Clutch	hydraulic 356mm cerametallic dry disc
Four power-shift gears in four ranges with mechanical reverser.

Dimensions

Fiat 130-90 Tires
Ag front	9.00-16 (2WD)
	10.00-16 (2WD)
	11.00-16 (2WD)
	14.9/13-28 (4WD)
Ag rear	18.4/15-38
	23.1/18-34

Dimensions
Wheelbase	105.12 inches 267 cm
Length	164.57 inches 418 cm
Height	114.17 inches 289 cm
Weight	12766 lbs 5790 kg

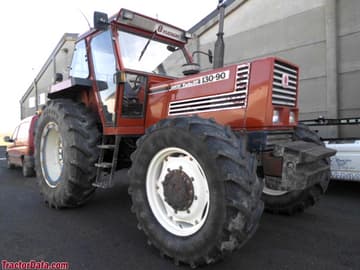

Photos

Davy Haverbeke
