Fiat 500
The Fiat 500 is a tractor produced by Fiat. It is equipped with a 158.16 ci 2.6 L engine. The rated power output is 50 hp 37.3 kW. Transmission: 8 forward and 2 reverse. Operating weight: 4023 to 4961 pounds.
Engine Power
50 hp
37.3 kW
Fuel & Capacities
14.3 gal
54.1 L
Transmission
8 forward and 2 reverse
Operating Weight
4023 to 4961 pounds
Fiat 500 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1971 - 1978 | 1971 - 1978 |
|---|
Production | |
|---|---|
Manufacturer | Fiat |
Fiat 500 Engine | |
|---|---|
Fiat 2.6L 3-cyl diesel | |
Fuel tank | 14.3 gal
54.1 L |
Engine details ...  | |
Fiat 500 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Fiat 500 Power | |
|---|---|
Engine | 50 hp
37.3 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | spur gear |
Differential lock | mechanical rear |
Steering | manual |
Steering | power OptOptional |
Band brakes | |
Open operator station. | |
Hydraulics | |
|---|---|
Pump flow | 6.3 gpm
23.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and draft control |
Rear lift | 3087 lbs
1400 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 75.6 inches
192 cm |
4WD Wheelbase | 76.8 inches
195 cm |
Weight | 4023 to 4961 pounds |
Front tire | 7.50-16 |
2WD Rear tire | 12.4/11-32 |
Full dimensions and tires ...  | |

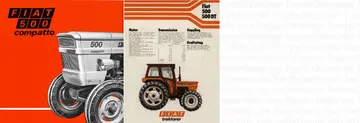

References | |
|---|---|
 | |
500 Compatto published in 1971, by Fiat | |
500 - 500 DT published in 1978, by Fiat |
Engine
Engine Detail — 158.16 ci / 2.6 L Diesel
Manufacturer | Fiat 8035 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 158.16 ci
2.6 L |
Bore/Stroke | 3.94x4.33 inches
100 x 110 mm |
Power | 50 hp
37.3 kW |
Compression | 17:1 |
Rated RPM | 2600 |
Starter volts | 12 |
Transmission

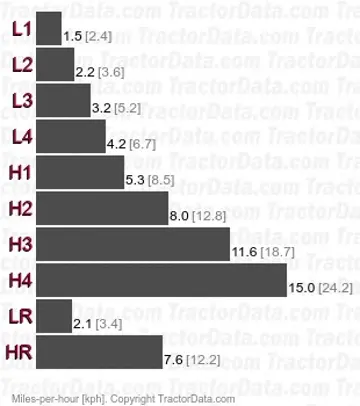

Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
Four gears, plus reverse, in two ranges. | |
 | |
Dimensions
Fiat 500 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-16. Rear: 12.4/11-32 |
4WD Standard tires (ag) | Front: 8.3/8-24. Rear: 12.4/11-32 |
Dimensions | |
|---|---|
2WD Wheelbase | 75.6 inches
192 cm |
4WD Wheelbase | 76.8 inches
195 cm |
2WD Length | 119 inches
302 cm |
4WD Length | 120.7 inches
306 cm |
2WD 55.9 4WD} Height (hood) | 56.3 inches
143 cm |
Height (cab) | 92.3 inches
234 cm |
2WD Weight | 4023 lbs
1824 kg |
4WD Weight | 4961 lbs
2250 kg |
2WD Ground clearance | 20.1 inches
51 cm |
4WD Ground clearance | 12.6 inches
32 cm |
2WD Front tread | 52 to 79.5 inches
132 to 201 cm |
4WD Front tread | 55.1/59.1 inches
139/150 cm |
Rear tread | 48 to 75.6 inches
121 to 192 cm |

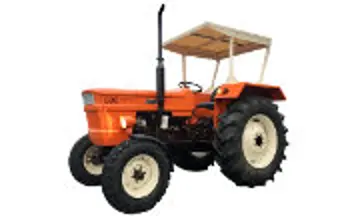

Photos
Fiat 500
Fiat 500 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 500.
Converted Equivalents:
Horsepower (HP)50 hp
Kilowatts (kW)37.3 kW
Metric Horsepower (PS / CV)50.7 PS
