Ford YT-18H 9607482
The Ford YT-18H 9607482 is a tractor produced by Ford Lawn Tractors. It is equipped with a 693 cc 42.33 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: Eaton 850. Operating weight: 800 lbs 362 kg.
Engine Power
18 hp
13.4 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
Eaton 850
Operating Weight
800 lbs
362 kg
Ford Lawn Tractors Ford YT-18H 9607482 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1989 - 1993
Model year 19891990-1993
YT SeriesLawn tractorGilson built |
|---|---|
1989 - 1993 | |
Model year 19891990-1993 | |
YT Series | |
Lawn tractor | |
Gilson built | |
1989 - 1993 | |
|---|---|
Model year 19891990-1993 | |
YT Series | |
Lawn tractor | |
Gilson built |
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Gilson |
Lawn tractor | |
Ford YT-18H Engine | |
|---|---|
18HP Briggs & Stratton 693cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Ford YT-18H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Weight | 800 lbs
362 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
| 1989 - 1993
Model year 19891990-1993
YT SeriesLawn tractorGilson built |
|---|---|
1989 - 1993 | |
Model year 19891990-1993 | |
YT Series | |
Lawn tractor | |
Gilson built | |
1989 - 1993 | |
|---|---|
Model year 19891990-1993 | |
YT Series | |
Lawn tractor | |
Gilson built |
Engine Detail — 693 cc / 42.33 ci Gasoline
Manufacturer | Briggs & Stratton 422777 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft opposed-twin |
Displacement | 693 cc
42.33 ci |
Bore/Stroke | 3.44x2.28 inches
87 x 58 mm |
Power (gross) | 18 hp
13.4 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Transmission
| 1989 - 1993
Model year 19891990-1993
YT SeriesLawn tractorGilson built |
|---|---|
1989 - 1993 | |
Model year 19891990-1993 | |
YT Series | |
Lawn tractor | |
Gilson built | |
1989 - 1993 | |
|---|---|
Model year 19891990-1993 | |
YT Series | |
Lawn tractor | |
Gilson built |
Transmission — Eaton 850
Transmission | Eaton 850 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Dimensions
| 1989 - 1993
Model year 19891990-1993
YT SeriesLawn tractorGilson built |
|---|---|
1989 - 1993 | |
Model year 19891990-1993 | |
YT Series | |
Lawn tractor | |
Gilson built | |
1989 - 1993 | |
|---|---|
Model year 19891990-1993 | |
YT Series | |
Lawn tractor | |
Gilson built |
Ford YT-18H Tires |
|---|
Dimensions | |
|---|---|
Shipping weight | 800 lbs
362 kg |
Attachments
| 1989 - 1993
Model year 19891990-1993
YT SeriesLawn tractorGilson built |
|---|---|
1989 - 1993 | |
Model year 19891990-1993 | |
YT Series | |
Lawn tractor | |
Gilson built | |
1989 - 1993 | |
|---|---|
Model year 19891990-1993 | |
YT Series | |
Lawn tractor | |
Gilson built |
48" Mower deck | |
|---|---|
Type | mid-mount Ford |
Cutting width | 48 inches
121 cm |
Photos

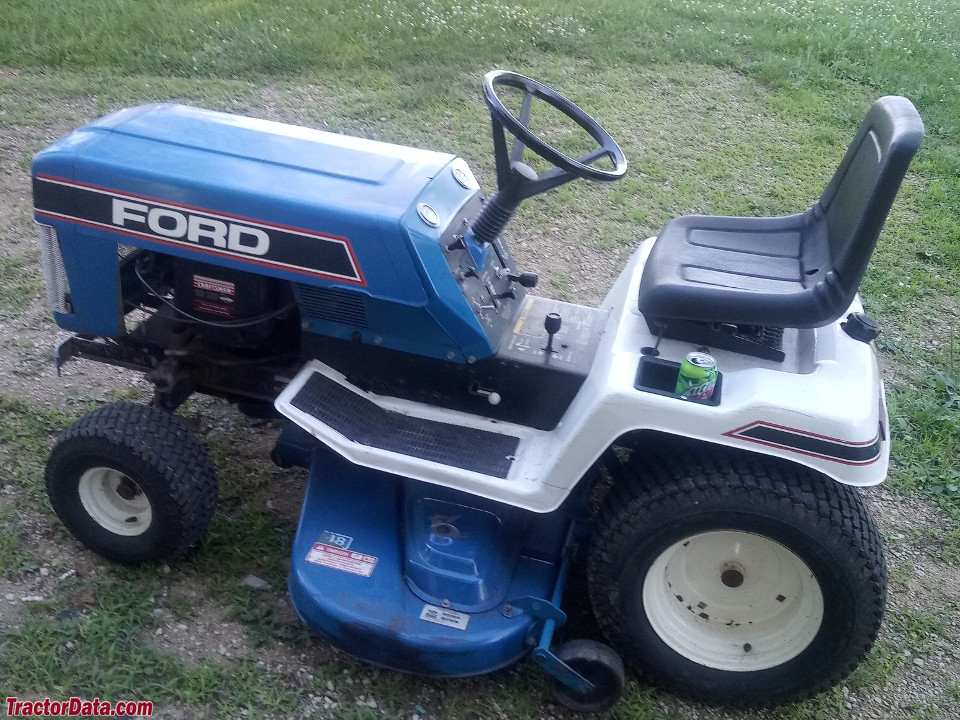

Ford YT-18H 9607482
Ford YT-18H 9607482
