Ford GT-75
The Ford GT-75 is a tractor produced by Ford Lawn Tractors. It is equipped with a 675 cc 41.2 ci engine. The listed engine power is Diesel (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1050 lbs 476 kg.
Engine Power
Diesel (gross): 16 hp / 11.9 kW
Fuel & Capacities
4.2 gal
15.9 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
1050 lbs
476 kg
Overview
 | 1992 - 1997
GT SeriesGarden tractorShibaura built
GT Series
Garden tractor
Shibaura built |
|---|
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Shibaura |
Garden tractor | |
Ford GT-75 Engine | |
|---|---|
16HP Shibaura 675cc 3-cyl diesel | |
Fuel tank | 4.2 gal
15.9 L |
Engine details ...  | |
Ford GT-75 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Steering | power OptOptional |
Disc brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | optional |
Mid PTO | independent |
Clutch | manual idler pulley |
Front PTO | independent |
Clutch | manual idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.8 inches
126 cm |
Weight | 1050 lbs
476 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery CCA | 332 |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn & Garden Tractors published in 1991, by Ford | |
Lawn & Garden Tractors published in 1995, by Ford | |
Service Manual GT Series (40006540) published in 1994 |
Engine
Engine Detail — 675 cc / 41.2 ci Diesel
Manufacturer | Shibaura E673 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled horizontal-shaft inline |
Displacement | 675 cc
41.2 ci |
Bore/Stroke | 2.64x2.52 inches
67 x 64 mm |
Power (gross) | 16 hp
11.9 kW |
Air cleaner | dry |
Pre-heating | glow plugs |
block heater OptOptional | |
Compression | 24:1 |
Rated RPM | 3200 |
Idle RPM | 1400-3200 |
Firing order | 1-2-3 |
Starter volts | 12 |
Oil capacity | 3.2 qts
3.0 L |
Coolant capacity | 3.5 qts
3.3 L |
Transmission
Transmission — infinite forward and reverse (2-range) shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 9.1 qts
8.6 L |
10.1 qts*Capacity with power steering.
9.6 L | |
 | |
Dimensions
Ford GT-75 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 49.8 inches
126 cm |
Length | 74.5 inches
189 cm |
Width | 39 inches
99 cm |
Height (steering wheel) | 45 inches
114 cm |
Shipping weight | 1050 lbs
476 kg |
Ground clearance | 6.2 inches
15 cm |
Attachments
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
48" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |

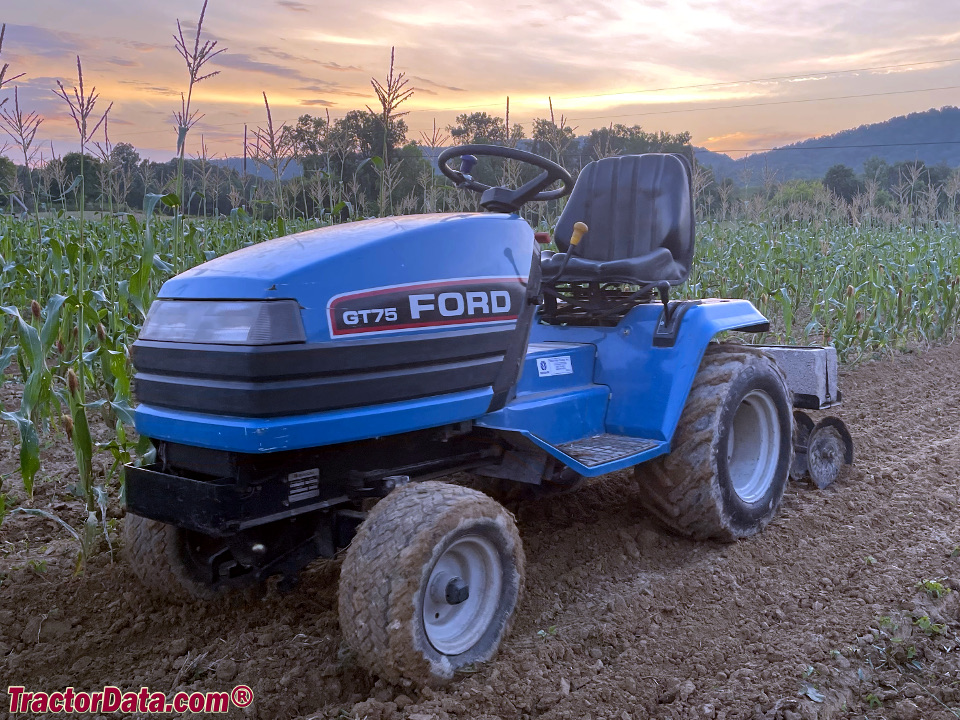

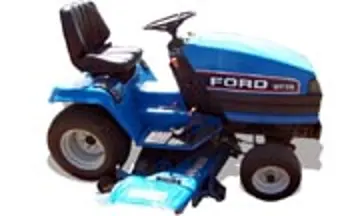

Photos
Ford GT-75
Recommended Implements & Sizing Guide
Engineering recommendations for Ford Lawn Tractors Ford GT-75 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ford Lawn Tractors Ford GT-75.
Estimated Continuous Field Runtime: 5 hrs
Approximately 5 hours of continuous field operation at ~75% rated power on a full tank (4.2 gal / 15.9 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ford Lawn Tractors Ford GT-75 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ford Lawn Tractors Ford GT-75.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
Direct Competitor Comparison
Compare Ford GT-75 against same-era industry alternatives in the same horsepower class.
Current Model
Ford Lawn Tractors
Ford GT-75
Engine Power:Diesel (gross): 16 hp / 11.9 kW
★ Baseline Reference
